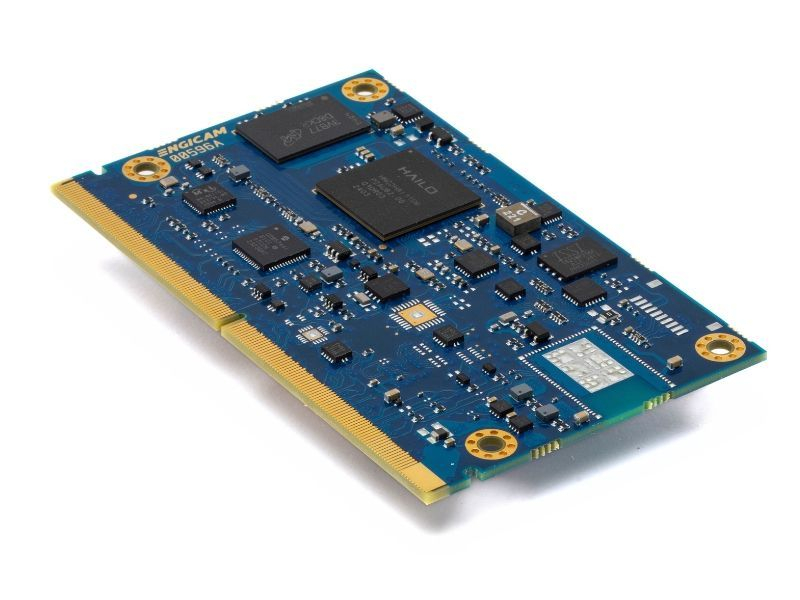

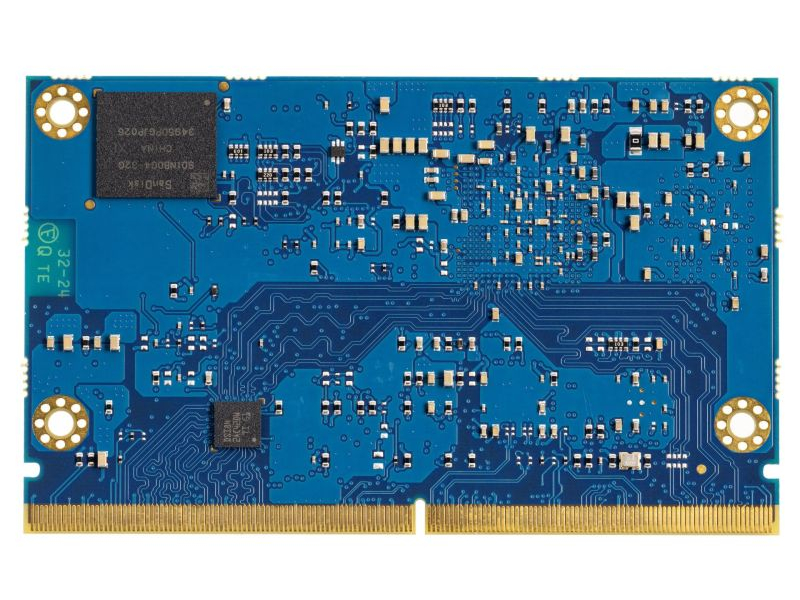

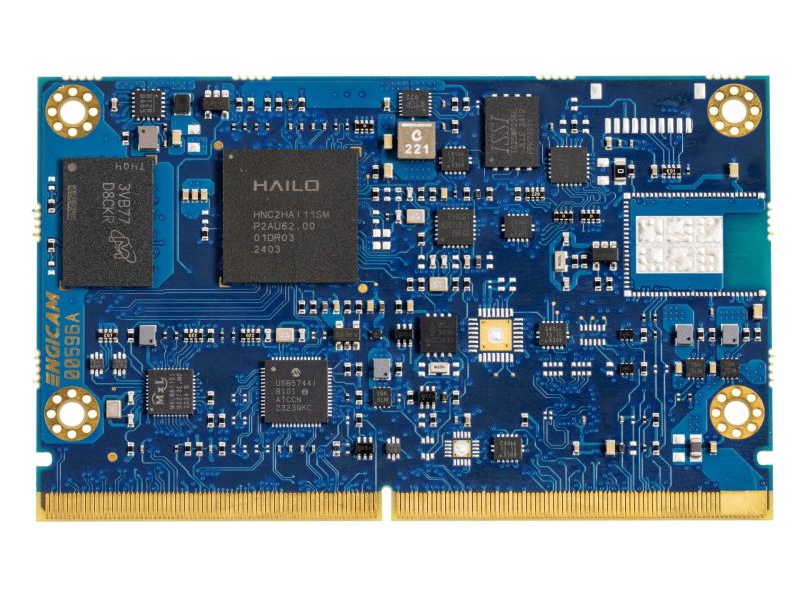

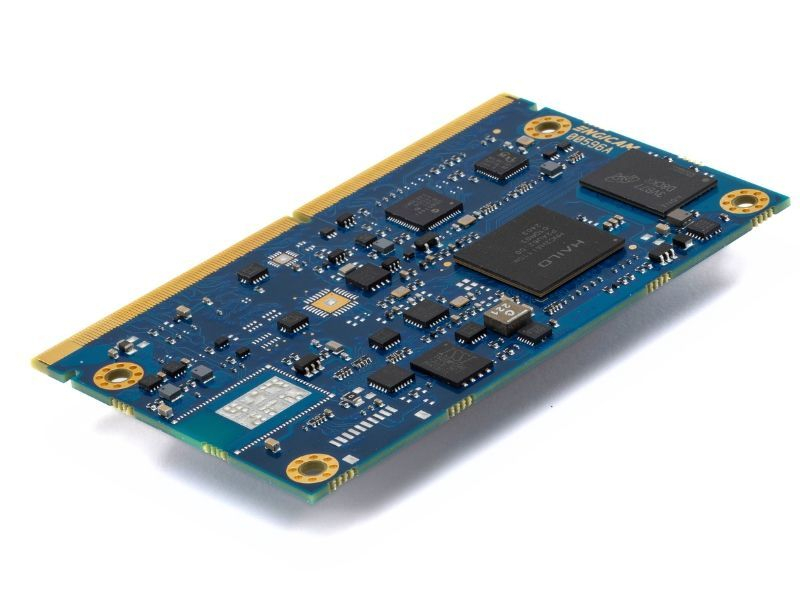

SmarCore Hailo-15
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | HAILO-15 ™ |
|---|---|
| CPU #2 | Manufacturer: Hailo Technologies |
| CPU #3 | NPU: ja |
| Cores | ARM |
| Cores #2 | Quad-core ARM-A53@1.3 GHz2x Cortex M4@200 MHz |
| Memory | LPDDR4@4266MTs |
| Memory #2 | 2GB up to 4GB |
| Graphics & AI | Up to 20 TOPS (Tera Operations Per Second) running on a powerful Neural Network (NN) Core DSI to LVDS 18/24 bit up to Full HD DSI-TX:1 x 4 lanes, 2.5 Gbps each2 x MIPI-CSI - 2-4 lanes |
| Video Processing Unit Capabilities | HEVC& AVC h.265/h.264 4K30 enc |
| Mass Storage | Starting from 8GB eMMC |
| Networking | 1x 1Gb Ethernet |
| USB | 4x USB2 |
| USB #2 | 4x USB3 |
| PCIe | 2 |
| PCIe #2 | PCIe interface Gen3/1-lane |
| Audio | I2S |
| Peripheral Interfaces | SPI, I2C, Serials, PCIe, GPIOs, JTAG (optional) |
| Power Supply | single 5V |
| Operating Temperature | -40° up to 85° |
| Dimensions | 82 x 50 mm |
| Product availability | 2036 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Smarcore_HAILO-15_Flyer.pdf | 283.47 KB | download – Smarcore_HAILO-15_Flyer.pdf |
