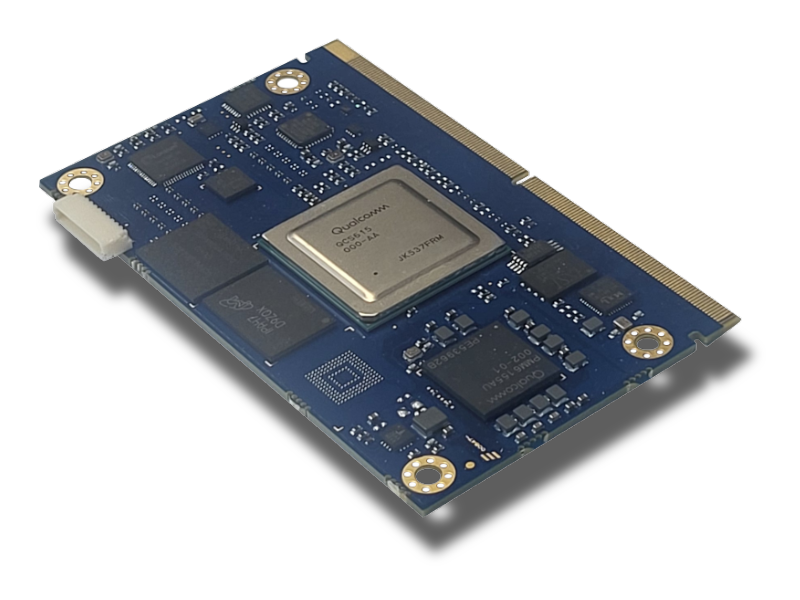

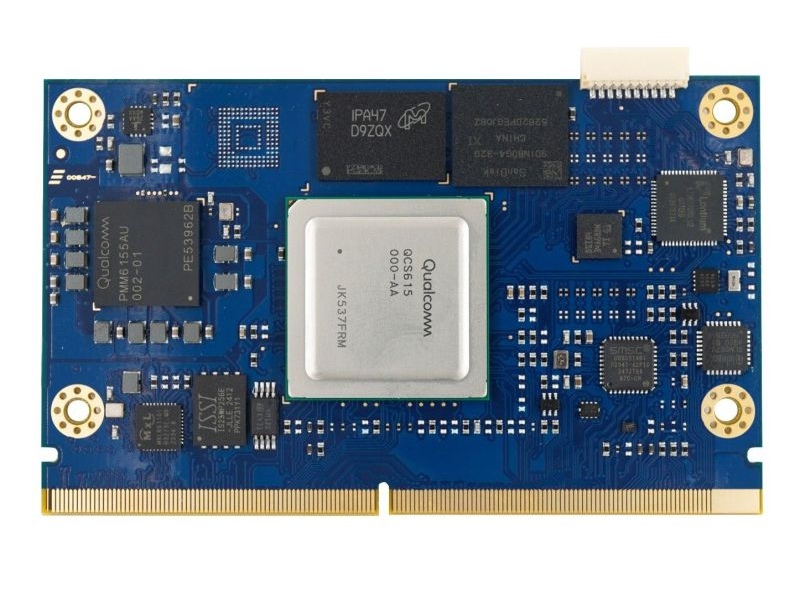

SmarCore iQ6
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | Dragonwing™ IQ-615 |
|---|---|
| CPU #2 | Manufacturer: Qualcomm |
| CPU #3 | VPU: ja |
| CPU #4 | GPU: ja |
| Cores | ARM |
| Cores #2 | 2x Kryo Gold @1.9 GHz6x Kryo Silver @1.6 GHz |
| Memory | LPDDR4X@3110MTs |
| Memory #2 | up to 8GB |
| Graphics & AI | Adreno GPU OpenGL ® ES 3.2 Vulkan ® DirectX 12 OpenCL 2.0 |
| Video Processing Unit Capabilities | Up to 4K60 H.265/H.264/VP9/ VP8/ MPEG-2 decoder Up to 1080p60 H.265/H.264/ VP8 encoder |
| Mass Storage | Starting from 8GB eMMC drive soldered on-board |
| Networking | 1x 1Gb Ethernet |
| USB | 4x USB2 |
| USB #2 | 1x USB3 |
| PCIe | 1 |
| PCIe #2 | PCIe interface Gen2/1-lane |
| Audio | 3x I2S interfaces |
| Peripheral Interfaces | UART, SPI, I2C, GPIOs |
| Power Supply | single 5V |
| Operating Temperature | -40° up to 85° |
| Dimensions | 82 x 50 mm |
| Product availability | 2038 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Smarcore_iQ6_Flyer.pdf | 289.58 KB | download – Smarcore_iQ6_Flyer.pdf |
