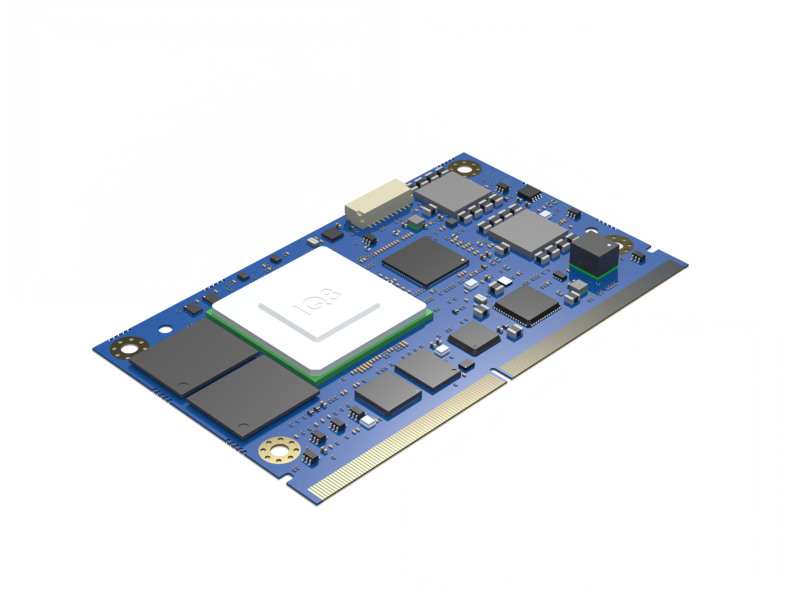

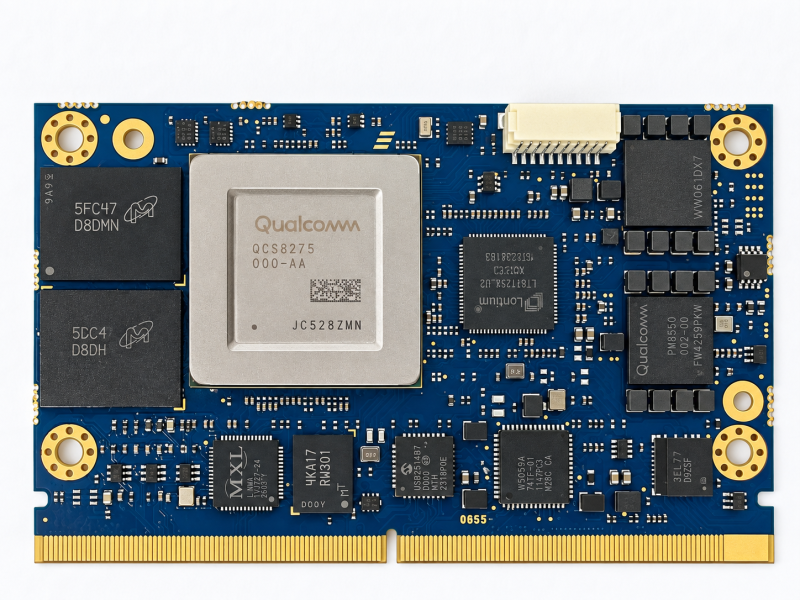

SmarCore iQ8
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | Dragonwing™ IQ-8275 |
|---|---|
| CPU #2 | Manufacturer: Qualcomm |
| CPU #3 | NPU: ja |
| CPU #4 | VPU: ja |
| CPU #5 | GPU: ja |
| Cores | ARM |
| Cores #2 | 2x Kryo Gold Prime @ 2.35 GHz2x Kryo Gold @ 2.1 GHz4x Kryo Silver @ 1.95 GHz MCU-like Subsystem (4x real-time cores @ 1.85 GHz) |
| Memory | LPDDR5X@6400MTs |
| Memory #2 | up to 32GB |
| Graphics & AI | - Qualcomm® Hexagon 40 TOPS (dense) NPU -Adreno 623 GPU OpenGL ® ES 3.2 Vulkan ® OpenCL 2.0 |
| Video Processing Unit Capabilities | Up to 4K135 AV1, HEVC, H.264/H.265/VP9/ MPEG-2 decoder Up to 4K85 HEVC, H.265/H.264 encoder |
| Mass Storage | Starting from 8GB eMMC drive soldered on-board UFS3.1 option |
| Networking | 1x 1Gb Ethernet |
| Networking #2 | 1x 2.5 Gb Ethernet |
| USB | 1x OTG |
| USB #2 | 4x USB2 |
| USB #3 | 1x USB3 |
| PCIe | 2 |
| PCIe #2 | PCIe interface Gen4/up to 4-lane |
| Audio | 2x I2S interfaces |
| Peripheral Interfaces | UART,CAN, SPI, I2C, GPIOs, RGMII |
| Power Supply | single 5V |
| Operating Temperature | -40° up to 85° |
| Dimensions | 82 x 50 mm |
| Product availability | 2038 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Smarcore_iQ8_Flyer.pdf | 279.47 KB | download – Smarcore_iQ8_Flyer.pdf |
