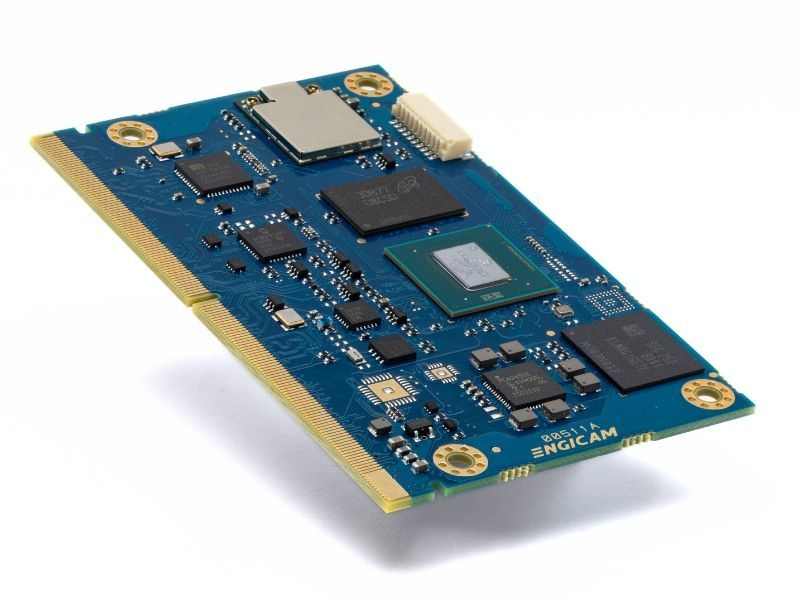

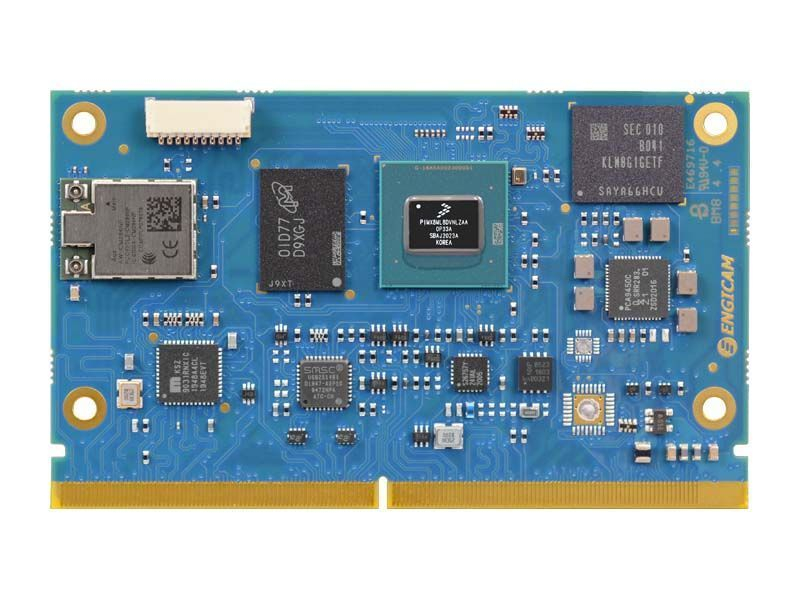

SmarCore MX8MPlus
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | i.MX 8M Plus |
|---|---|
| CPU #2 | Manufacturer: NXP |
| CPU #3 | NPU: ja |
| CPU #4 | VPU: ja |
| CPU #5 | GPU: ja |
| Cores | ARM |
| Cores #2 | Quad Arm® Cortex®-A53 @ up to 1.8GHz processor with a (NPU) up to 2.3 TOPS and Cortex®-M7 CPU @ 800 MHz |
| Memory | LPDDR4@3600MTs |
| Memory #2 | 2GB up to 4GB |
| Graphics & AI | Neural Processing Unit (NPU): Delivers up to 2.3 TOPS 3D GPU GC7000UL (2 shaders), OpenGL ES 2.0/3.0/3.1, Vulkan, OpenCL 1.2 2D GPU GC520L |
| Video Processing Unit Capabilities | 1080p60 HEVC (h.265, VP9, VP8) dec; 1080p60 HEVC (h.265) enc |
| Mass Storage | Starting from 8GB eMMC drive soldered on-board |
| Networking | 2x 1Gb Ethernet |
| USB | 4x USB2 |
| USB #2 | 2x USB3 |
| PCIe | 1 |
| PCIe #2 | PCIe interface Gen3/1-lane |
| Audio | I2S Interface |
| Peripheral Interfaces | UART, I2C, JTAG, CAN, SDIO, SPI, GPIOs |
| Power Supply | single 5V |
| Operating Temperature | -40° up to 85° |
| Dimensions | 82 x 50 mm |
| Product availability | 2036 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Smarcore_MX8MPlus_Flyer.pdf | 246.52 KB | download – Smarcore_MX8MPlus_Flyer.pdf |
