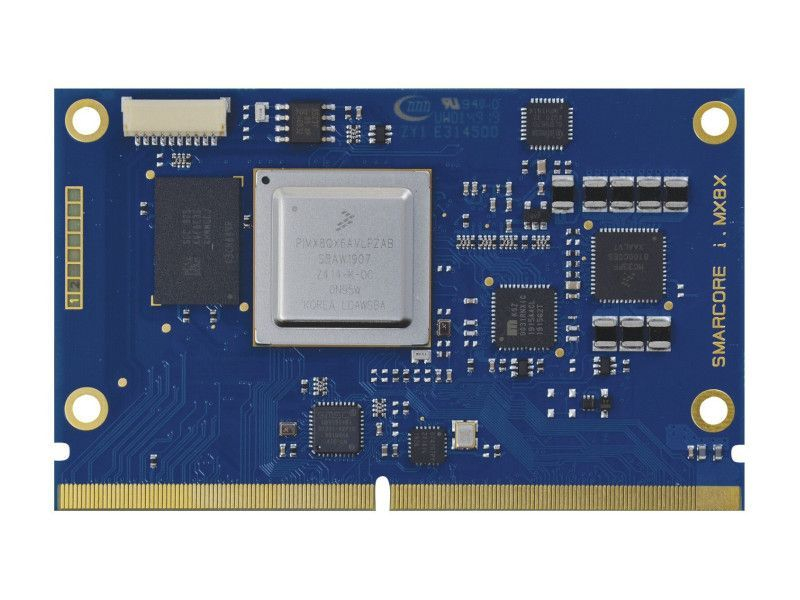

SmarCore MX8X
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | i.MX8X |
|---|---|
| CPU #2 | Manufacturer: NXP |
| CPU #3 | VPU: ja |
| CPU #4 | GPU: ja |
| Cores | ARM |
| Cores #2 | Up to4 x Cortex-A35@1.2GHz & Cortex-M4F@266MHz |
| Memory | LPDDR4@2400MTs |
| Memory #2 | 2GB up to 4GB |
| Graphics & AI | 1 x 2- or 4-Shader, OpenGL ES 3.0 or 3.1 Vulkan® VX Extensions |
| Video Processing Unit Capabilities | 4Kp30 (h.265, h.264, VP8) dec; 1080p60 (h.264, VP8) enc |
| Mass Storage | 4GB eMMC expandible to 32 GB |
| Networking | 2x 1Gb Ethernet |
| USB | 1x OTG |
| USB #2 | 1x USB2 |
| USB #3 | 1x USB3 |
| PCIe | 1 |
| PCIe #2 | PCIe 3.0 1 lane |
| Audio | I2S interface |
| Peripheral Interfaces | UART I2C 3xCAN/CAN FD SDIO SPI GPIO ADC TPM 2.0 option available |
| Power Supply | single 5V |
| Operating Temperature | -40° up to 85° |
| Dimensions | 82 x 50 mm |
| Product availability | 2035 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Smarcore_MX8X__Flyer.pdf | 277.60 KB | download – Smarcore_MX8X__Flyer.pdf |
