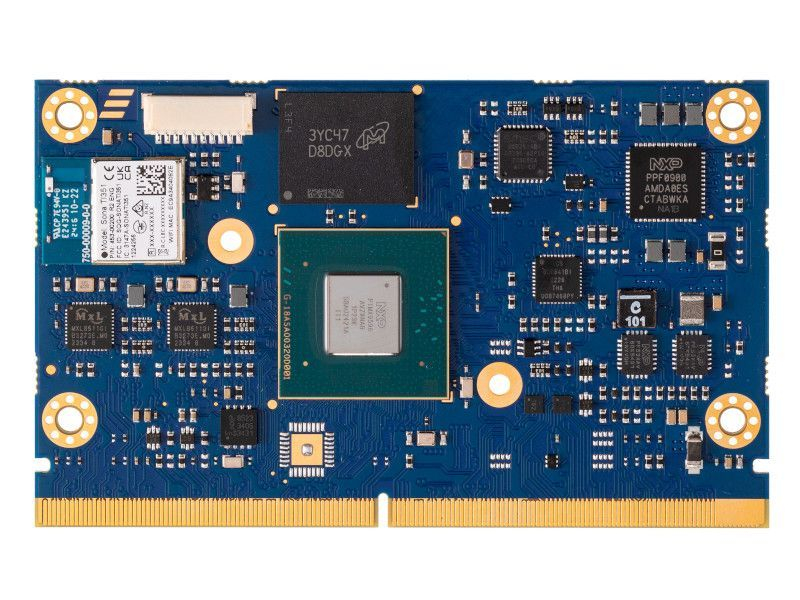

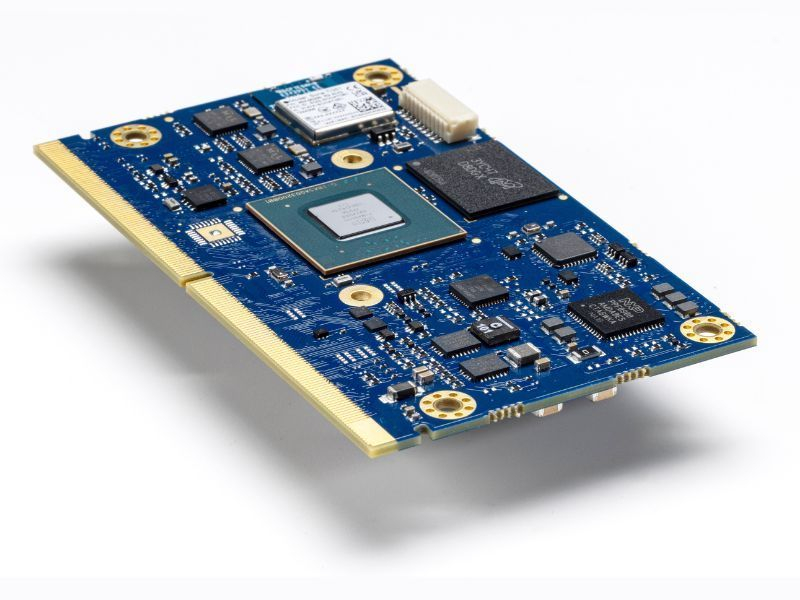

SmarCore MX95
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | i.MX95 |
|---|---|
| CPU #2 | Manufacturer: NXP |
| CPU #3 | NPU: ja |
| CPU #4 | VPU: ja |
| CPU #5 | GPU: ja |
| Cores | ARM |
| Cores #2 | 6x Arm Cortex-A551x Arm Cortex-M71x Arm Cortex-M33 |
| Memory | LPDDR5@6400MTs |
| Memory #2 | 4GB up to 16GB |
| Graphics & AI | NXP eIQ® Neutron 2.0 TOPS NPU Arm Mali-G310 3D GPU supporting 50 GFLOPs FP32 OpenGL ® ES 3.2 Vulkan ® 1.3 OpenCL 3.0 |
| Video Processing Unit Capabilities | 4Kp60 H.265/H.264 decode or encode,1x JPEG Encoder,1x JPEG Decoder |
| Mass Storage | Starting from 4GB eMMC drive soldered on-board |
| Networking | 2x 1Gb Ethernet |
| Networking #2 | 1x 10 Gb Ethernet |
| USB | 5x USB2 |
| USB #2 | 1x USB3 |
| PCIe | 2 |
| PCIe #2 | PCIe interface Gen3/1-lane |
| Audio | I2S interface, SAI Interface |
| Peripheral Interfaces | UART, LPSPI, I2C, CAN Bus, GPIOs,1x 10 Gb SGMII |
| Power Supply | single 5V |
| Operating Temperature | -40° up to 85° |
| Dimensions | 82 x 50 mm |
| Product availability | 2039 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Smarcore_MX95_Flyer.pdf | 343.46 KB | download – Smarcore_MX95_Flyer.pdf |
