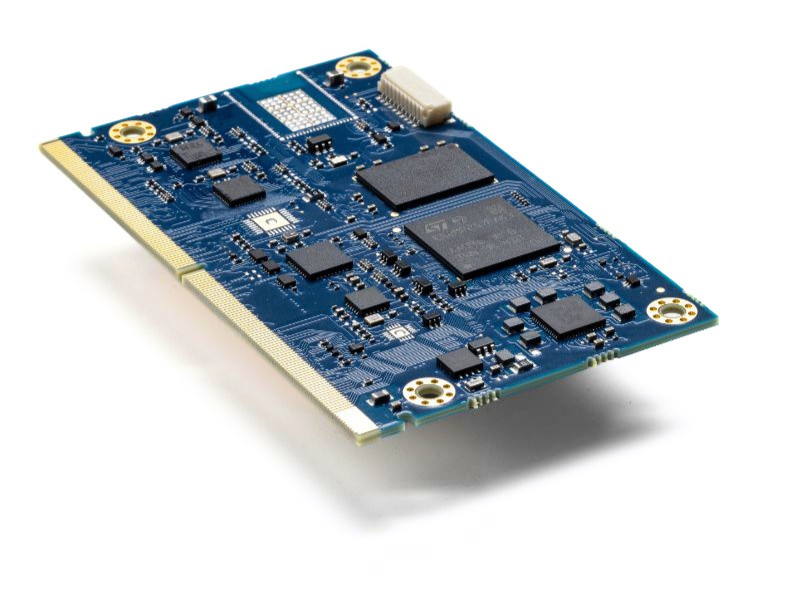

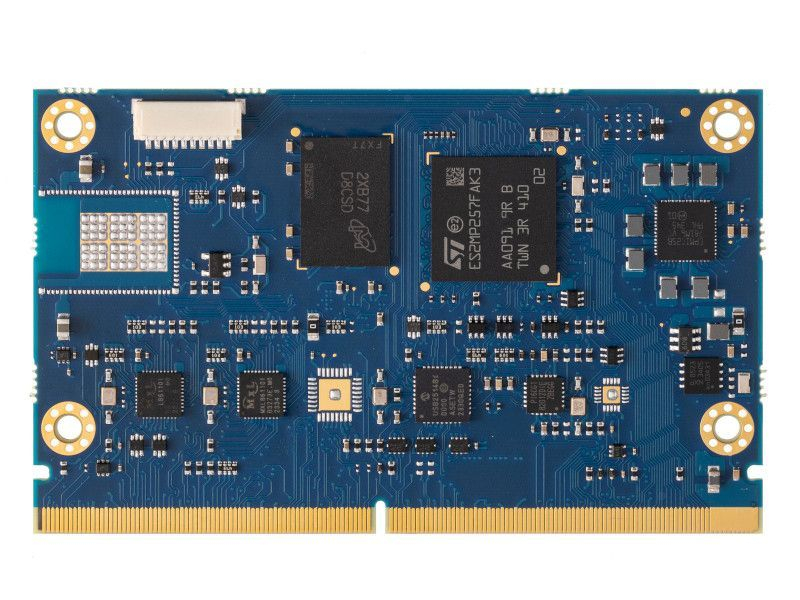

SmarCore STM32MP2
Interactive view and technical overview of the product.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | STM32MP2x |
|---|---|
| CPU #2 | Manufacturer: ST |
| CPU #3 | NPU: ja |
| CPU #4 | VPU: ja |
| CPU #5 | GPU: ja |
| Cores | ARM |
| Cores #2 | Single or dual core Arm® Cortex-A35 @ 1.5 GHz and Arm® Cortex-M33@400MHz |
| Memory | LPDDR4@2400MTs |
| Memory #2 | 2GB up to 4GB |
| Graphics & AI | 1.35 TOPS NPU 3D GPU and NPU: VeriSilicon® GC8000UL Up to 900 MHz TensorFlowLite - ONNX - Linux NN OpenGL® ES 3.2.8 – Vulkan 1.2 OpenCL™ 3.0, OpenVX™ 1.3 Up to 150 Mtriangle/s, 900 Mpixel/s |
| Video Processing Unit Capabilities | • 1080p60 HEVC (h.264, VP8) dec • 1080p60 HEVC (h.264, VP8) enc |
| Mass Storage | Starting from 8GB eMMC drive soldered on-board |
| Networking | 2x 1Gb Ethernet |
| USB | 4x USB2 |
| USB #2 | 1x USB3 |
| PCIe | 1 |
| PCIe #2 | PCIe interface Gen3/1-lane |
| Audio | I2S Interface |
| Peripheral Interfaces | Serial, I2C, SPI, CAN Bus, PWM, SDIO i/f, JTAG i/f, PCIe, GPIOs |
| Power Supply | single 5V |
| Operating Temperature | -25° up to 85° |
| Dimensions | 82 x 50 mm |
| Product availability | 2036 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| SmarCore_STM32MP2_Flyer.pdf | 311.89 KB | download – SmarCore_STM32MP2_Flyer.pdf |
