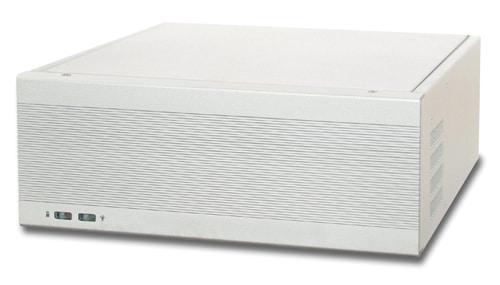

WADE-2221A
Rugged and Stylish Industrial Mini-ITX Bare Bone Chassis
- Integrated with various Mini-ITX board
- One PCI expansion slot
- Tool-free mechanism to open the top cover
- Rugged and stylish design
- Quick 2.5” HDD installation by releasing the top cover
- Two side-by-side units to form two systems in 2U rackmount form factor
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Input Voltage | 90V ~ 264V AC, full range |
|---|---|
| Input Frequency | 47 ~ 63 Hz |
| Input Current | 6A@115V, 3A@230V |
| Efficiency | >75% |
| Holdup Time | 16ms. at full load@25 °C |
| Over Voltage Protection | +5V@5.5 ~ 6.82V; +3.3@3.5 ~ 4.8V; +12V@13.4 ~ 15.6V |
| Over Power/Load Protection | Output power over to 110% ~ 150% |
| MTBF | >130,000 hrs |
| EMI & Safety Approval | UL, TUV, BSMI, NEMCO, FCC, CE |
| Temperature/Humidity Operating: | 0 ~ 40 °C, 20 ~ 90%RH Storage: -20 ~ 60 °C, 5 ~ 95%RH |
| Dimension (WxDxH) | 81.5 x150 x 40.5 mm; 3.2” x 5.9” x 1.6” |
| Operation Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 80 °C |
| Relative Humidity | 5 ~ 95% non-condensing |
| Dimension | 251 x 221.8 x 86.3 (mm) |
| Weight | 2.2Kg |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| WADE-2221A-150X | Rugged and stylish industrial Mini-ITX Bare-bones Chassis with 150W active PFC PSU | add to list – WADE-2221A-150X | |
| WADE-2221A-180X | Rugged and stylish industrial Mini-ITX Bare-bones Chassis with 180W active PFC PSU | add to list – WADE-2221A-180X |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| WADE-2221A | Datasheet | 592.45 KB | download – WADE-2221A | Datasheet |
