- Portwell

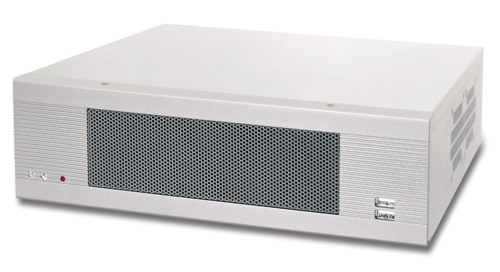

WADE-2231Q
Rugged and Stylish Industrial MiniITX Bare- Bones Chassis
- Bare-bones Chassis for Mini-ITX board
- Tool-free mechanism to open the top cover
- Rugged and stylish design
- Quick 3.5” HDD installation by releasing the top cover
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Input Voltage | 90V ~ 264V AC, full range |
|---|---|
| Input Frequency | 47 ~ 63 Hz |
| Input Current | 6A@115V, 3A@230V |
| Efficiency | >75% |
| Holdup Time | 16ms. at full load@25 °C |
| Over Voltage Protection | +5V@5.5 ~ 6.82V; +3.3@3.5 ~ 4.8V; +12V@13.4 ~ 15.6V |
| Over Power/Load Protection | Output power over to 110% ~ 150% |
| MTBF | >130,000 hrs |
| EMI & Safety Approval | UL, TUV, BSMI, NEMCO, FCC, CE |
| Temperature/Humidity Operating: | 0 ~ 40 °C, 20 ~ 90%RH Storage: -20 ~ 60 °C, 5 ~ 95%RH |
| Dimension (WxDxH) | 81.5 x150 x 40.5 mm; 3.2” x 5.9” x 1.6” |
| Operation Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 80 °C |
| Relative Humidity | 5 ~ 95% non-condensing |
| Dimension | 310 x252 x 86.3 (mm) |
| Weight | 3.0Kg |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| WADE-2231Q-4410R-180X | Rugged and stylish industrial Mini-ITX Bare-bones Chassis with PER-4410R, PCI-E x16 riser card & 180W PSU | add to list – WADE-2231Q-4410R-180X | |
| WADE-2231Q-518R-180X | Rugged and stylish industrial Mini-ITX Bare-bones Chassis with PEP-581R, 1 slot PCI riser card & 180W PSU | add to list – WADE-2231Q-518R-180X |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| WADE-2231Q | Datasheet | 722.37 KB | download – WADE-2231Q | Datasheet |
