WADE-2232Q

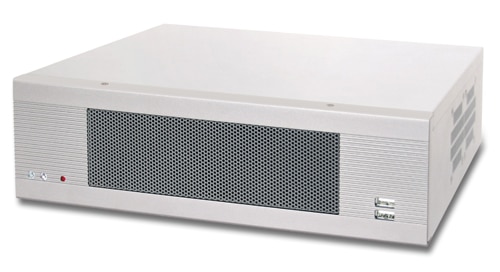

Rugged and Stylish Industrial Mini-ITX WADE-2232Q Bare-Bones Chassis
- Bare-bones Chassis for Mini-ITX board
- Tool-free mechanism to open the top cover
- Rugged and stylish design
- Quick 3.5” HDD installation by releasing the top cover
- Two expansion slots
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Input Voltage | 90V ~ 264V AC, full range |
|---|---|
| Input Frequency | 47 ~ 63 Hz |
| Input Current | 5A@115V, 3A@230V |
| Efficiency | >80% |
| Holdup Time | 17ms. at full load@25 °C |
| Over Voltage Protection | +5V@5.5 ~ 6.82V; +3.3@3.5 ~ 4.8V; +12V@13.4 ~ 15.6V |
| Over Power/Load Protection | Output power over to 110% ~ 140% |
| MTBF | 100,000 hrs |
| EMI & Safety Approval | UL, TUV, CE, FCC, CB, CSA, SEMKO, FIMKO, NEMCO, DIMCO |
| Temperature/Humidity Operating: | 0 ~ 50 °C, 20 ~ 85%RH |
| Storage: | -20 ~ 80 °C, 10m ~ 90%RH |
| Dimension (WxDxH) | 150 x 81.5 x 40.5 mm; 5.9” x 3.2” x 1.6” |
| Operation Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 80 °C |
| Relative Humidity | 5 ~ 95% non-condensing |
| Dimension | 310 x252 x 109 (mm) |
| Weight | 3.5 Kg |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| WADE-2232Q-582R-220X | Rugged and stylish industrial Mini-ITX Bare-bones Chassis with PEP-582R, 2 slots PCI, riser card & 220W PSU | add to list – WADE-2232Q-582R-220X | |
| WADE-2232Q-592R-220X | Rugged and stylish industrial Mini-ITX Bare-bones Chassis with PEP-592R, 2 slots (PCI-E x1, PCI x1) | add to list – WADE-2232Q-592R-220X |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| WADE-2232Q | Datasheet | 1.17 MB | download – WADE-2232Q | Datasheet |
