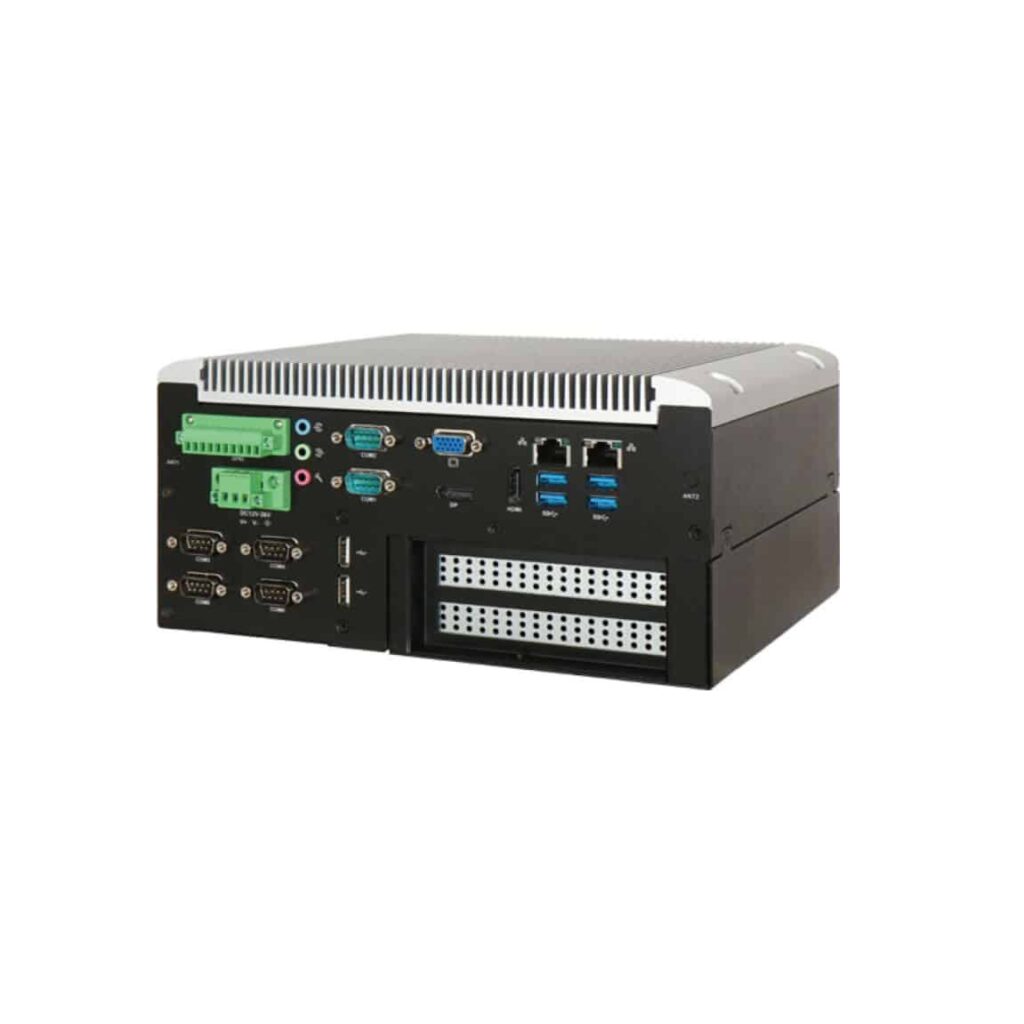

WEBS-35C3
Embedded Rugged Fan-less System with Intel® 6th Skylake-S Core™ i3/i5/i7 based Mini-ITX Board
- Intel ® Core™ i High performance Fan-less Embedded Box PC
- 6 th generation Intel ® Skylake-S Core™ i3/i5/i7 Desktop processor (Quad-Core CPU supported)
- Dual UB-DIMM DDR4 up to 32GB
- 2x 2.5” SATA HDD/SSD, 1x mSATA
- Rich I/O is good for versatile applications
- 1x M.2 socket, 1x Full-size Mini-PCIe socket
- Different add-on card expansion options
- Innovative PCI/PCIe expansion module is easy for add-on cards installation and replacement
- Rugged design is good for using in harsh environment
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| M/B | WADE-8017 |
|---|---|
| Form Factor | Mini-ITX System |
| CPU | Intel ® 6th Gerenation Desktop Core™ Processor |
| Chipset | Q170 |
| BIOS | AMI UEFI |
| Memory | DDR4/32GB |
| Graphic Controller | Intel ® Gen 9 Graphics |
| Audio Codec | ALC892 |
| Super I/O | EC ITE IT8528 + Fintek F81216 |
| Storage | 2x 2.5” SATA HDD/SSD1x mSATA External I/O |
| Serial | 4x RS-2322x RS-232/422/485 |
| USB | 2x USB2.04x USB3.0 |
| Display | VGA, DP, HDMI ® |
| Ethernet | Intel ® I219LM + I210AT |
| PS/2 | N/A |
| Audio | Line-in, Line-out, Mic-in |
| D I/O | 8-bit Digital I/O |
| Expansion | 1x Full-size Mini-PCIe1x M.2 (Type E) Multi PCIe+PCI options PWR |
| System | DC 12V ~ 36V Environment |
| OP Temp. | -20 °C ~ 50 °C |
| Humidity | 95%@40 °C, non-condensing |
| Vibratoin | 5Grms/10-500Hz |
| Shock | 50G, 11 msec Mechanical |
| Storage Temp. | -40 °C ~ 80 °C |
| Dimension(WxDxH) | 253 x201 x 123 mm |
| Weight | 7 Kg |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AS5-3459 | WEBS-35C3 ATO | (x4 type).Embedded rugged fan-less system with Intel ® Skylake-S Core i3/i5/i7 based MINI-ITX system. | add to list – WEBS-35C3 |
| AS5-3463 | WEBS-35C3 ATO | (x16 type).Embedded rugged fan-less system with Intel ® Skylake-S Core i3/i5/i7 based MINI-ITX system | add to list – WEBS-35C3 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| WEBS-35C3 | Datasheet | 1.83 MB | download – WEBS-35C3 | Datasheet |
