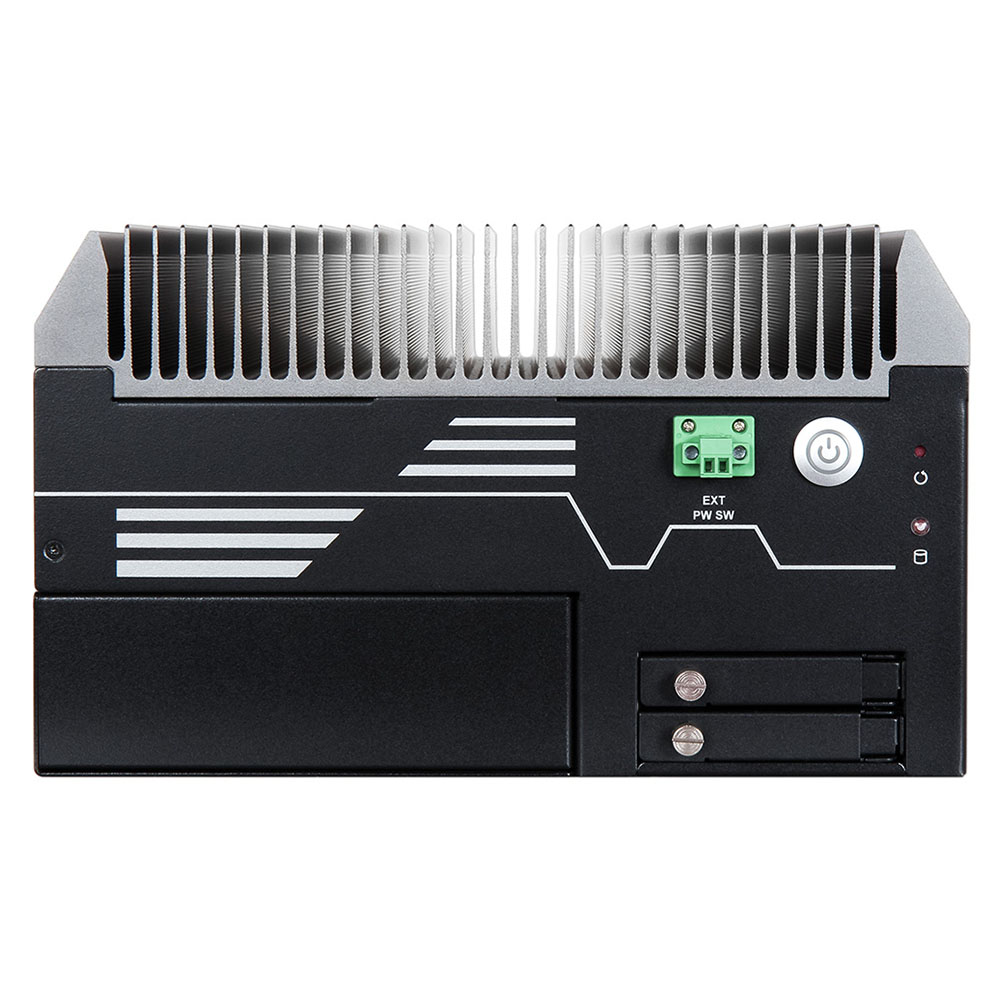

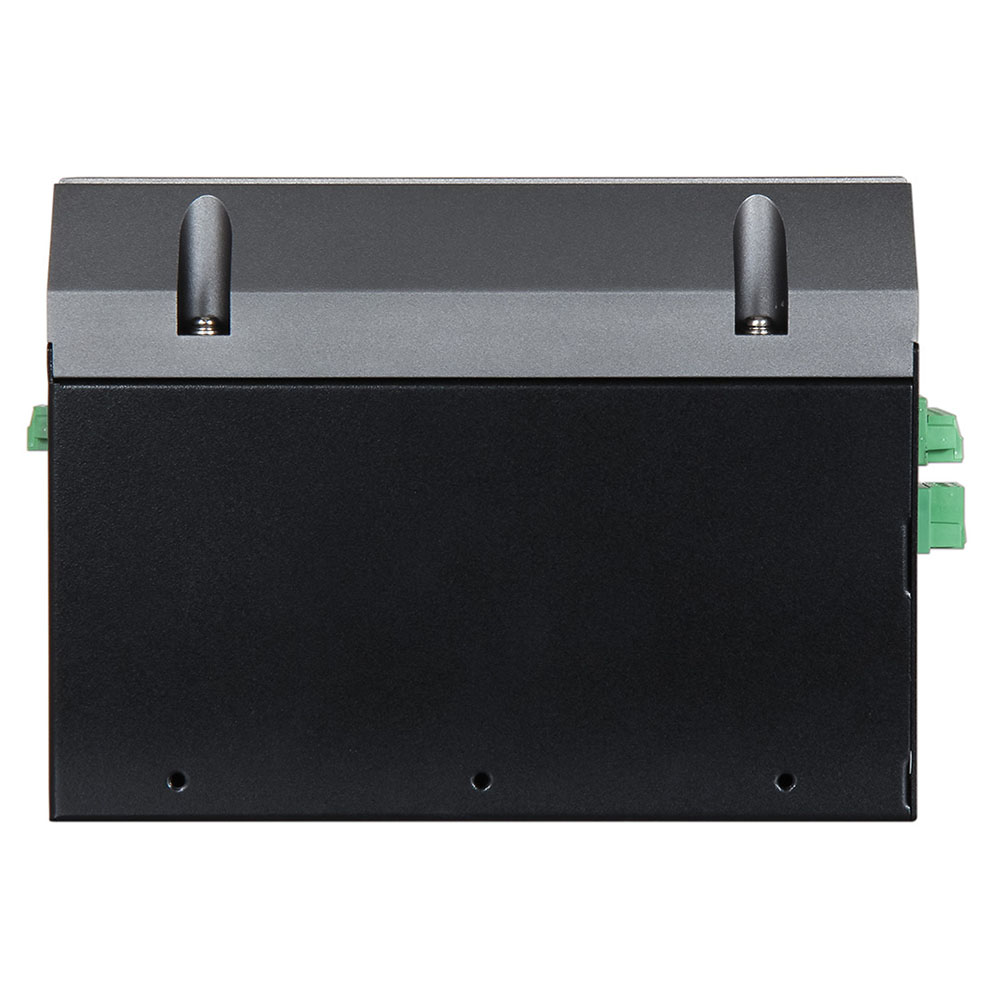

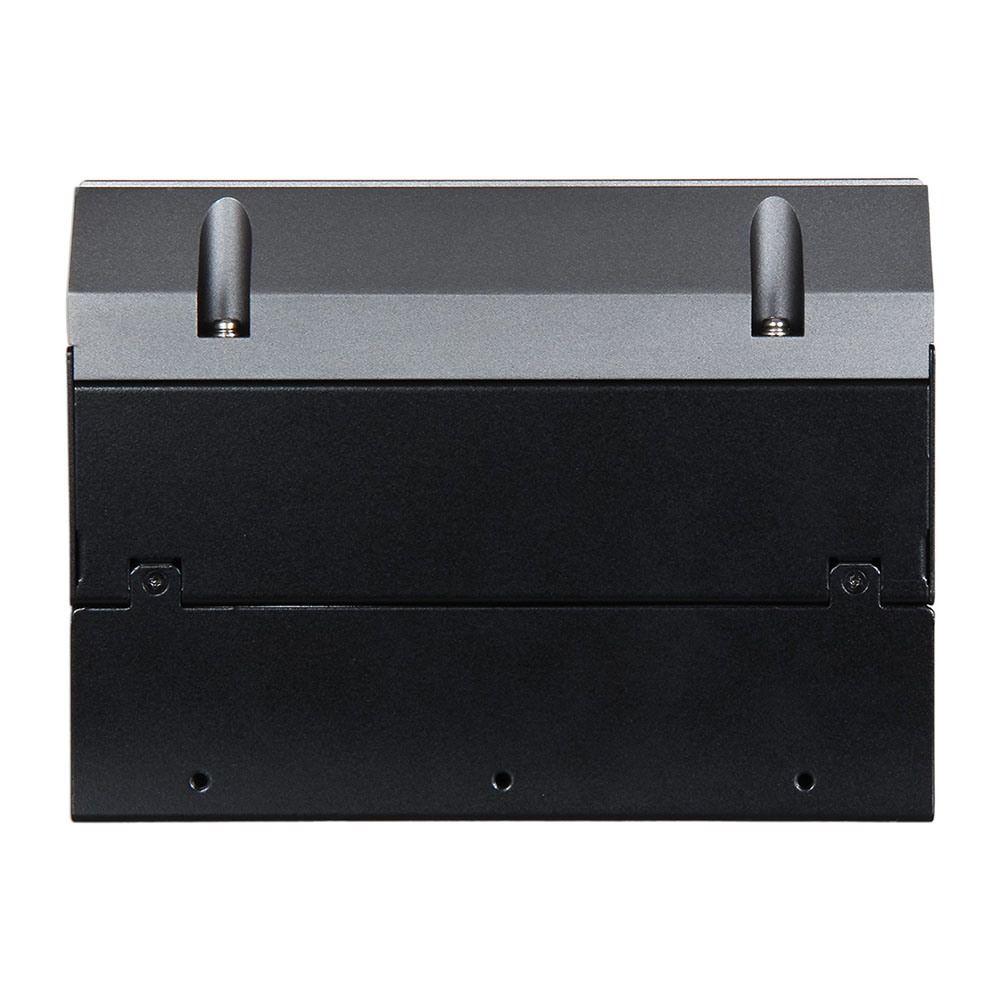

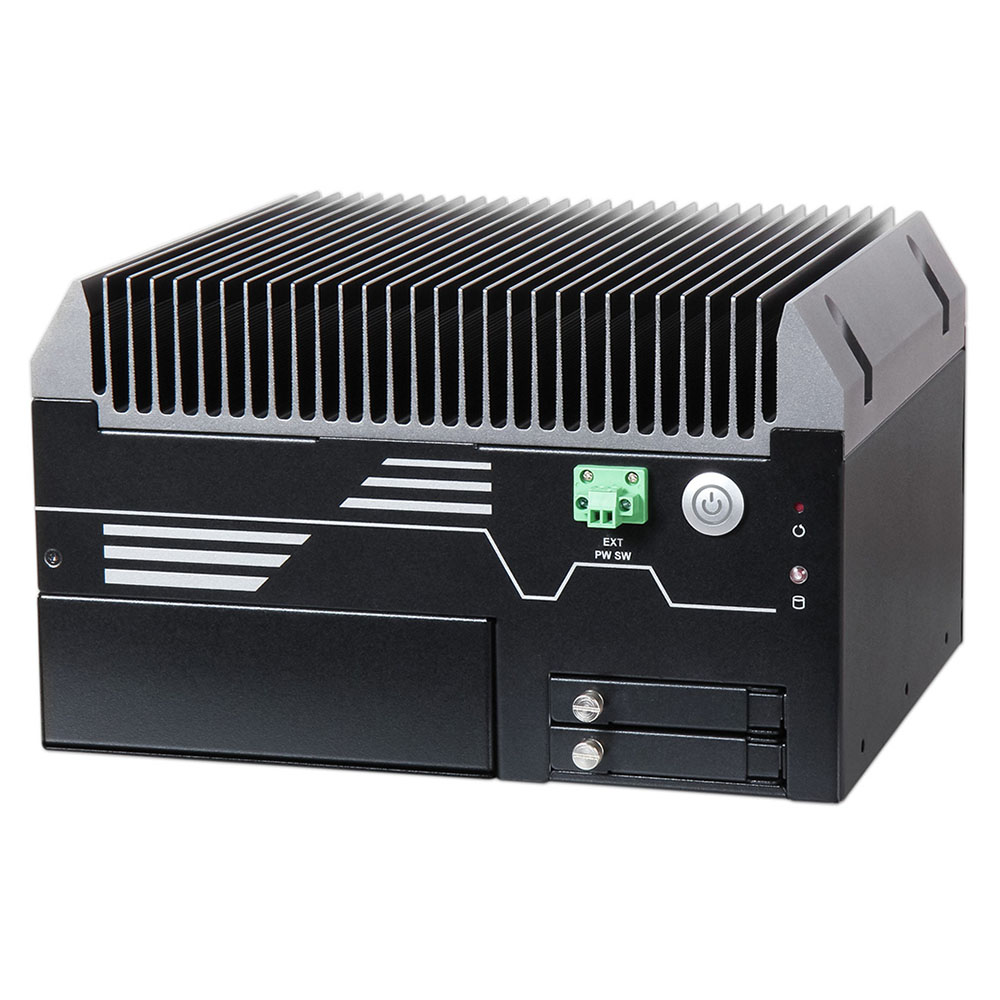

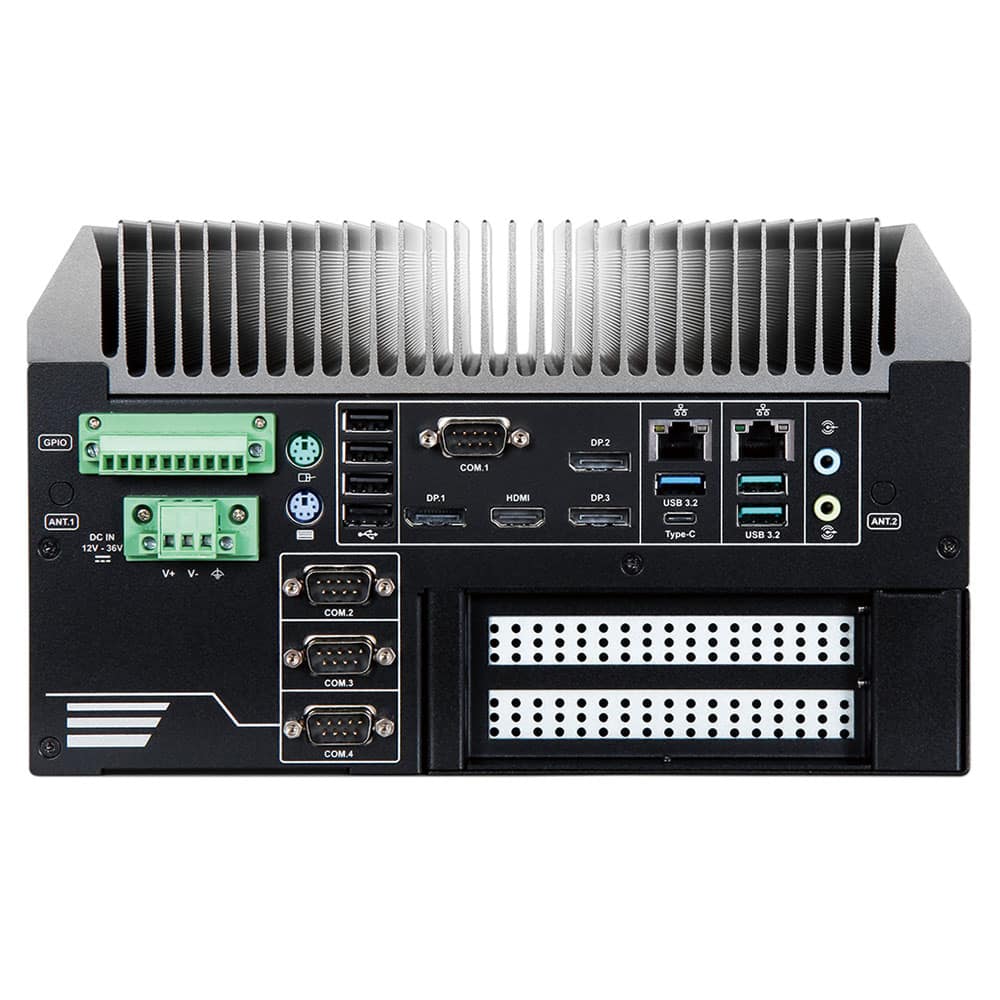

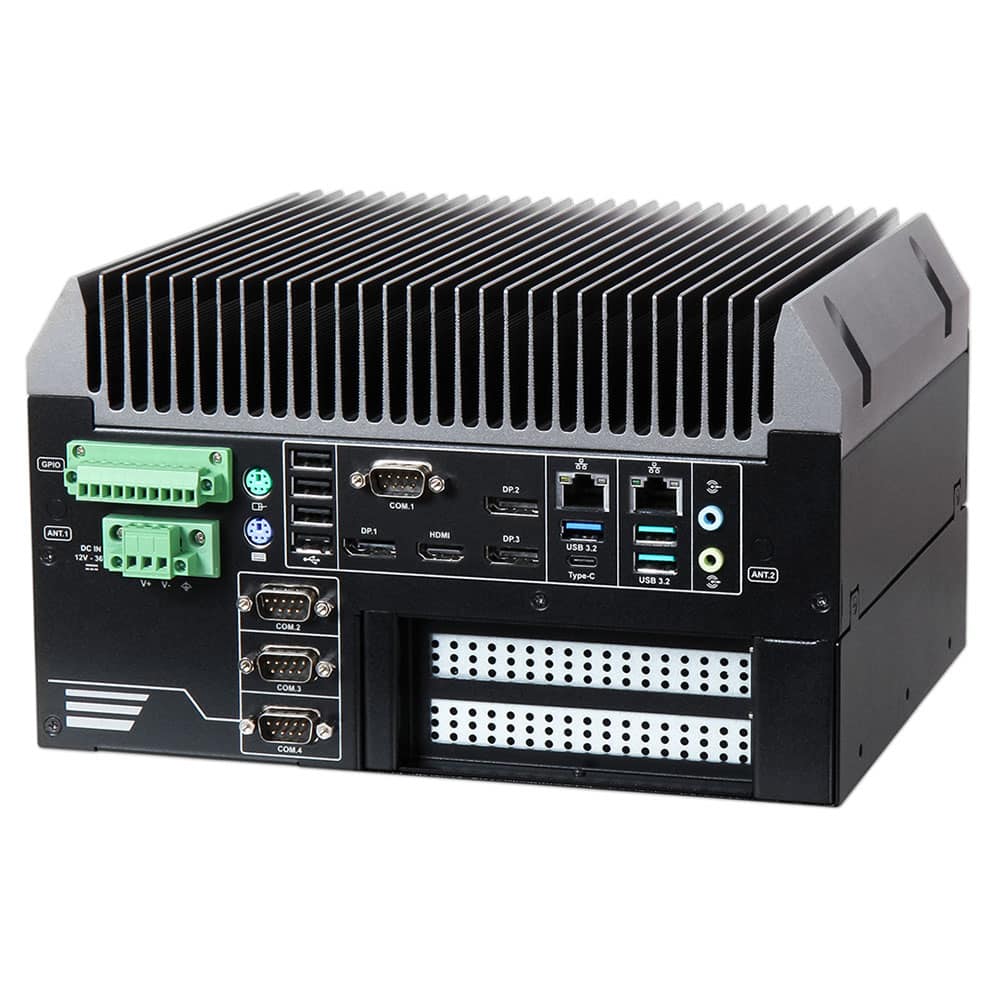

WEBS-45J3
Embedded Rugged Fan-less System with 14th/13th/12th Generation Intel® Core™ i3/i5/i7/i9 based Mini-ITX Board
- Support 14 th /13 th /12 th Generation Intel ® Core™ i3/i5/i7/i9 processors
- Two SO-DIMM support DDR5 DRAM up to 96GB
- Support triple DP and one HDMI ® display
- Support One M.2 E Key, One M.2 M Key
- Support 4x COM ports (2x RS-232/422/485)
- 2x Antenna holes for WiFi module
- 2x PCIe x16 slots (PCIe x8 Signal)
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| M/B | WADE-8213 |
|---|---|
| CPU | Supporting Intel ® 14 th /13 th /12 th Gen Core™ CPU (LGA1700 socket, 35W TDP) Intel ® Core™ i9-14900T Intel ® Core™ i7-14700T Intel ® Core™ i5-14500T Intel ® Core™ i3-14100T Intel ® Core™ i9-13900TE Intel ® Core™ i7-13700TE Intel ® Core™ i5-13500TE Intel ® Core™ i3-13100TE Intel ® Core™ i9-12900TE Intel ® Core™ i7-12700TE Intel ® Core™ i5-12500TE Intel ® Core™ i3-12100TE |
| BIOS | AMI uEFI BIOS |
| Memory | Supports two DDR5 dual channel up to 96GB SO-DIMM sockets Supports DDR5-5600 MT/s 1DPC 1R and DDR5-5200 MT/s 1DPC 2R SO-DIMM memory on all i9,i7 and select i5 SKUs |
| Storage | 2x SATAIII ports |
| Watchdog Timer | Programmable watchdog timer |
| TPM | TPM 2.0 (Optional) |
| H/W Status Monitor | System monitor (Voltage and Temperature) |
| Expansion | 2x PCIe Expansion slots option (Gen 3) :2x PCIe x16 slots (PCIe x8 Signal)1x M.2 E Key 2230 with PCIe x1, CNVI for Wireless1x M.2 M Key 2242/2260/2280 with PCIe x4 and SATA3 for SSD |
| Serial Port | 4 x COM ports (2x RS- 232/422/485) |
| Display | 3x DP, resolution up to 8K1x HDMI ® |
| USB | 3x USB 3.2 Gen 2 (2x Type A +1x Type C)1x USB 3.2 Gen14x USB 2.0 |
| Audio | Audio Jack with Line-out / Line-in with Realtek ALC897 Audio controller |
| Ethernet | Intel ® I210AT(1GbE) and Intel ® I225LM(2.5GbE) Ethernet controller2x RJ45 connectors |
| GPIO | 1x Programmable 8-bit Digital I/O |
| Other | 2x Antenna holes for WiFi module1x EXT Power Switch |
| Power Input | DC 12V ~ 36V with 3-pin Terminal Block Connector |
| Operation Temperature | -20 °C ~ 60 °C |
| Storage Temperature | -40 °C ~ 80 °C |
| Relative Humidity | 40 °C, 95%RH non-condensing |
| Operation Vibration | 1Grms/10-500Hz, IEC 60068-2-6 |
| Operation Shock | 50G, 11 msec, IEC 60068-2-27 |
| Dimension | 253 (W) x 201.2(D) x 150 (H) mm |
| Weight | 6.35Kg |
| Mounting | Wall mounting |
