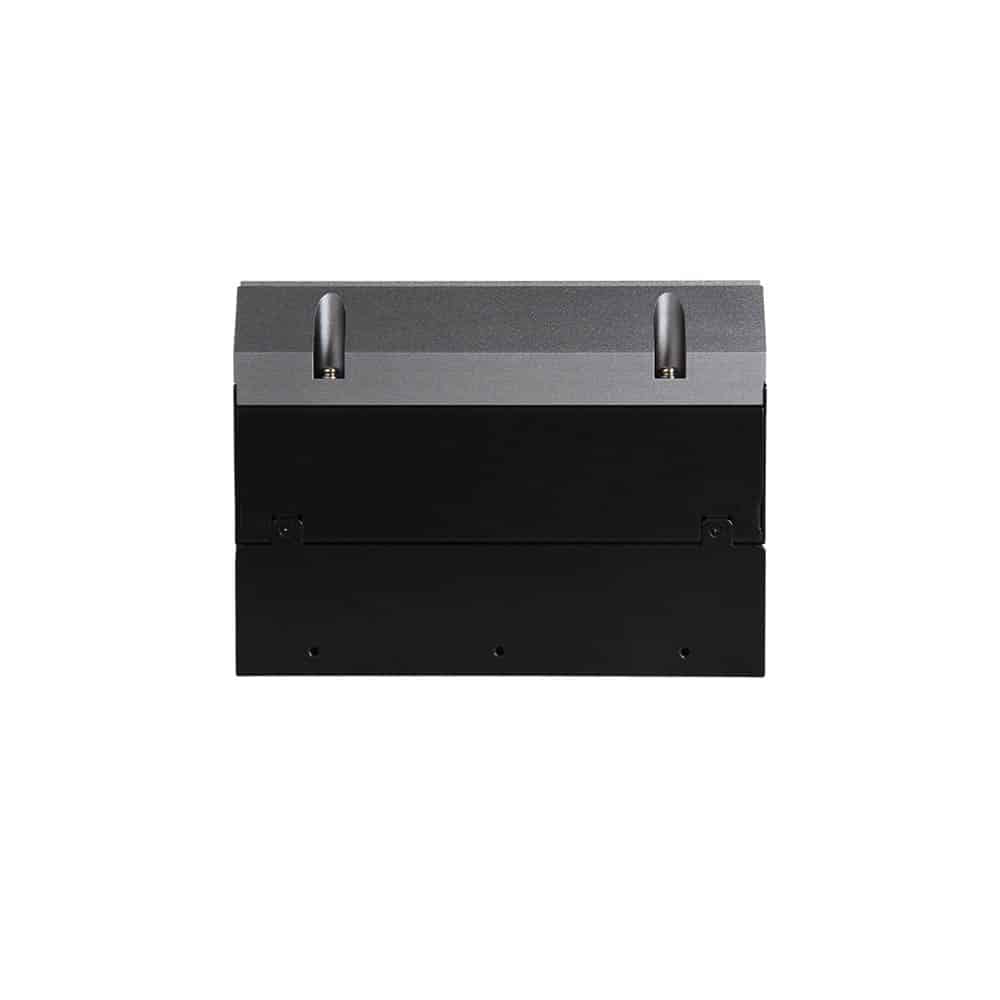

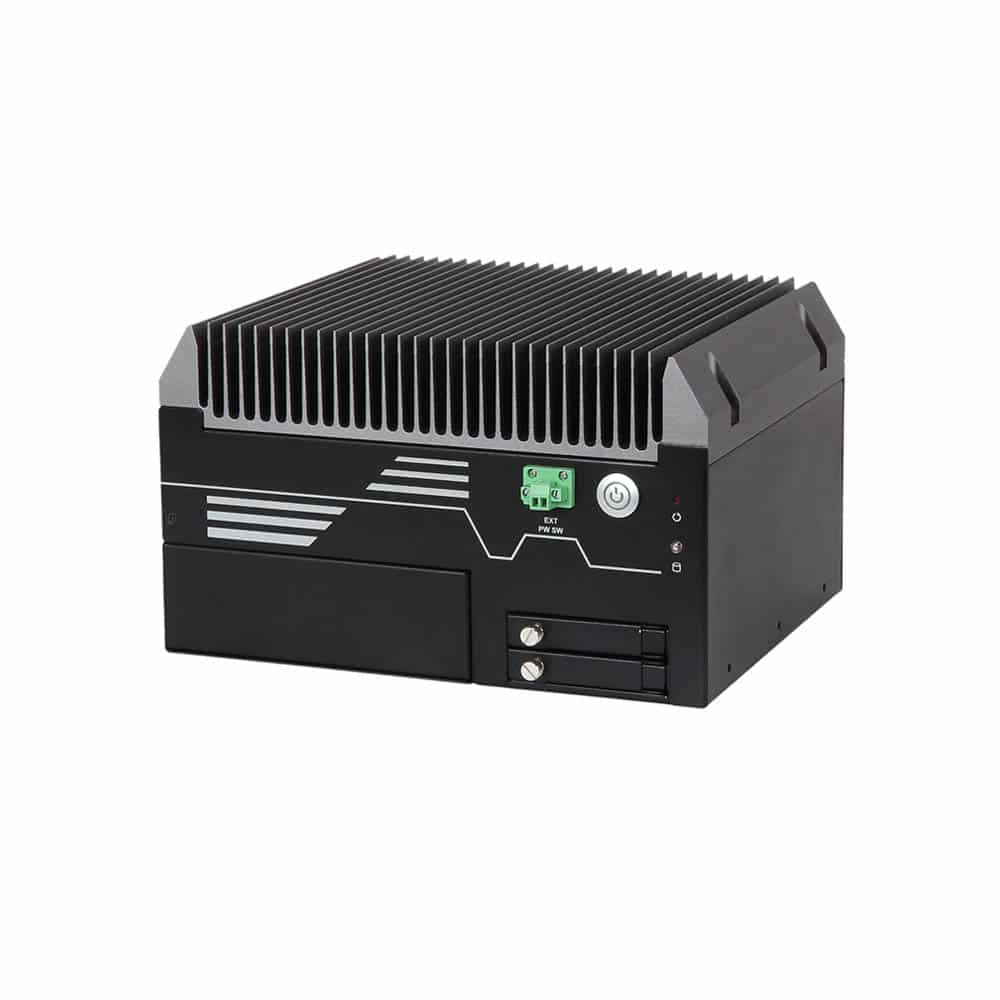

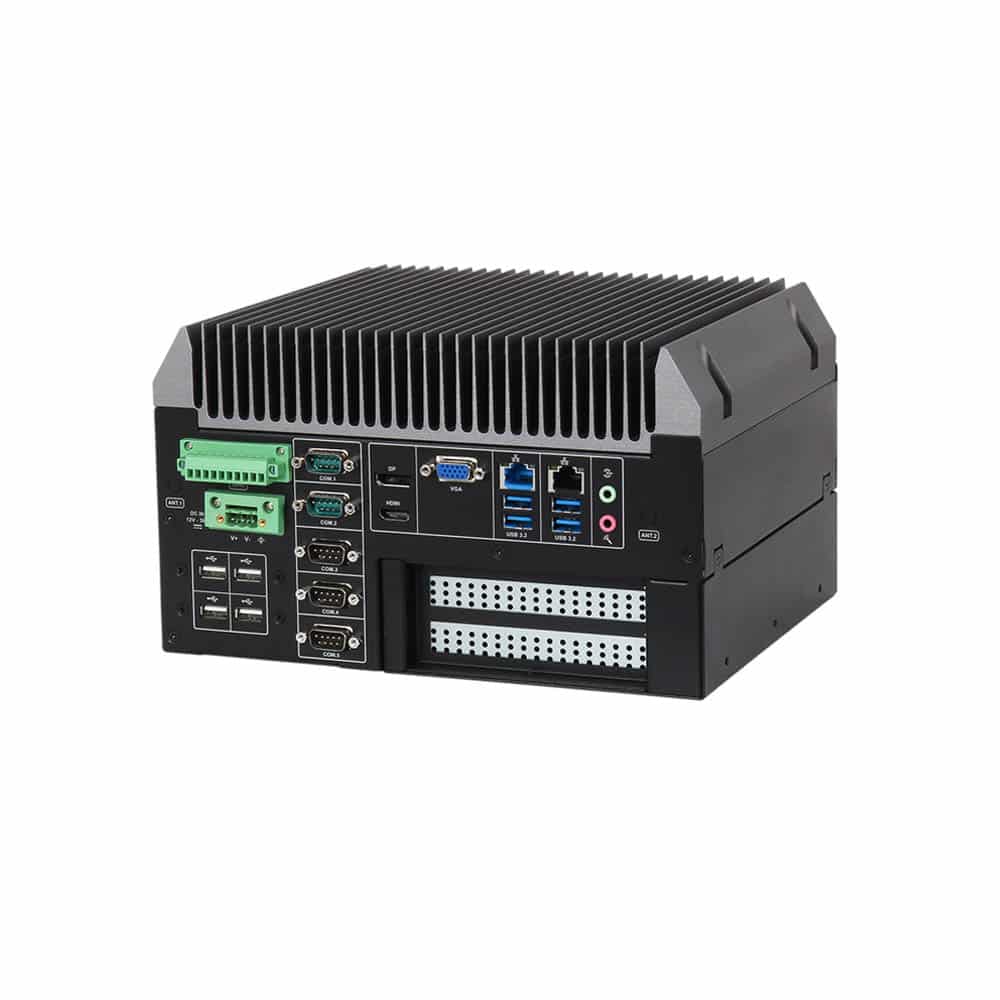

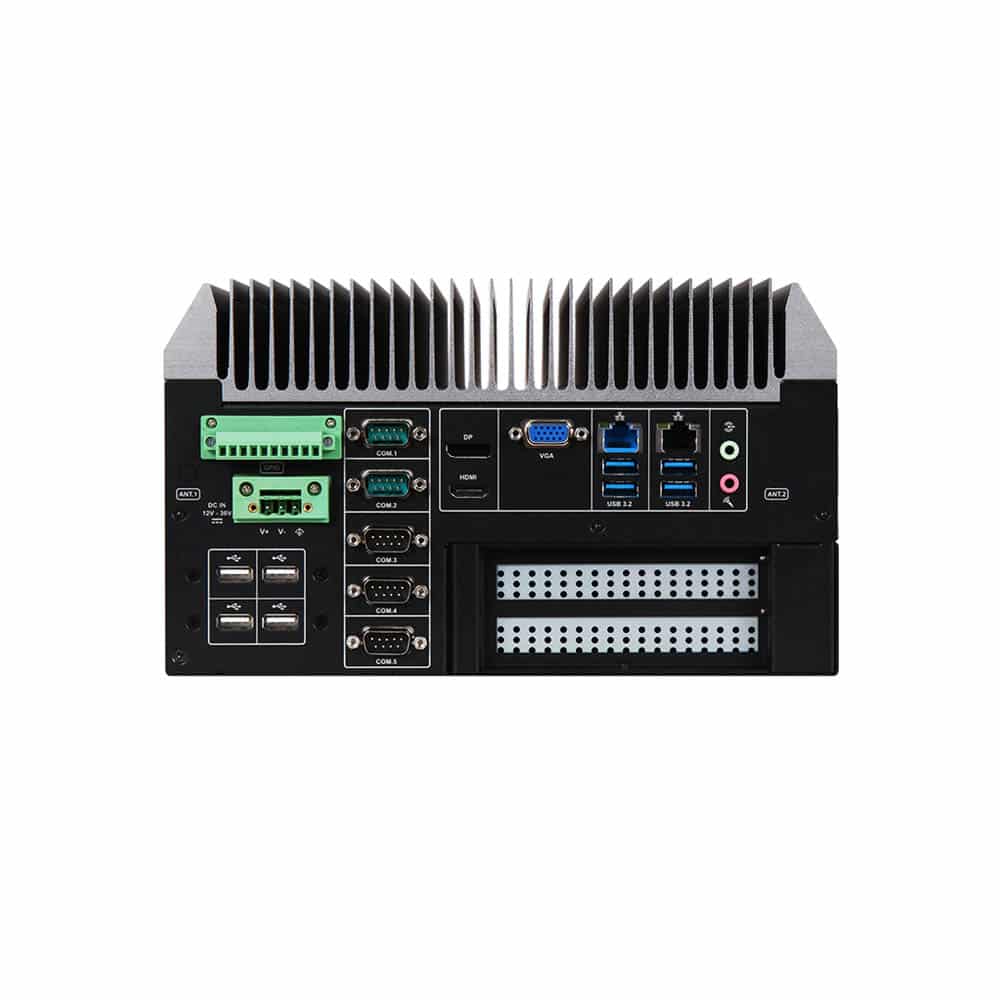

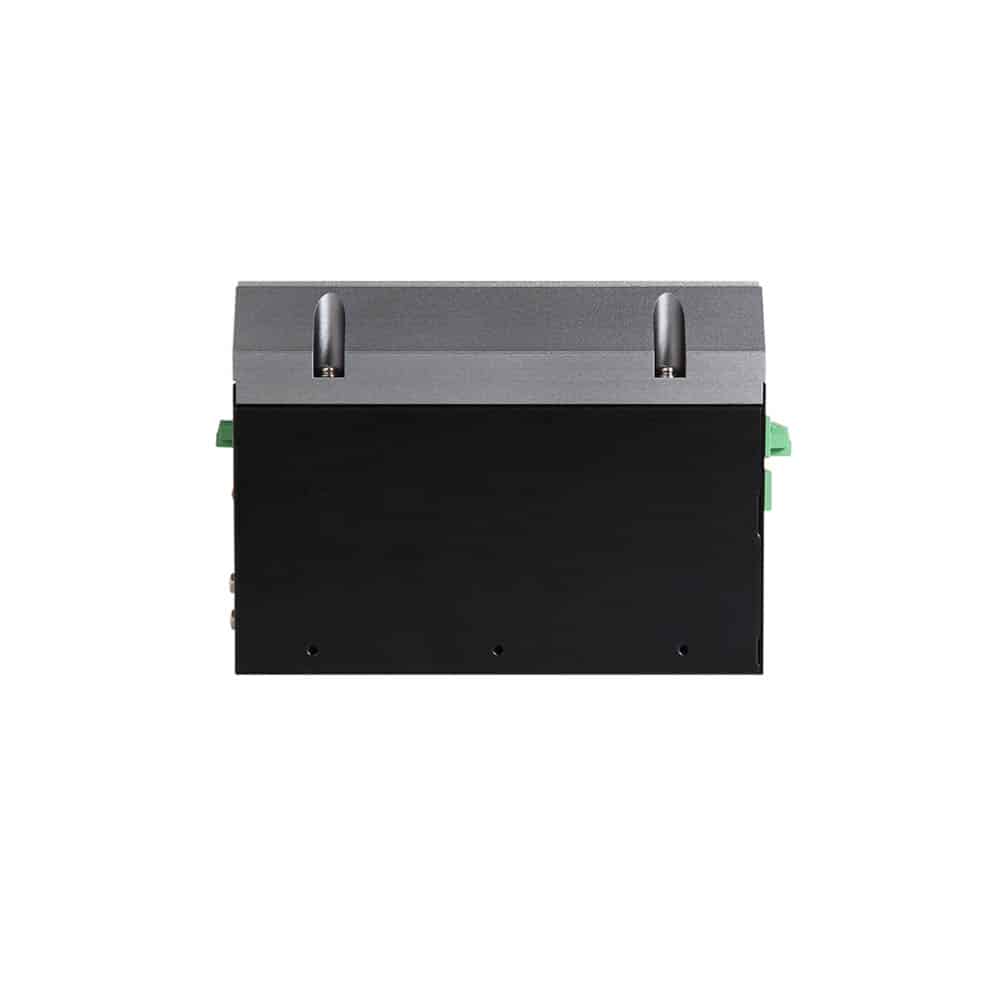

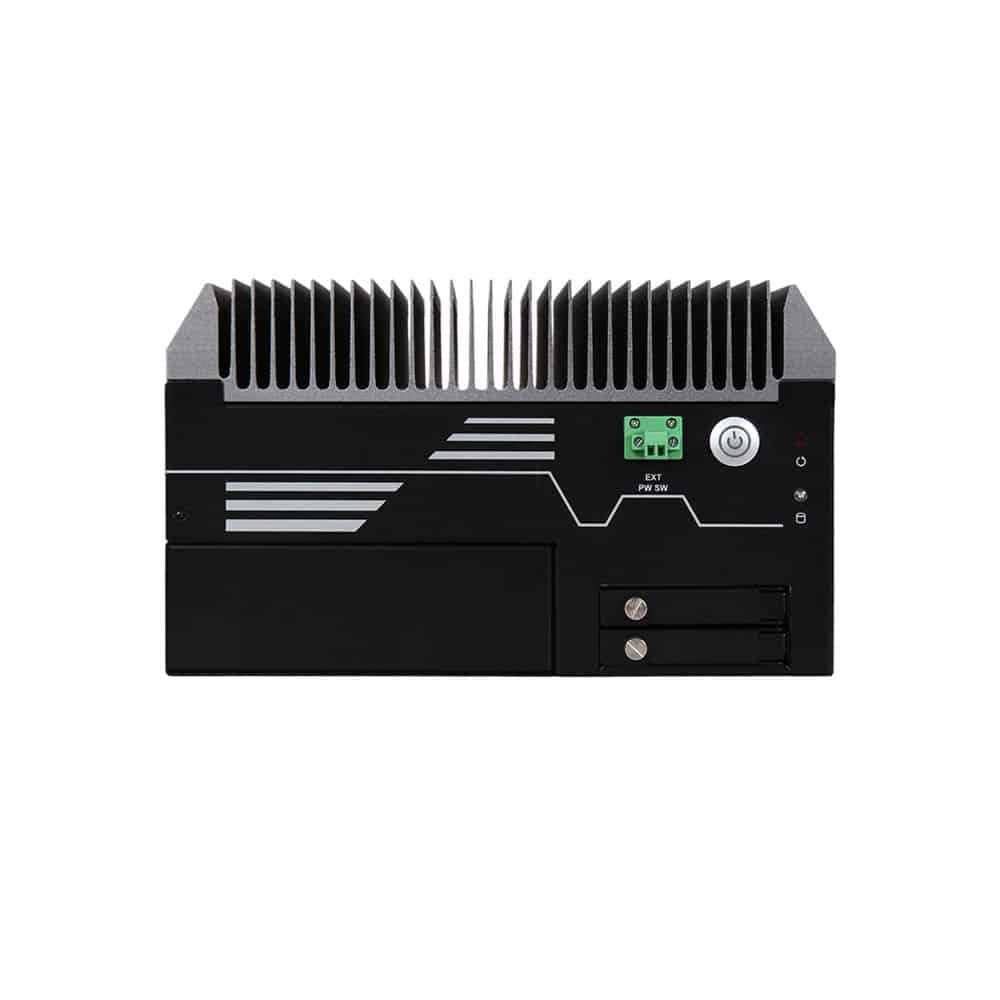

WEBS-45H3
Embedded Rugged Fan-less System with 10th Generation Intel® Core™ i3/i5/i7/i9 based Mini-ITX Board
- Support 10 th Generation Intel ® Core™ i3/i5/i7/i9 processors
- Different add-on card expansion options
- Support 64GB DDR4 2400/2666 NonECC SDRAM
- Support triple displays including HDMI ® , DP and VGA
- Support One M.2 E Key, One M.2 M Key and one M.2 B Key socket
- Support 5 x COM ports( 2 x RS232/422/485)
- 2x Antenna hole for WiFi or 4G/GPS module to use
- Onboard TPM 2.0
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| M/B | WADE-8212 |
|---|---|
| CPU | 10 th Gen Intel ® Core™ Processors CPU in LGA1200 package (35W TDP) |
| BIOS | AMI UEFI BIOS |
| Memory | Up to 64GB DDR4 2400/2666 Non-ECC SDRAM on two SO-DIMM sockets |
| Storage | 2x 2.5” SSD slots |
| Watchdog Timer | Programmable by embedded controller |
| TPM | TPM 2.0 |
| H/W Status Monitor | System monitor (Voltage, Temperature) |
| Expansion | -2x PCIe x16 slot (PCIe x8 Signal) ~1x M.2 E Key 2230 with PCIe x1, CNVI and USB2.0 for Wireless -1x M.2 M Key 2242/2260/2280 with PCIe x4 and SATA3 for SSD -1x M.2 B Key 3042/3052 with USB 3.0 Signal -1x SIM Card socket |
| Serial Port | 5x COM ports(2x RS-232/422/485) |
| Display | -1x HDMI ® 2.0a , resolution up to 4096×2160 @60Hz -1x DisplayPort 1.2 , resolution up to 4096×2160 @60Hz -1x VGA , resolution up to 1920×1200 @60Hz |
| USB | -4x USB 3.2 Gen 1 ~4x USB 2.0 |
| Audio | Audio Jack with Line-out / Mic-in with Realtek ALC887 Audio controller |
| Ethernet | Intel ® I219LM and Intel ® I225LM Ethernet controller |
| GPIO | 1x Programmable 8-bit Digital I/O |
| Other | -2x Antenna hole for WiFi or 4G/GPS module -1x EXT Power Switch |
| Power Input | DC 12V ~ 36V with 3-pin Terminal Block Connector |
| Operation Temperature | -20 °C ~ 60 °C |
| Storage Temperature | -40 °C ~ 80 °C |
| Relative Humidity | 40 °C, 95%RH non-condensing |
| Operation Vibration | 1Grms/10-500Hz, IEC 60068-2-6 |
| Operation Shock | 50G, 11 msec, IEC 60068-2-27 |
| Dimension | 253(W) x 201.2(D) x 150(H) mm |
| Weight | 8 Kg |
| Mounting | Wall mounting |
