- Portwell

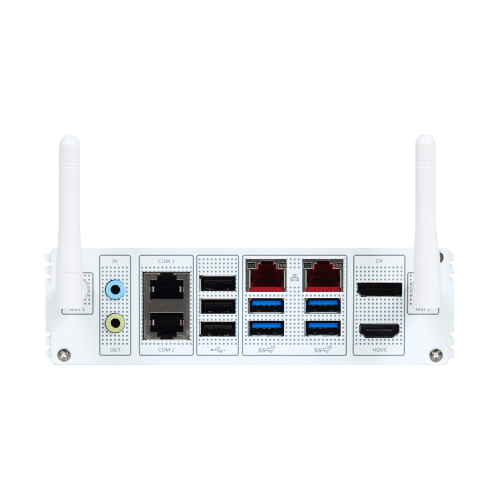

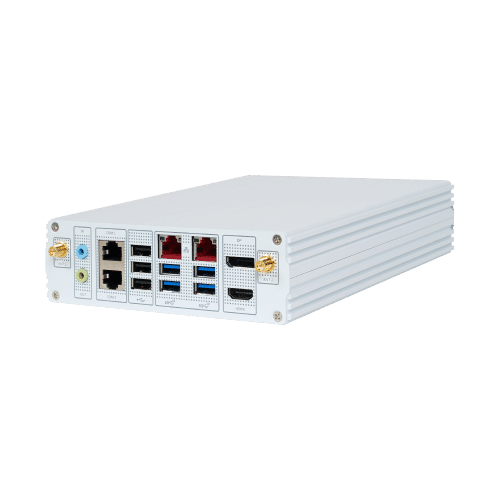

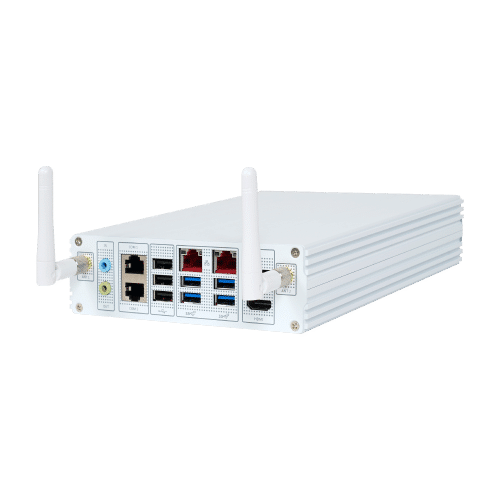

DTEC-C012
Super silent medical PC
- High-performance Intel ® Alderlake CPU
- Support high-speed DDR5 Memory & NVMe SSD
- Comply with IEC-60601 medical grade
- 1U compact size chassis
- Fan-free design
- Cableless design
- Multiple communication ports 9x Type-A USB + 2x RJ45 COM
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | Intel ® Alderlake Core TM i3-1215UE |
|---|---|
| Memory | 2x SO-DIMM up to 64GB DDR 5 4800 |
| Storage | 1x M.2 NVME with PCIe x4 for SSD1x SATA3.0 (6.0 Gb/s) |
| BIOS | AMI uEFI BIOS (SPI ROM) |
| Expansion | Optional1x M.2 2230 support Intel ® WiFi 6 + BT Module I/O Interface |
| Serial Port | 2x RJ45 COM port |
| USB | 4x USB 3.2 (Type-A)5x USB 2.0 (Type-A) |
| Audio | Realtek ALC 897 Audio Codec MIC In/Line-out |
| Ethernet | 2x Intel ® I226LM With 2.5G Gigabit LAN |
| Display | 1x HDMI ® up to 8K resolution1x DP up to 8K resolution Power Supply |
| Power Input | DC 12 ~ 24V DC input Mechanical & Environmental |
| Operation Temperature | (- )5 °C ~ 40 °C |
| Dimensions | 196(L)x152(W)x44(H)mm |
| Storage Temperature | (- )40 °C ~ 70 °C |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| DTEC-C012 | Datasheet | 3.98 MB | download – DTEC-C012 | Datasheet |
| DTEC-C012 | User Manual | 1.35 MB | download – DTEC-C012 | User Manual |
