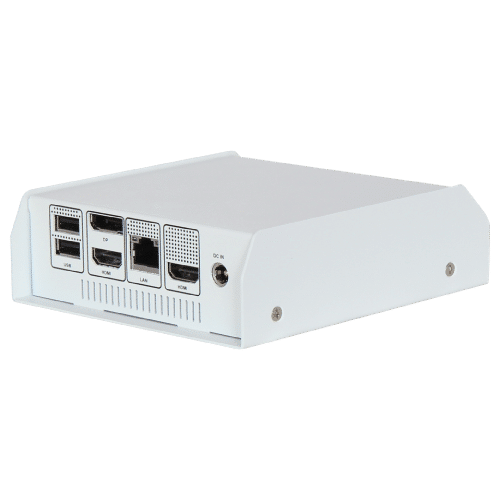

MEDS-2003
NUC size Medical System
- NUC size 1U height compact chassis
- MEDS-2000 equipped entry level CPU with fan free design
- MEDS-2003 equipped Core level CPU with low dB fan design
- Unique thermal solution

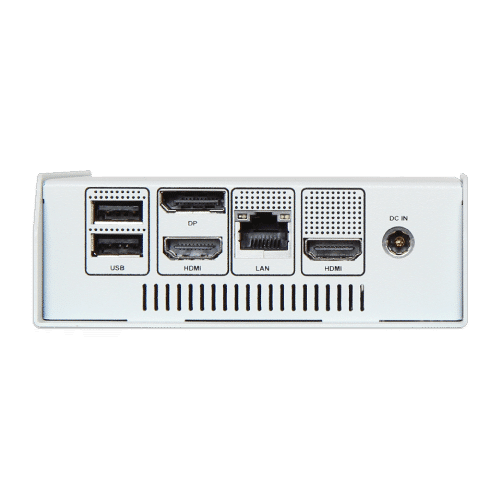

- Rich I/O with dual display and support Wifi + Bluetooth module
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | Intel ® Core™ i3-7100U,QC, 2.30 GHz, 15 W Intel ® Core™ i5-7300U, QC, 2.40 GHz, 15 W |
|---|---|
| Memory | 2x Dual Channel SO-DIMM DDR4 2133 MHz up to 32GB |
| Storage | 1x SATA III port M.2 SSD 2260 (64/ 128GB) |
| BIOS | AMI uEFI BIOS 64MB |
| Expansion | 2x M.2 Key E (Supports 2230) Key M (Supports 2260) I/O Interface |
| Serial Port | N/A |

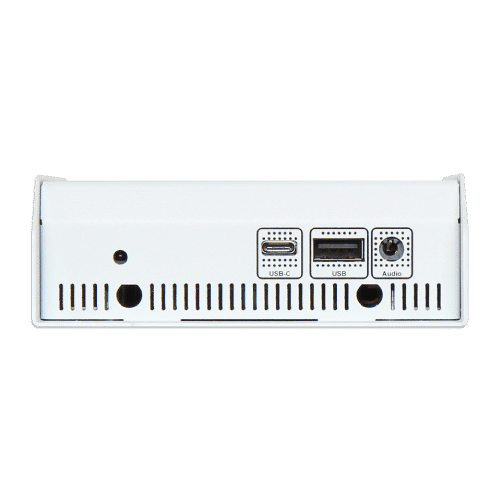

| USB | 3x USB 3.0 (Type-A)1x USB 3.1 (Type-C) |
| Audio | 1x Line-in/Line-out |
| Ethernet | 1x RJ-45 connector LAN |
| Display | 1x DP up to 4096×21602x HDMI ® up to 3840×2160 Power Supply |
| Power Input | DC 12V ~ 19V input Mechanical & Environmental |
| Operation Temperature | 0 °C ~ 35 °C |
| Storage Temperature | (- )40 °C ~ 70 °C |
| Dimension | 113(W)x44(H)x135(D)mm |
