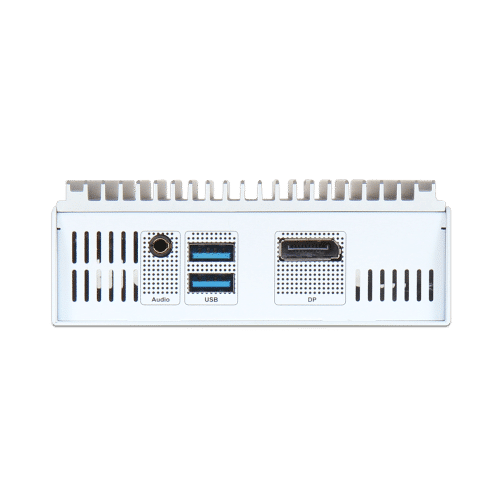

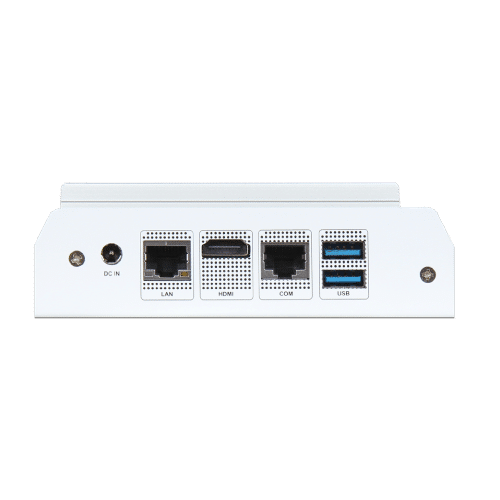

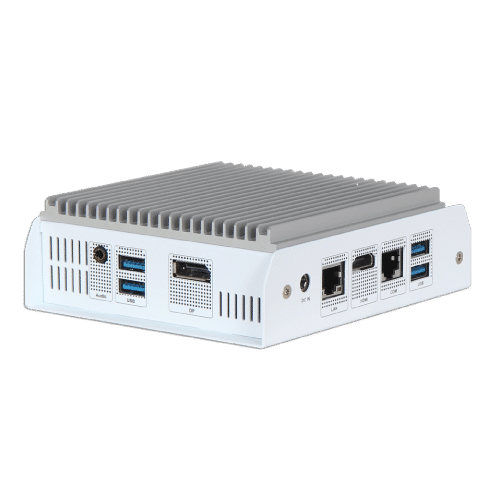

MEDS-2000
NUC size Medical System
- NUC size 1U height compact chassis
- MEDS-2000 equipped entry level CPU with fan free design
- MEDS-2003 equipped Core level CPU with low dB fan design
- Unique thermal solution
- Rich I/O with dual display and support Wifi + Bluetooth module
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | Intel Atom ® Apollo Lake SOC, (N3350/N4200) supports Dual/Quad Core (up to 10W) with 2MB Cache |
|---|---|
| Memory | Dual Channel DDR3L 1866/1600 Non-ECC SO-DIMM up to 8GB |
| Storage | 1x SATA III port (for SATA DOM 128G)1x Micro-SD 3.0 socket Support Onboard eMMC 5.0 (32G) |
| BIOS | AMI uEFI BIOS 64MB |
| Expansion | 1x M.2 socket (E+A key) support WiFi, BT, 3G & 4Gt1x PCIe x1 slot I/O Interface |
| Serial Port | 1x RJ45 connector |
| USB | 4x USB 3.0 (Type-A) |
| Audio | 1x Line-in/Line-out |
| Ethernet | 1x RJ-45 connector LAN |
| Display | 1x DP up to 4096×21601x HDMI ® up to 3840×2160 Power Supply |
| Power Input | DC 12V input Mechanical & Environmental |
| Operation Temperature | 0 °C ~ 40 °C |
| Fan free | Yes |
| Storage Temperature | (- )40 °C ~ 70 °C |
| Dimension | 113(W)x44(H)x135(D)mm |
