- Portwell
- EOL (End of Life)

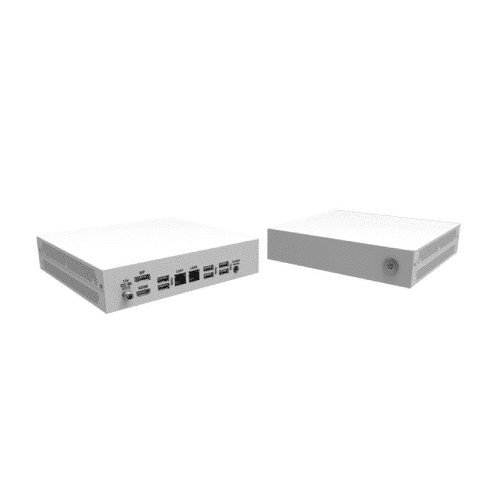

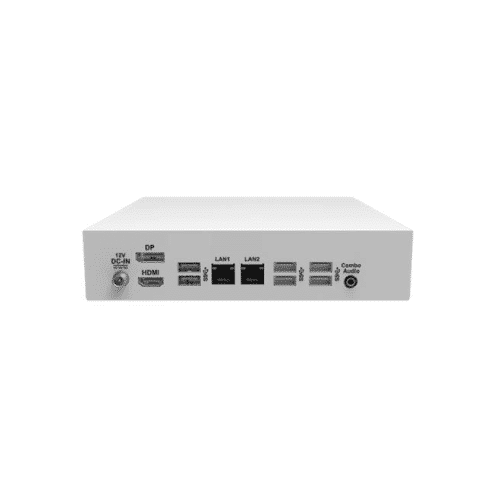

MEDS-5000-H420
Compact size medical computer w/ 2 x GbE LAN
- High performance and thermal efficient system
- Comply with IEC-60601 medical grade
- Support 2x GbE LAN
- 1U compact slim size
- 12V DC input
- Optional Wifi & Bluetooth module
- Medical IoT gateway application
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | Socket LGA1151 for Intel ® 10th Comet Lake Core™ i7/i5/i3 ® , up to 35W |
|---|---|
| Memory | 2x DDR4 SO-DIMM 2400/ 2666 memory up to 64GB |
| Storage | 1x M.2 2280 SSD |
| OS Support | Windows 10, Linux |
| USB | USB3.0 x6 |
| Serial port | N/A |
| Ethernet | Gigabit LAN x2 |
| Display | HDMI ® x1, DP x1 |
| Audio | Audio Jack x1: Combo connector |
| PCIe slot | N/A |
| Optional | M.2 Bluetooth & Wifi module |
| Power input | 2.5mm DC-Jack AT 12v Power connector x1 |
| Power limit | 120W (12V/ 10A) |
| Dimension(Wx Dx H) | 200 x200 x 44.45 mm |
| Power supply | AC to DC Adapter |
