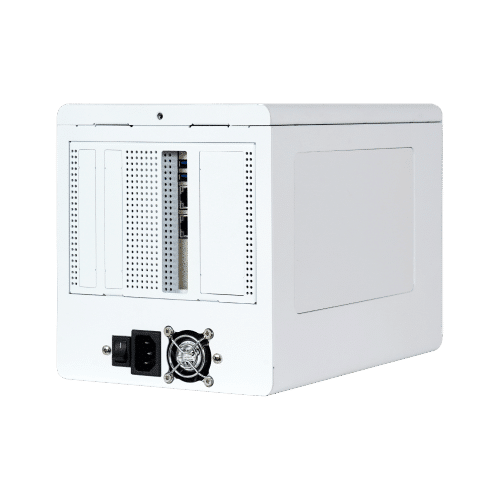

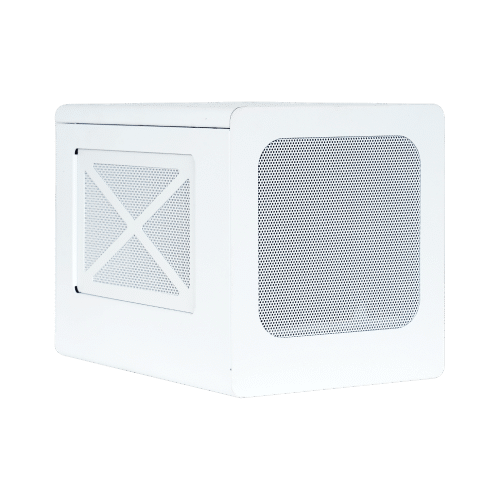

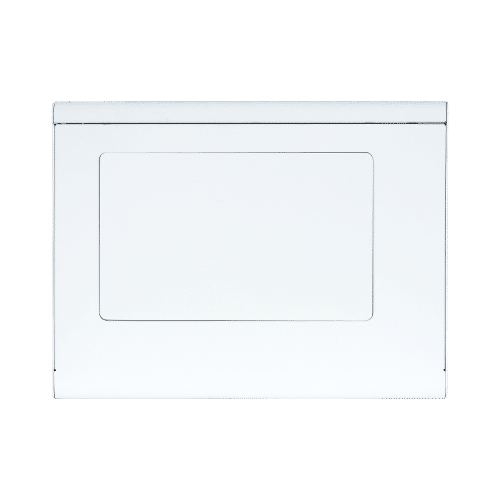

MEDS-7060
Healthcare Edge AI Box
- Add-on card solution with modular system design
- SBC supports high-performance CPU up to 65W
- PCIe x16 slot supports for GPU or FPGA applications
- Simple chassis assembly design
- Unique thermal solution
- 500W medical-grade power supply
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | Socket LGA1151 for Intel ® Coffee lake Core TM i7/i5/i3 ® , up to 65W |
|---|---|
| Chipset | Intel ® Q370/ C246 |
| Memory | 2x DDR4 SO-DIMM 2400/ 2666 memory up to 64GB |
| Storage | 1x mSATA (half size) |
| BIOS | AMI uEFI BIOS (SPI ROM) |
| Expansion | 1x PCIe x16 slot1x PCIe x4 slot1x PCIe x1 slot I/O Interface |
| Serial Port | N/A |
| USB | 2x USB 3.2 (Type-A) |
| Audio | N/A |
| Ethernet | 2x RJ-45 connector 2.5 GbE LAN |
| Display | 2x mini DP up to 4096×2304 |
| USB #2 | 4x USB 3.0 |
| Serial Port #2 | 2x RJ45 for RS232 |
| Ethernet #2 | 2x Gigabit LAN |
| Display #2 | 1x HDMI ® Power Supply |
| Power Input | 500W Flex-ATX PSU Mechanical & Environmental |
| Operation Temperature | (- )5 °C ~ 40 °C |
| Dimensions | 253(L)x175(W)x192(H)mm |
| Fan | 1x 6000RPM CPU cooler1x 1600RPM system fan(120 x120 mm) |
| Storage Temperature | (- )40 °C ~ 70 °C |
