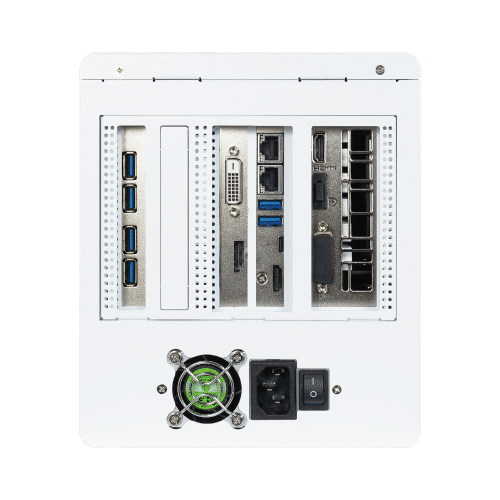

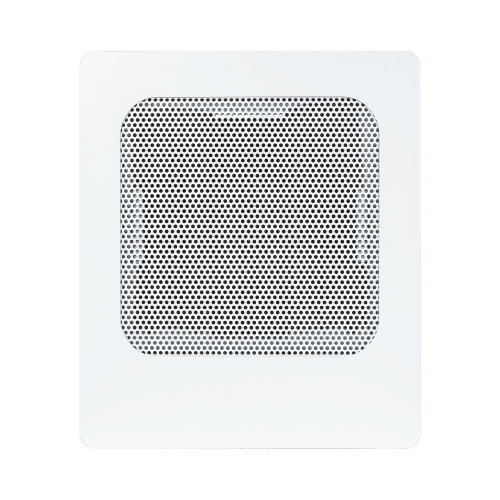

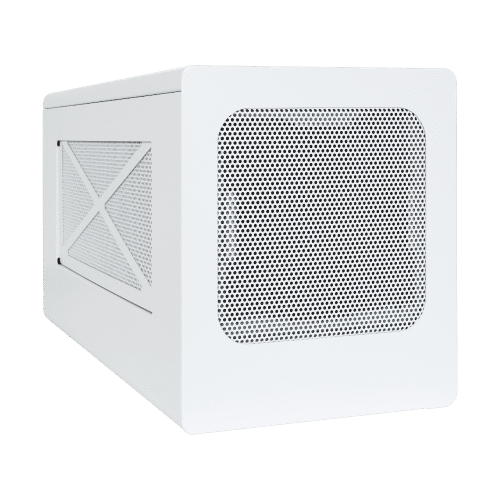

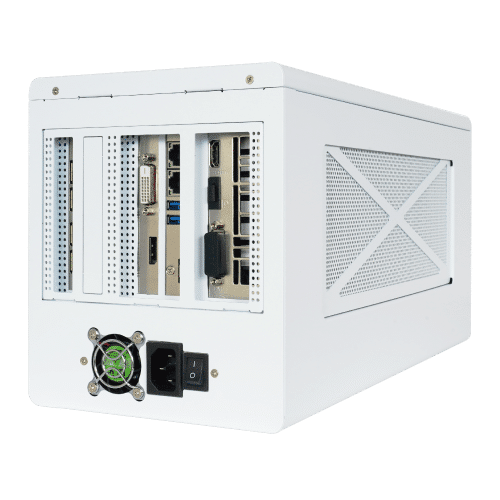

MEDS-7061
Full-size SBC system design with 4 PCIe slots for multiple add-on cards in a hospital application
- Server grade Intel ® Xeon processor platform
- Comply with IEC-60601 medical grade
- Support 2x GbE LAN
- Expansion PCIe x4 slot for add-on card
- Expansion PCIe x16 slot for double width graphic card
- AC input with medical grade 500W PSU
- Optional Wifi & Bluetooth module
- Best AI Inference Engine Solution
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | Socket LGA1151 for Intel ® Coffee lake Core™ i7/i5/i3 ® , up to 65W |
|---|---|
| Memory | 2x DDR4 SO-DIMM 2400/ 2666 memory up to 64GB |
| Storage | -1x mSATA half size SSD -2x 2.5" SSD |
| OS Support | Windows 10, Linux |
| USB | USB3.0 x2 |
| Serial port | N/A |
| Ethernet | Gigabit LAN x2 |
| Display | mini-DP x2 |
| Audio | N/A |
| PCIe slot | -1x PCIe x16 (x16 signal) ~1x PCIe x4 (x4 or x1 signal selectable) ~1x PCIe x1 (x1 signal) |
| Optional | M.2 Bluetooth & Wifi module |
| Power input | Power cord AC plug |
| Power limit | 500W |
| Dimension(Wx Dx H) | 170 x400 x 204 mm |
| Power supply | 500W Flex-ATX power (Medical grade) |
