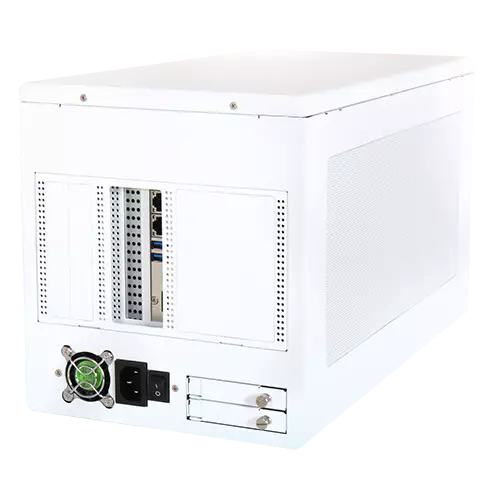

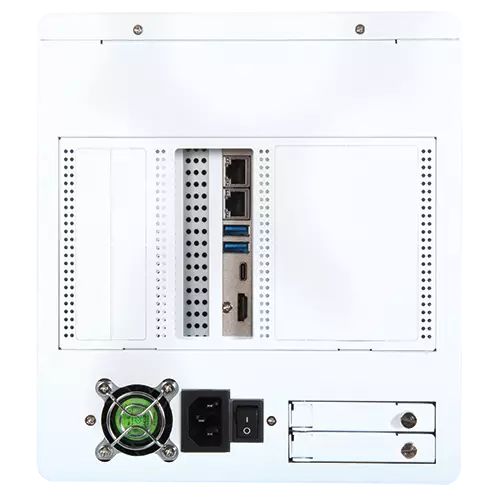

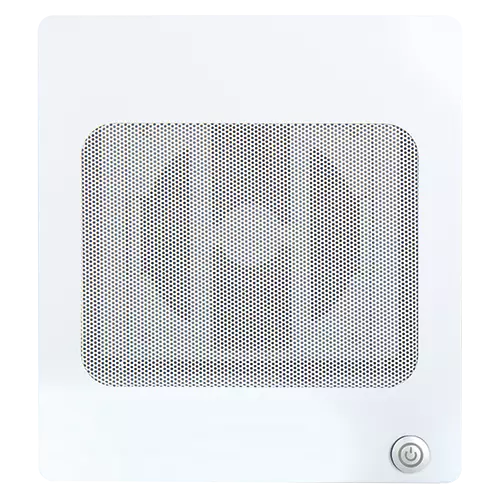

MEDS-7081
MEDS-7081 is a rugged medical edge AI platform supporting GPUs, VPUs and FPGAs for real-time CT nodule detection and tumor segmentation, with a 900W power supply and advanced thermal management.
- Intel ® 14th Generation Core processors
- DDR5 SO-DIMM 5600 memory up to 64GB
- PCIe x16 slot supports for GPU or FPGA, PCIE x1 slot or PCIE x4 support for video capture and video stream.
- Powerful Full-size SBC supporting highperformance CPUs up to 65W Add-on card solution with modular system design Streamlined chassis assembly design and innovative thermal solution Equipped with a 900W medical-grade power supply for enhanced reliability
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Sys Form Factor | Proprietary |
|---|---|
| Processor | 14th Gen Intel ® i3/i5/i7/i9 processor, TDP up to 65W, LGA 1700 socket |
| Chipset | Intel ® Q670 |
| BIOS | AMI uEFI BIOS |
| Memory | Support up to 64GB DDR5 5600 MT/s on 2 SODIMM (Non-ECC) |
| Storage | 2 x 2.5" SSD/HDD1 x M.2 Key-M NVMe PCIe x4 2280 |
| Ethernet | 2 x 2.5 GbE w/ Intel ® WGI226LM |
| USB | 2 x USB 3.2 Gen2 Type A1 x USB 3.2 Gen2 x2 Type C |
| Display | 1 x HDMI ® 2.04096 x 2160@60Hz |
| Other | Power Button, Power LED |
| PCIe | 1 x Gen5 x16 slot with PCIe x16 signal,1 x Gen3 x4 slot with PCIe x4 signal,1 x Gen3 x1 slot with PCIe x1 signal, |
| M.2 | 1 x M Key w/ 2280 PCIe x4 |
| Dimension (WxDxH) | 210 x403 x 234 mm (8.27" x 15.87" x 9.21" ) |
| Weight | 10.1 kg |
| Mounting | Desktop |
| Power Supply | AT mode/ ATX mode |
| Operating Temperature | 0 ~ 40 °C (32.0 ~ 104.0 °F) |
| Storage Temperature | -40 ~ 80 °C (-40.0 ~ 176.0 °F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Certification | CE, FCC Class B Part18, IEC/EN 60601-1 |
| OS | Windows 11 IoT Enterprise |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| MEDS-7081 | Datasheet | 802.79 KB | download – MEDS-7081 | Datasheet |
