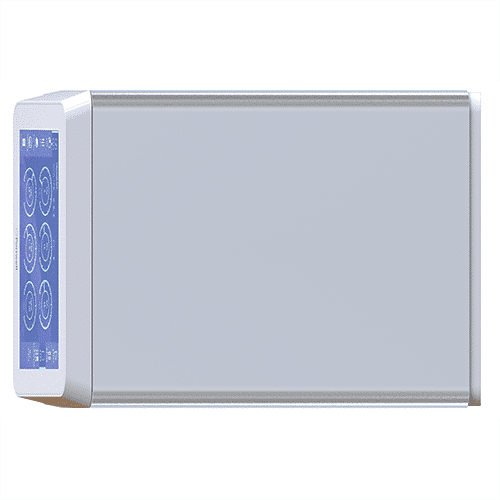

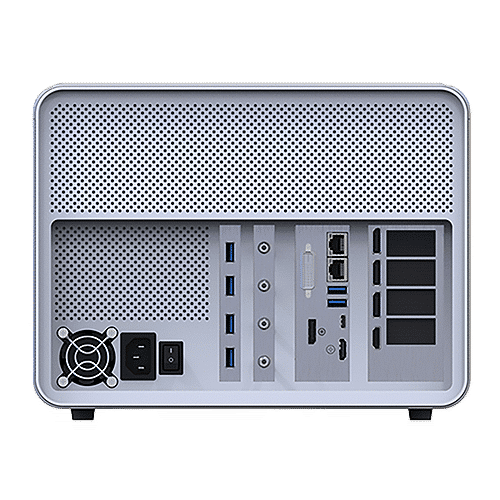

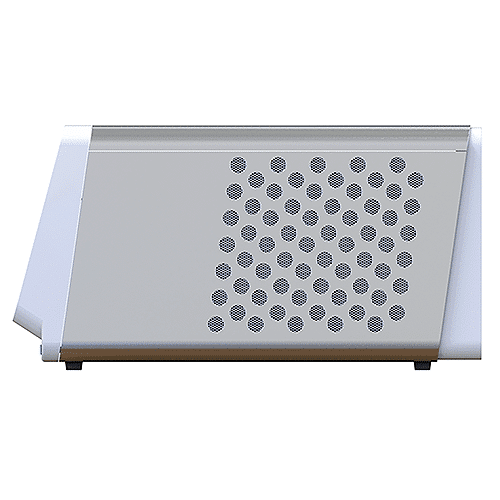

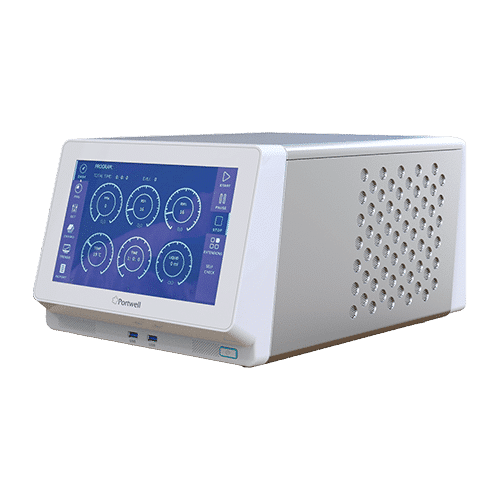

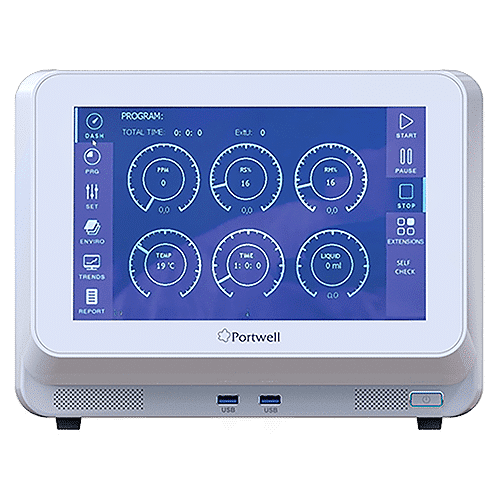

MEDS-7082
- Support Intel ® Gen 12 th /13 th /14 th processor up to 65W
- PCIe x16 slot supports for GPU or FPGA , PCIE x1 slot or PCIE x4 support for video capture and video stream .
- 900W medical grade power supply
- Simple chassis assembly design , Unique thermal solution
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | Socket LGA1700 for Intel ® 12 th /13 th /14 th Generation Core processors i7/i5/i3, up to 65W |
|---|---|
| Chipset | Intel ® Q670E |
| Memory | 2x DDR5 SO-DIMM 4800 memory up to 64GB |
| Storage | 1x M.2 Type M 2280,2x 2.5” SSD |
| H/W Status Monitor | Temperature (CPU & System), Voltage (CPU Vcore,12V,5V,3.3V) |
| Expansion Interface | 1x PCIe x16 Gen5,1x PCIe x4 Gen3 (x4 or x1 signal selectable),1x PCIe x1 Gen3 |
| Optional | 1x M.2 key E Wi-Fi I/O Interface |
| Serial Port | N/A |
| USB | 2x USB 3.2 (Gen2) ports1x USB3.2 (Gen2 x2) type-C port2x USB 2.0 (on Carrier board) |
| Audio | N/A |
| Ethernet | 2x RJ-45 connector based on Gigabit Ethernet |
| Display | 10.1” display (1280×800)1x HDMI ® up to 4096×2160 @ 30Hz (Depends on SBC motherboard) Power Supply |
| Power Input | 900W Flex ATX medical Power Supply Mechanical & Environmental |
| Operation Temperature | -5 °C ~ 40 °C |
| Cooler | 1x 4200RPM CPU Cooler1x 60*60mm 4800RPM System fan |
| Storage Temperature | -40 °C ~ 70 °C |
| Dimension | 310(W) * 204(H) * 423(D) mm |
