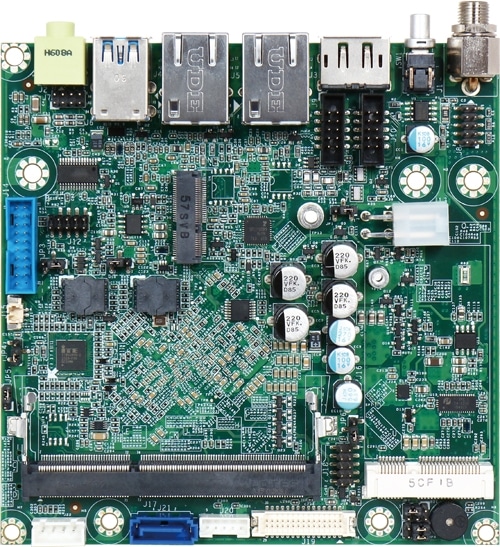

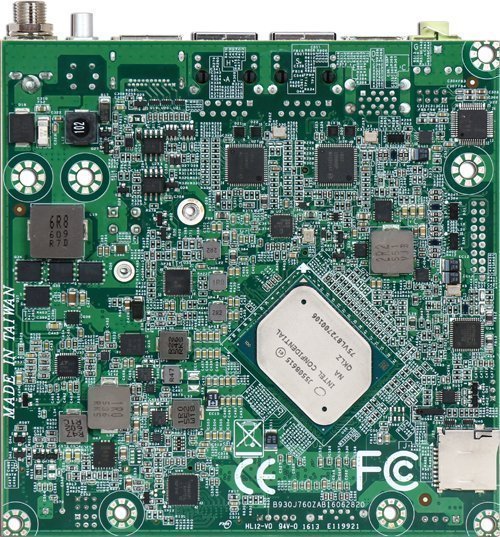

NANO-6062
Intel Atom® Dual/Quad Core E3900 series SoC based on NANO-ITX Board with Triple Displays, GbE LAN, USB 3.0, M.2, SATA III, Mini-PCIe, and mSATA
- Intel Atom ® Dual/Quad Core E3900 series SoC
- DDR3L 1866/1600 MT/s SO-DIMM up to 8GB
- Triple Display by VGA, DP, and LVDS
- M.2 socket, SATA III port, mini-PCIe, and mSATA socket
- Wide range 12V to 24V DC power input
- Support a wide -40°C to 85°C industrial temperature range
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | - Intel Atom ® Dual/Quad Core E3900 series Processor (up to 12W) ~ 2MB Cache |
|---|---|
| BIOS | AMI UEFI BIOS |
| Memory | 1x DDR3L 1866/1600 MT/s non-ECC SO-DIMM up to 8GB |
| Storage Devices | -1x SATA III port -1x mSATA socket (Choose either mSATA or mini-PCIe by BIOS) ~1x Micro-SD socket |
| Watchdog Timer | Programmable by embedded controller |
| Hardware Monitoring | - Temperature (CPU & System) - Voltage (CPU Vcore, 12V, 5V, 3.3V, 1.35V) |
| Expansion Interface | -1x M.2 socket (E key) ~1x full size mini-PCIe socket (Choose either mSATA or mini-PCIe by BIOS) |
| Audio | - High Definition Audio integrated in Intel ® SoC - Realtek ALC892 HDA codec - Audio jack on rear I/O with Line-out and on board pin header with Line-in, Line-out, and Mic-in |
| Ethernet | -2x Intel ® I210IT GbE controller -2x Dual RJ45 connectors on rear I/O |
| Serial Port | -1x RS-232/422/485 on board connector (selected by BIOS) |
| USB | -2x USB 3.0 ports on rear I/O -2x USB 3.0 ports on board with header |
| GPIO | 8-bit configurable controlled by embedded controller |
| Other | TPM 2.0 on board DISPLAY |
| Graphic Controller | - Intel ® Gen 9 Graphics supports DirectX 12, OpenGL ® 4.2 / OpenCL ® 2.0 - Video decode HW acceleration support for H.264, H.265, MPEG2, VC-1/WMV9, JPEG, VP8, and VP9 |
| Display Interface | - LVDS: Dual channel 24bit LVDS on board connector, up to 1920×1200 - VGA:1x DB-15 on board connector, up to 2560×1600 - DP:1x DP port on rear I/O, up to 4096×2160 |
| Dimension | 120mm(L) x 120mm(W); 4.72"(L) x 4.72"(W) |
| Power Supply | DC 12-24V input |
| Environment | - Operation Temperature: -40 °C ~ 85 °C - Storage Temperature: -40 °C ~ 85 °C - Relative Humidity: 5% ~ 95%, non-condensing |
| MTBF | Over 100,000 hours at 40 °C |
| Certification | CE, FCC Class B |
- One NANO-6062 Nano-ITX Main Board
- One Passive Heat Spreader
- One Installation CD
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3E89 | NANO-6062-E3950 | Nano-ITX ESB. Intel Atom ® Quad Core 1.6GHz (12W). w/ DDR3L SO-DIMM / VGA / LVDS / DP / Dual GbE LAN / M.2 / SATA III | add to list – NANO-6062-E3950 |
| AB1-3G40 | NANO-6062-E3940 | Nano-ITX ESB. Intel Atom ® Quad Core 1.6GHz (9W). w/ DDR3L SO-DIMM / VGA / LVDS / DP / Dual GbE LAN / M.2 / SATA III | add to list – NANO-6062-E3940 |
| AB1-3G41 | NANO-6062-E3930 | Nano-ITX ESB. Intel Atom ® Dual Core 1.6GHz (6W). w/ DDR3L SO-DIMM / VGA / LVDS / DP / Dual GbE LAN / M.2 / SATA III | add to list – NANO-6062-E3930 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Remote Portwell Engineering Toolkits [RPET] | Software | 21.68 MB | download – Remote Portwell Engineering Toolkits [RPET] | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 864.26 KB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 11.97 MB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| NANO-6062 | User Manual | 2.58 MB | download – NANO-6062 | User Manual |
