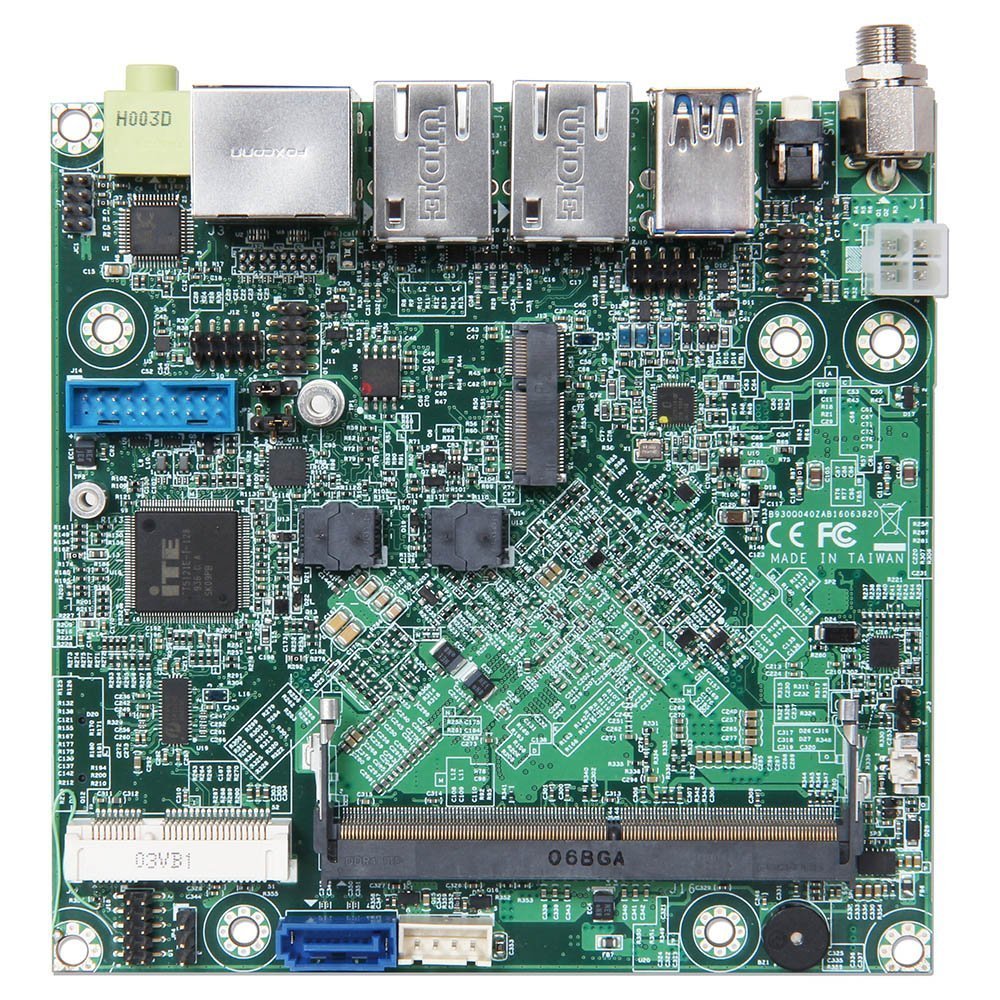

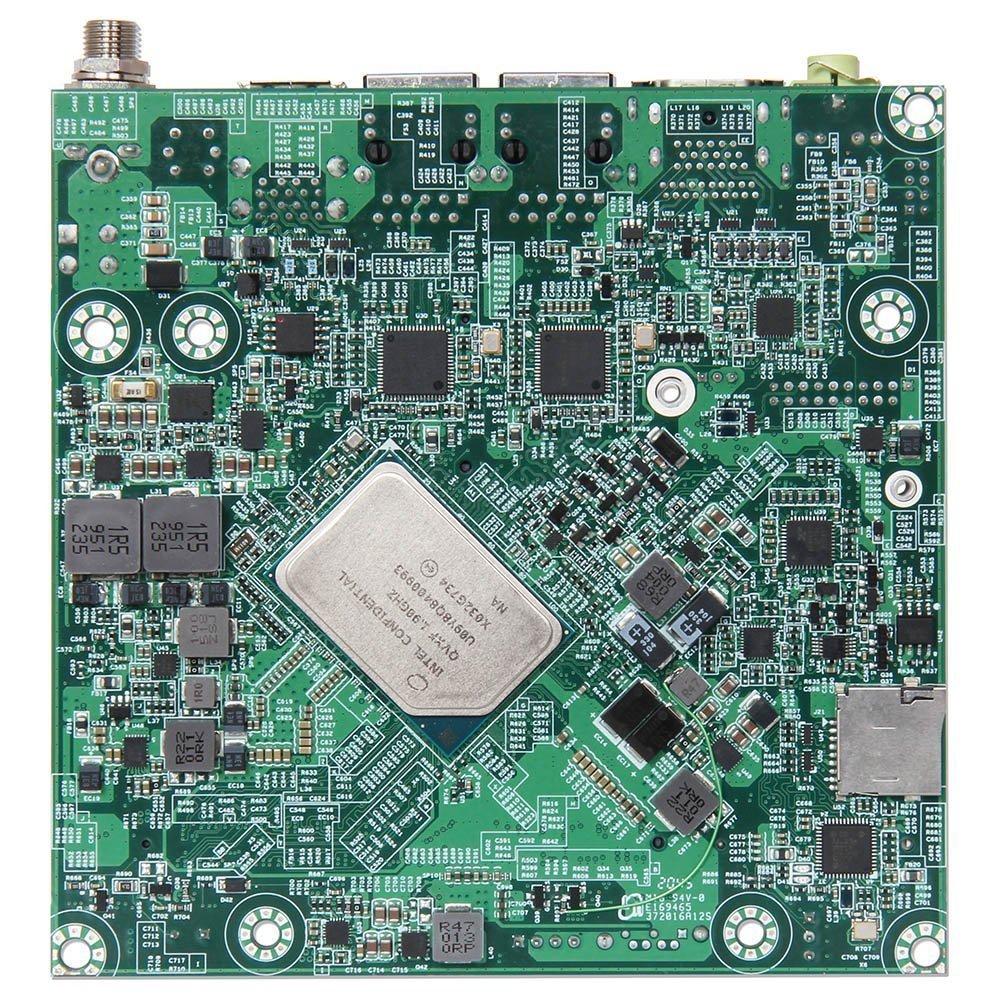

NANO-6063
Intel Atom® x6000E Series SoC based NANO-ITX Board with Triple Display, 2.5 GbE LAN, USB 3.2 Gen 2, M.2, SATA III, Mini-PCIe, and mSATA
- Intel Atom ® x6000E SoC (Formerly Elkhart Lake)
- Supports up to 32GB of DDR4 3200 MT/s non-ECC SO-DIMM
- Triple Display by DP, HDMI ® and VGA
- High-speed dual 2.5 Gigabit Ethernet, high bandwidth I/O interface
- Supports Real-Time Performance: TSN, TCC
- Support a wide -40°C to 85°C industrial temperature range
- On board TPM 2.0
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | - Intel Atom ® Dual/Quad x6000E series processor (up to 12W) |
|---|---|
| BIOS | AMI UEFI BIOS |
| Memory | DDR4 3200 MT/s Non-ECC SO-DIMM up to 32GB |
| Storage Devices | -1x SATA III -1x mSATA socket (Choose either mSATA or mini-PCIe by BIOS) ~1x Micro-SD socket |
| Watchdog Timer | Programmable by embedded controller |
| Hardware Monitoring | System monitor (Voltage, Fan Speed and Temperature) |
| Expansion Interface | -1x M.2 Type E socket -1x full-size mini-PCIe socket (Choose either mSATA or mini-PCIe by BIOS) |
| Audio | - High Definition Audio integrated in Intel ® SoC - Realtek ALC888S HDA codec - Audio jack on rear I/O with Line-out and on board pin header with Line-in, Line-out and Mic-in |
| Ethernet | -1x Intel ® 2.5GbE controller -1x GPY-215 controller -2x RJ45 connectors on rear I/O |
| Serial port | 1x RS-232/422/485 on board connector (selected by BIOS) |
| USB | -2x USB 3.2 Gen 2 ports on rear I/O (10Gbps) ~2x USB 3.2 Gen 2 ports on board with header (10Gbps) |
| GPIO | 8-bit configurable controlled by embedded controller |
| Other | TPM 2.0 on board |
| Graphic Controller | - Intel ® Gen 11 Graphics - Supports Real-time performance with Intel ® Time Coordinated Computing (TCC) and Time Sensitive Networking (TSN) |

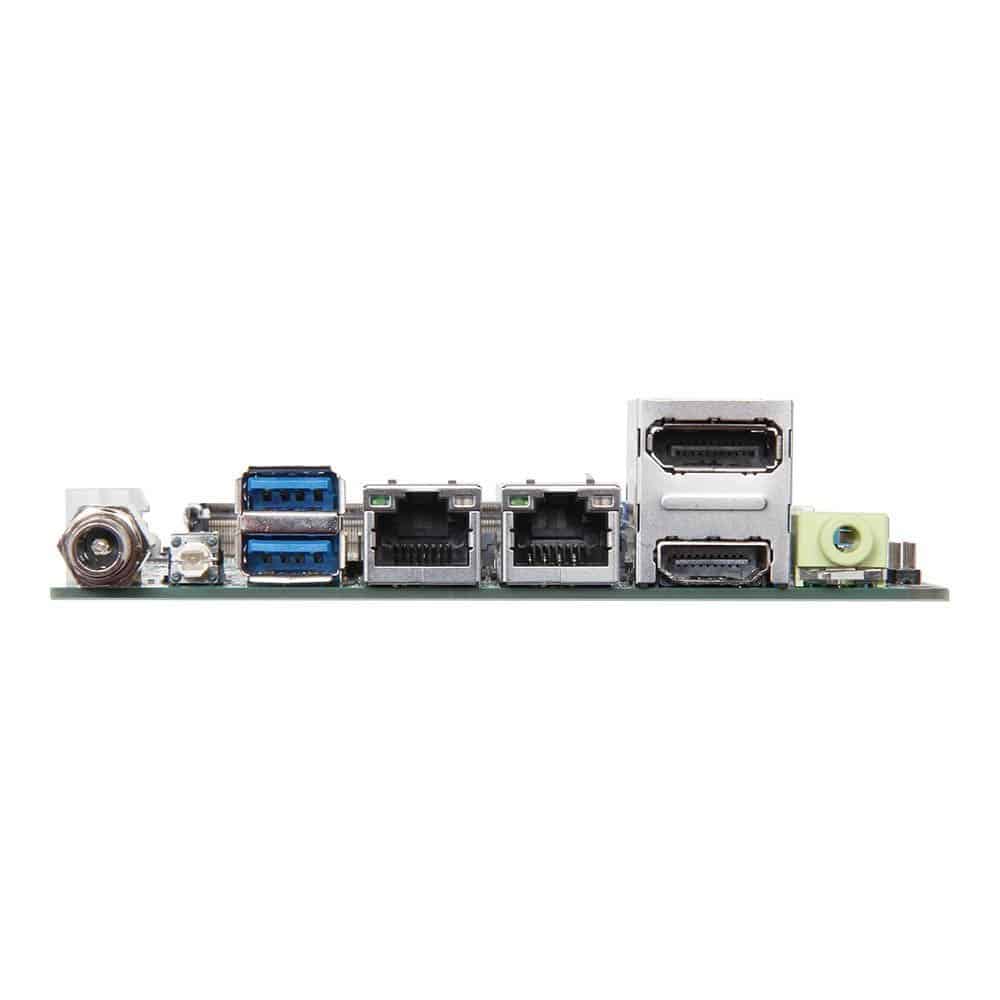

| Display Interface | -1x HDMI ® port on rear I/O, up to 4K resolution -1x DP port on rear I/O, up to 4K resolution -1x VGA on board connector |
| Dimension | 120mm(L) x 120mm(W), 4.72"(L) x 4.72"(W) |
| Power Supply | DC 12V input |
| Environment | - Operating temperature: -40 °C ~ 85 °C - Storage Temperature: -40 °C ~ 85 °C - Relative Humidity: 5 ~ 95%, non-condensing |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3P49 | NANO-6063-I226-x6425E | Nano-ITX ESB. Intel ® Elkhart Lake SoC x6425E / DDR4 SO-DIMM / VGA / HDMI ® / DP / dual 2.5GbE LAN / micro SD | add to list – NANO-6063-I226-x6425E |
| AB1-3P50 | NANO-6063-I226-x6413E | Nano-ITX ESB. Intel ® Elkhart Lake SoC x6413E / DDR4 SO-DIMM / VGA / HDMI ® / DP / dual 2.5GbE LAN / micro SD | add to list – NANO-6063-I226-x6413E |
| AB1-3P51 | NANO-6063-I226-x6211E | Nano-ITX ESB. Intel ® Elkhart Lake SoC x6211E / DDR4 SO-DIMM / VGA / HDMI ® / DP / dual 2.5GbE LAN / micro SD | add to list – NANO-6063-I226-x6211E |
| AB1-3P52 | NANO-6063-I226-x6425RE | Nano-ITX ESB. Intel ® Elkhart Lake SoC x6425RE / DDR4 SO-DIMM / VGA / HDMI ® / DP / dual 2.5GbE LAN / micro SD | add to list – NANO-6063-I226-x6425RE |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| NANO-6063 | User Manual R1.1 | 2.27 MB | download – NANO-6063 | User Manual R1.1 |
| Remote Portwell Engineering Toolkits [RPET] | Software | 21.68 MB | download – Remote Portwell Engineering Toolkits [RPET] | Software |
| NANO-6063 | Application Note | 5.94 MB | download – NANO-6063 | Application Note |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 864.26 KB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 11.97 MB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| NANO-6063 | Datasheet | 1.69 MB | download – NANO-6063 | Datasheet |
