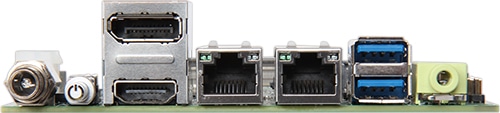

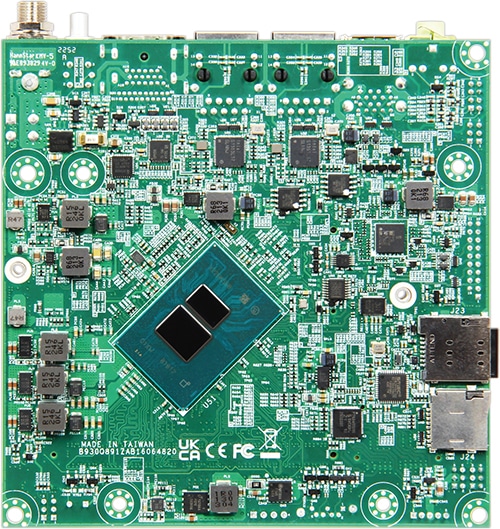

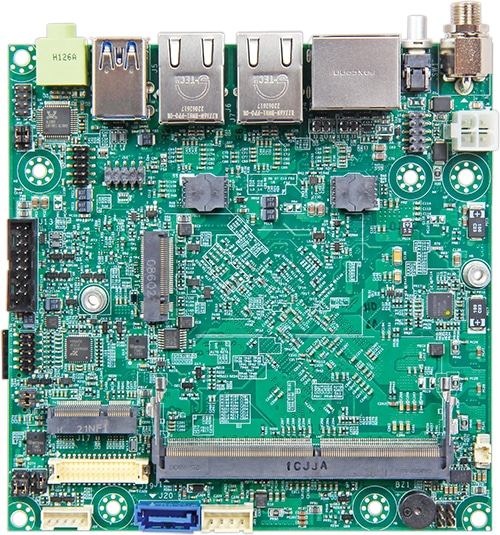

NANO-6064
Intel Atom® x7000E Series SoC based NANO-ITX Board with Triple Display, 2.5GbE LAN, USB 3.2 Gen2, M.2, SATA III
- Support low power Intel Atom ® x7000E Series SoC and high performance Intel ® i3 N-Series SoC
- Up to 16GB DDR4 3200MT/s non-ECC SO-DIMM
- Support multiple display via HDMI ® , DP, LVDS
- High speed I/O with dual 2.5GbE and four USB 3.2
- Multiple expansions with M.2 E Key and B Key
- Support on board TPM 2.0
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | Intel Atom ® x7000E Series Processor (up to 12W) Intel ® Processor N-Series Intel ® Core™ i3 N-Series Processor (up to 15W) |
|---|---|
| BIOS | AMI UEFI BIOS |
| Memory | 1x non-ECC DDR4 3200MT/s SO-DIMM up to 16GB Supports In-Band ECC |
| Storage Devices | 1x SATA III1x M.2 B Key 2280(SATA III)1x micro SD socket |
| Watchdog Timer | Programmable watchdog timer, time out period from 0.5 sec to 254.5 secs |
| Hardware Monitoring | System monitor(Voltage, Fan Speed, Temperature) |
| Expansion Interface | 1x M.2 E Key 22301x M.2 B Key 3052+2280 (share with M.2 2280 SATAIII socket) |
| Audio | HDA controller integrated in Intel ® SoC Realtek ALC897 HDA codec Audio jack on rear I/O (line-out) Onboard pin header (line-in, line-out, mic-in) |
| Ethernet | 2x Intel ® 2.5GbE Controller (I225-LM)2x RJ45 connectors on rear I/O |
| Serial Port | 1x RS-232/422/485 port (selectable via BIOS) |
| USB | 2x USB 3.2 Gen2 on rear I/O2x USB 3.2 Gen1 on board pin header (1x USB 3.2 Gen1 share with M.2 B key socket) |
| Other | TPM 2.0 on board8x GPIO Support Real-time Performance - Intel ® TCC & TSN(only selected skus) |
| Graphic Controller | Intel ® UHD Graphics Gen12 with up to 32 EUs |
| Display Interface | LVDS:1x LVDS on board connector (Dual channel, 24bit, 1920×1200 @60Hz) HDMI ® :1x HDMI ® port on rear I/O (HDMI ® 2.0b, 4096×2160 @ 60Hz) DP:1x DP port on rear I/O (DP 1.4, 4096×2304 @ 60Hz) |
| Dimension | 120mm(L) x 120mm(W), 4.72"(L) x 4.72"(W) |
| Power Supply | DC 12V input |
| Environment | Operating temperature: 0 °C ~ 60 °C Storage Temperature: -40 °C ~ 85 °C Relative Humidity: 5 ~ 95%, non-condensing |
| MTBF | TBD |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3R90 | NANO-6064-x7211E | Nano-ITX ESB. Intel ® Alder Lake-N SoC.w/DDR4 SO-DIMM/LVDS/HDMI ® /DP/dual 2.5 GbE LAN/micro SD | add to list – NANO-6064-x7211E |
| AB1-3R91 | NANO-6064-x7213E | Nano-ITX ESB. Intel ® Alder Lake-N SoC.w/DDR4 SO-DIMM/LVDS/HDMI ® /DP/dual 2.5 GbE LAN/micro SD | add to list – NANO-6064-x7213E |
| AB1-3R89 | NANO-6064-x7425E | Nano-ITX ESB. Intel ® Alder Lake-N SoC.w/DDR4 SO-DIMM/LVDS/HDMI ® /DP/dual 2.5 GbE LAN/micro SD | add to list – NANO-6064-x7425E |
| AB1-3R12 | NANO-6064-N305 | Nano-ITX ESB. Intel ® Alder Lake-N SoC.w/DDR4 SO-DIMM/LVDS/HDMI ® /DP/dual 2.5 GbE LAN/micro SD | add to list – NANO-6064-N305 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Remote Portwell Engineering Toolkits [RPET] | Software | 21.68 MB | download – Remote Portwell Engineering Toolkits [RPET] | Software |
| NANO-6064 | User manual | 3.37 MB | download – NANO-6064 | User manual |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 864.26 KB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 11.97 MB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| NANO-6064 | BIOS 0.0.8 | 13.05 MB | download – NANO-6064 | BIOS 0.0.8 |
| NANO-6064 | EC 0.10 | 94.37 KB | download – NANO-6064 | EC 0.10 |
| NANO-6064 | BIOS 0.0.7 | 13.06 MB | download – NANO-6064 | BIOS 0.0.7 |
