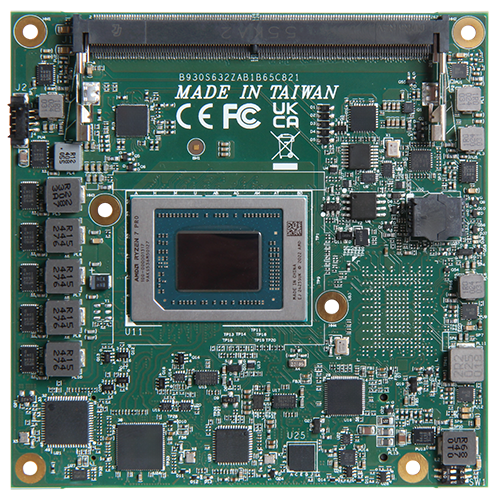

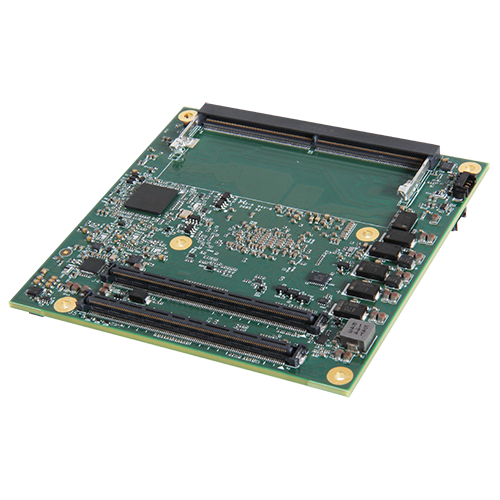

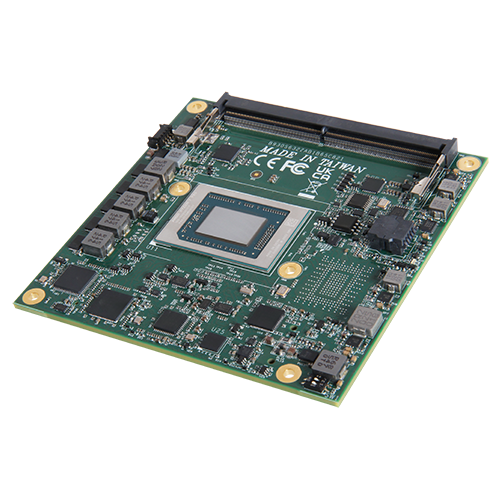

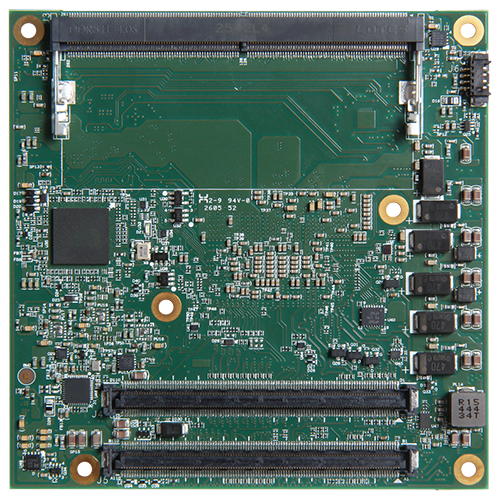

PCOM-B65C
COM Express Type 6 Compact Size Module with AMD Ryzen™ Embedded 8000 Processor, DDR5 SO-DIMM, DDI, eDP, LVDS, VGA, PCIe Gen 4, USB 3.2 Gen2, discrete TPM 2.0, SATA, Out-of-Band (OOB) Management
- AMD Ryzen™ Embedded 8000 Series
- Up to 8 Zen 4 Core, and RDNA 3 up to 6 workgroups
- 2x DDR5-5600 non-ECC / ECC SO-DIMMs up to 96GB, 1x Gen4 x8, 1x Gen4 x2, and 6x Gen4x1
- 4x USB3.2 Gen2, 2x SATA, 3x DDI, VGA, eDP/LVDS
- Supports Out-of-Band (OOB) management and optional onboard PCIe NVMe SSD up to 1TB
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | COM Express Type 6 Compact Size (95 mm x 95 mm) |
|---|---|
| CPU | 8845HS 8840U 8645HS 8640U |
| Core/Thread | 8C/16T 8C/16T 6C/12T 6C/12T |
| Based Frequency | 3.8 3.3 4.3 3.5 |
| Turbo Frequency | 5.1 5.1 18 MB 4.9 |
| Cache | 8 8 6 7 |
| TDP | 45 28 45 28 |
| Graphics EU | 8 WGPs 8 WGPs 4 WGPs 4 WGPs |
| Graphics Max Freq. | 2.7 2.7 2.6 2.6 |
| Memory Type/Speed | 2x DDR5 SO-DIMM up to 96GB 5600MT/s2x DDR5 SO-DIMM up to 96GB 5600MT/s2x DDR5 SO-DIMM up to 96GB 5600MT/s2x DDR5 SO-DIMM up to 96GB 5600MT/s |
| ECC Memory Support | Support Support Support Support |
| Temperature Range | 0 ~ 60 °C (32.0 ~ 140.0 °F) 0 ~ 60 °C (32.0 ~ 140.0 °F) 0 ~ 60 °C (32.0 ~ 140.0 °F) 0 ~ 60 °C (32.0 ~ 140.0 °F) |
| BIOS | AMI uEFI BIOS |
| Memory | 2 x SO-DIMM DDR5 up to 96GB 5600 MT/s |
| SATA | 2 x SATA III (Default) |
| USB | 8 x USB 2.0 (Default)4 x USB 3.2 Gen2 x2 (Default) |
| Ethernet | 1 x 1 GbE Lan (Default) |
| PCIe | 1 x PCIe Gen4 x8 (Default)1 x PCIe Gen4 x2 (Default)6 x PCIe Gen4 x1 (Default) |
| Storage | 1 x support NVMe (Share w/ SATA) |
| Legacy I/O | 8 x GPIO (Default)1 x I2C (Default)1 x SMBus (Default)2 x UART (Default) |
| Security | TPM 2.0 |
| Display | eDP / LVDS eDP up to HBR33840 x 2160@120Hz (Default) eDP / LVDS LVDS (24bit, dual channel)1920 x 1200@60Hz (Option) DDI 1/2/3 eDP up to HBR33840 x 2160@120Hz (Default) DDI 1/2/3 HDMI ® 2.1 (Default) VGA VGA1920 x 1200@60Hz (Share w/ DDI) |
| Dimension | 95 mm x 95 mm (3.74” x 3.74”) |
| Operating Temperature | 0 ~ 60 °C (32.0 ~ 140.0 °F) |
| Storage Temperature | -40 ~ 85 °C (-40.0 ~ 185.0 °F) |
| Certification | CE/FCC Class A |
| OS | Windows 11, Ubuntu 24.04 |
| Portwell Special Feature | PET, RPET |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3T97 | PCOM-B65C-8845HS | Type 6 Module | add to list – PCOM-B65C-8845HS |
| AB1-3T96 | PCOM-B65C-8840U | Type 6 Module | add to list – PCOM-B65C-8840U |
| AB1-3U89 | PCOM-B65C-8645HS | Type 6 Module | add to list – PCOM-B65C-8645HS |
| AB1-3U88 | PCOM-B65C-8640U | Type 6 Module | add to list – PCOM-B65C-8640U |
| AB1-3G22 | PCOM-C60B | Type 6 ATX Carrier | add to list – PCOM-C60B |
| B9972520 | Cooler | add to list – Cooler | |
| B830D450 | Heatsink | add to list – Heatsink | |
| B830D460 | Heatspreader | add to list – Heatspreader |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 864.26 KB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 11.97 MB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| PCOM-B65C | Carrier Design Guide | 1.99 MB | download – PCOM-B65C | Carrier Design Guide |
| PCOM-B65C | User Manual | 3.38 MB | download – PCOM-B65C | User Manual |
| PCOM-B65C | BIOS 0.0.10 | 7.94 MB | download – PCOM-B65C | BIOS 0.0.10 |
| PCOM-B65C | EC 0.8 | 496.48 KB | download – PCOM-B65C | EC 0.8 |
| PCOM-B65C | Datasheet | 485.07 KB | download – PCOM-B65C | Datasheet |
| PCOM-B65C | BIOS 0.0.10 | 7.65 MB | download – PCOM-B65C | BIOS 0.0.10 |
Explore Our products
More in this category
Type 6

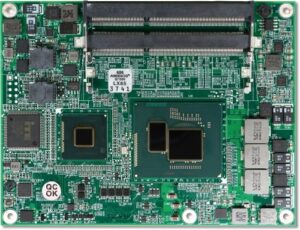

PCOM-B635VG
