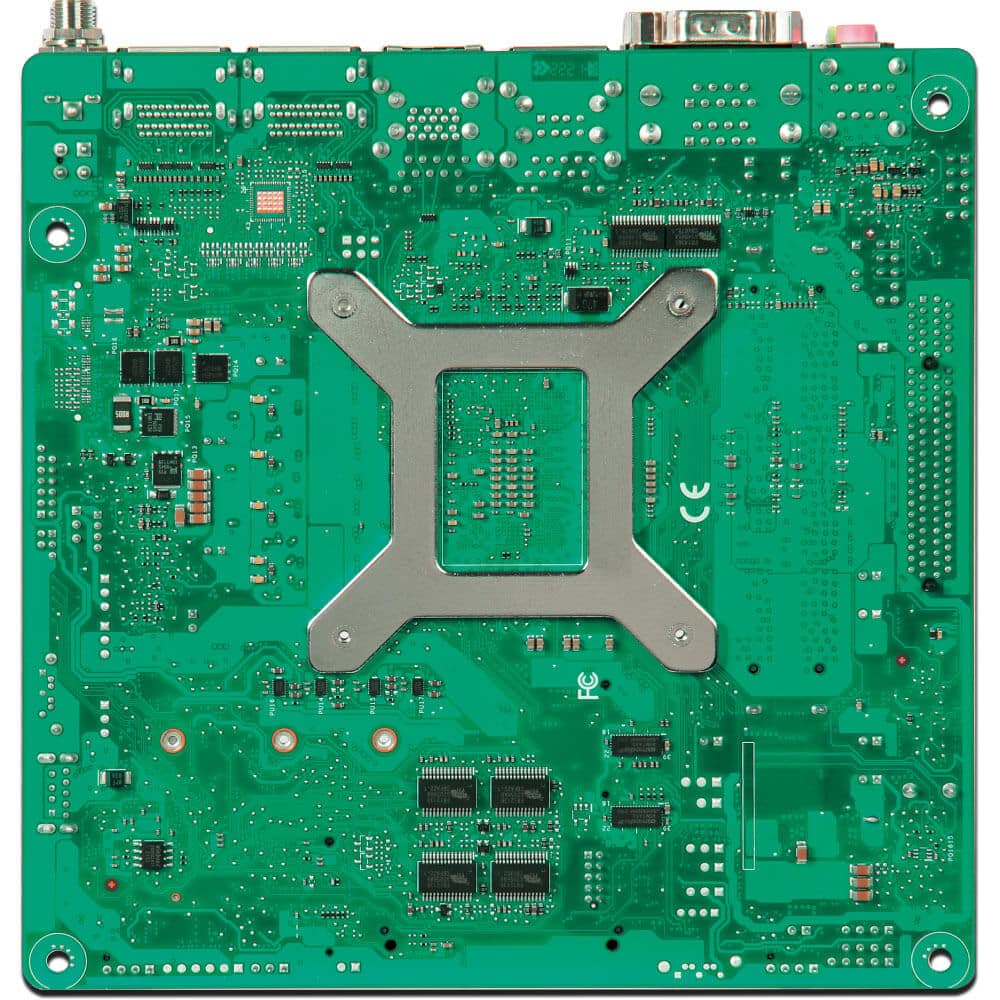

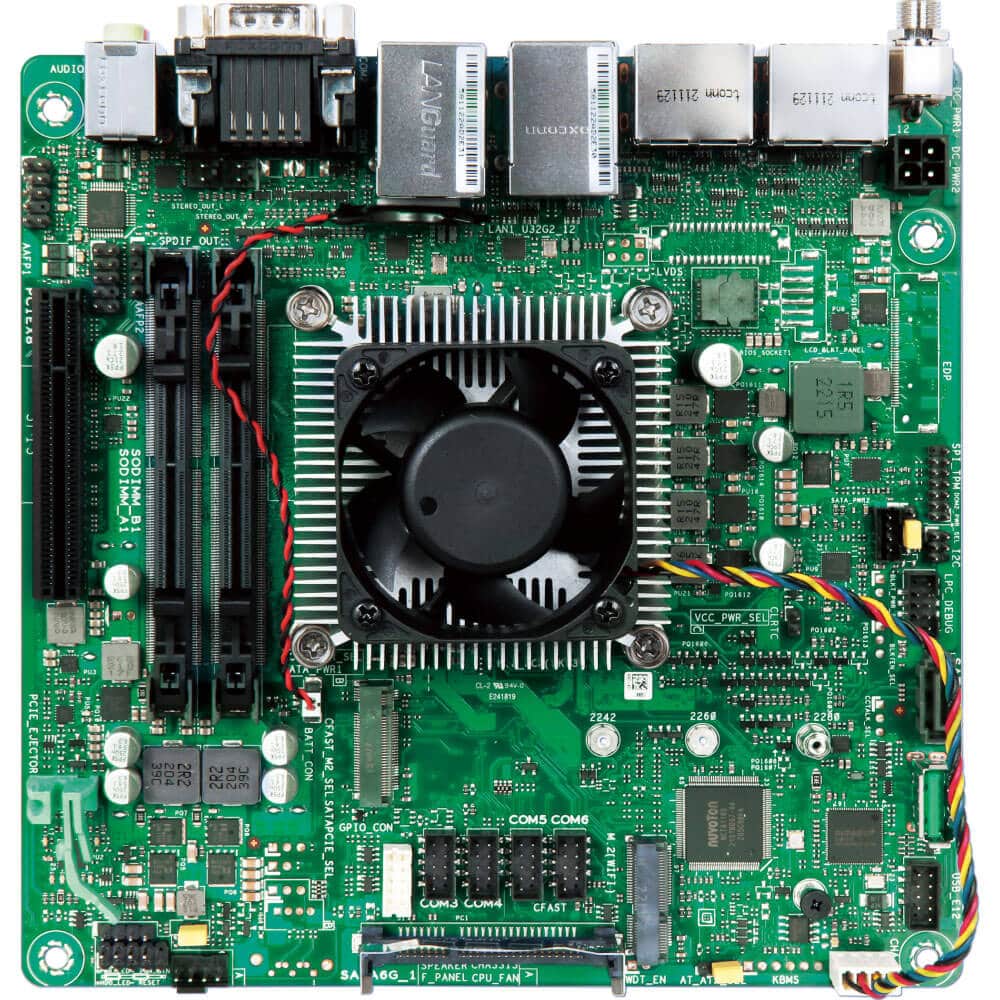

WADE-7220-R2314
AMD Ryzen™ Embedded R2314 APU based Mini-ITX Board with DP, Dual GbE, USB 3.2 Gen2, SATA III, M.2, CFAST
- AMD Ryzen™ Embedded R2314 APU
- Two SO-DIMM support DDR4 DRAM up to 32GB
- Support dual Ethernet, 6x COM Ports
- Support 2x USB 3.2 Gen2, 1x USB 3.2 Gen1, 4x USB 2.0, 1x SATAIII port
- Supports 1x PCIe Gen3 x8, 1x CFAST, 2x M.2 socket (Key M & Key E)
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | AMD Ryzen™ Embedded R2314 APU, 2.1 GHz (3.5 GHz turbo), 15W(12-35W) TDP |
|---|---|
| Chipset | N/A |
| BIOS | AMI uEFI BIOS |
| Memory | Support2x SO-DIMM sockets Up to 32GB DDR4 2667 MHz memory Support ECC |
| Storage Devices | 1x SATAIII ports |
| Watchdog Timer | Programmable watchdog timer |
| Hardware Monitoring | Temperature (CPU & System) |
| Expansion Interface | 1x PCIe x8 Gen 31x M.2 Key E 2230 with PCIe x1 and USB 2.0 for Wireless1x M.2 Key M 2242/2260/2280 with PCIex2 and SATA signal for SSD1x CFAST* *If CFAST is enabled, M.2 SATA will be disabled, and vice versa. You may configure this setting in the BIOS. |
| Audio | Intel ® High Definition Audio interface Realtek ® ALC897 High Definition Audio Audio jack support Line-out/Mic-in2x 2W Stereo Speaker output1x 5.1 channel internal pin header |

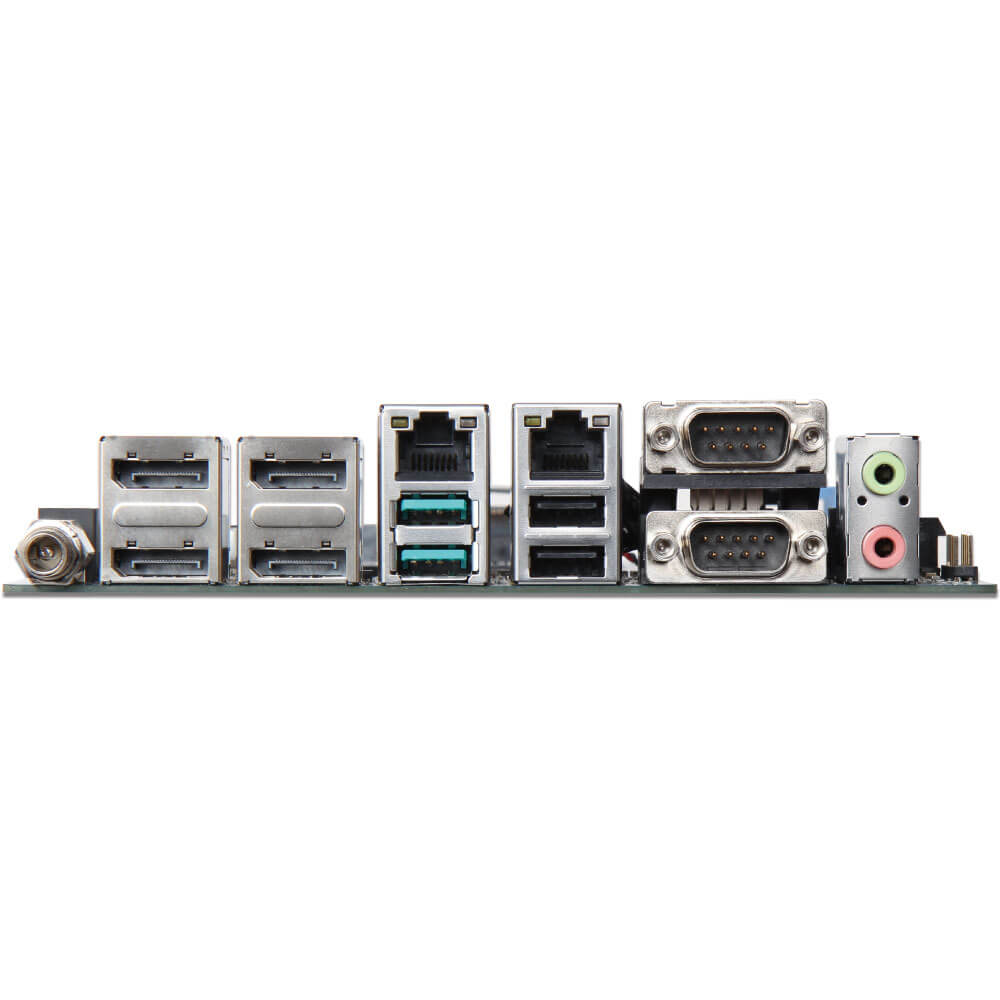

| Ethernet | 2x RJ45 connectors on rear I/O (Realtek ® RTL8111H) |
| Serial port | 2x RS232/422/485 port on rear I/O4x RS232 ports on pin header |
| USB | 2x USB 3.2 Gen2 on rear I/O2x USB 2.0 on rear I/O1x USB 3.2 Gen1 Type A vertical connector2x USB 2.0 on pin header |
| GPIO | 8-bit GPI/GPO |
| Graphic Controller | AMD Radeon Vega 6 Graphics |
| Display Interface | DP1: resolution up to 3840×2160 DP2: resolution up to 3840×2160 DP3: resolution up to 3840×2160 DP4: resolution up to 3840×2160 |
| Dimension | 170mm(L) x 170mm(W) |
| Power Supply | 12 ~ 24V DC in (1 x external DC jack;1 x internal 4 pin power connector |
| Environment | Operation Temperature: 0 °C to 60 °C Storage Temperature: -20 °C to 80 °C Relative Humidity: 10% to 95%, non-condensing |
| MTBF | Over 100,000 hours at 40 °C |
- One I/O shield
- One SATA cable
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3R27 | WADE-7220-R2314 | Mini-ITX ESB.AMD Ryzen Embedded R2314 w/DDR4/DP/dual GbE LAN/SATA | add to list – WADE-7220-R2314 |
