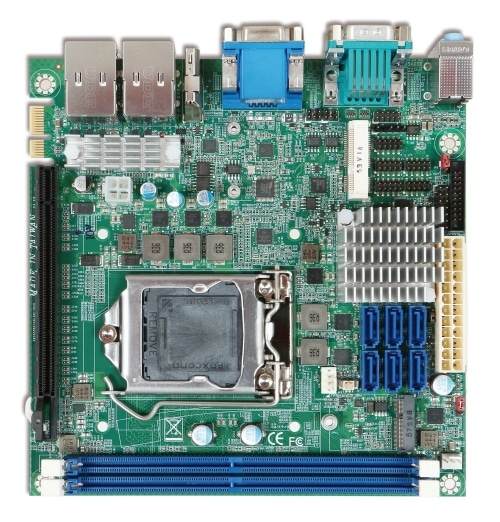

WADE-8017
Leading Desktop Intel® 7th and 6th Gen Core™ Processors (former Kaby Lake/Skylake) Mini-ITX with DDR4 SDRAM, Triple Displays, 2x GbE LAN ports, 6x COM Ports
- Intel ® 7 th and 6 th Gen Core™ Processors support
- 2x long-DIMM support DDR4 ECC/Non- ECC SDRAM up to 32GB
- Display : VGA/DP/HDMI ®
- 1x PCIe x1 Golden finger support SEB 6x SATA III ports support RAID 0/1/5/10 H110 just support 4x SATA port and not support RAID Function
- 1x PCIe x16 (Gen3), one M.2 type E socket (H110 not support)
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | Mini-ITX |
|---|---|
| CPU | Intel ® 7 th and 6th Gen Core™ Processors CPU in LGA1151 package |
| Chipset | Intel ® Q170/H110/ C236 PCH |
| BIOS | AMI UEFI |
| Memory | 2x DDR4 DIMM up to 32GB |
| Expansion | 1x PCIe x16 slot1x PCIe x1 Golden finger1x M.2 type E socket1x mini-PCIe socket |
| Display | DP/HDMI ® /VGA |
| Audio | Realtek ALC892 HDA codec |
| LAN | 2x GbE |
| Serial Port | 2x RS-232/422/4854x RS-232 |
| USB | 4x USB 3.02x USB 2.0 |
| Storage Device | 6x SATA (H110 just4x SATA) |
| GPIO | 8 bit |
| Others | N/A |
| Dimension | 170 x 170mm |
- One Driver CD
- One SATA Cable
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3D16 | WADE-8017 | Mini-ITX ESB.Q170 w/o ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI ® /Dual GbE/COM/Audio/USB | add to list – WADE-8017 |
| AB1-3D75 | WADE-8017-H110 | Mini-ITX ESB.H110 w/o ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI ® /Dual GbE/COM/Audio/USB | add to list – WADE-8017-H110 |
| AB1-3D76 | WADE-8017-C236 | Mini-ITX ESB.C236 w/ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI ® /Dual GbE/COM/Audio/USB | add to list – WADE-8017-C236 |
| AB1-3G16 | WADE-8017-kBL | Mini-ITX ESB.Q170 w/ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI ® /Dual GbE/COM/Audio/USB | add to list – WADE-8017-kBL |
| AB1-3G13 | WADE-8017-C236-kBL | Mini-ITX ESB.C236 w/ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI ® /Dual GbE/COM/Audio/USB | add to list – WADE-8017-C236-kBL |
| AB1-3G12 | WADE-8017-H110-kBL | Mini-ITX ESB.H110 w/o ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI ® /Dual GbE/COM/Audio/USB | add to list – WADE-8017-H110-kBL |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Remote Portwell Engineering Toolkits [RPET] | Software | 21.68 MB | download – Remote Portwell Engineering Toolkits [RPET] | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 864.26 KB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 11.97 MB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| WADE-8017 | Datasheet | 1.82 MB | download – WADE-8017 | Datasheet |
