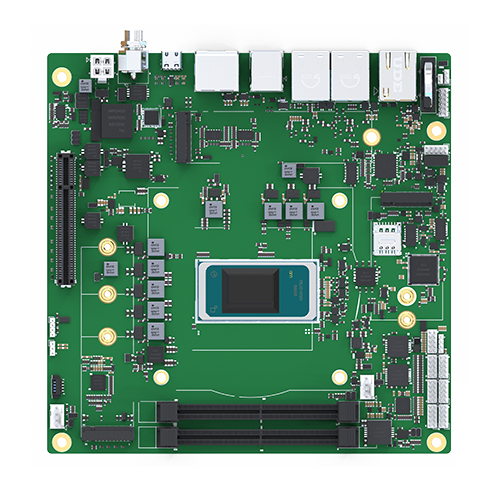

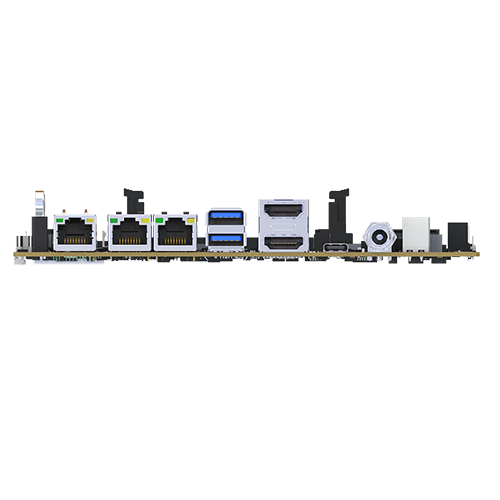

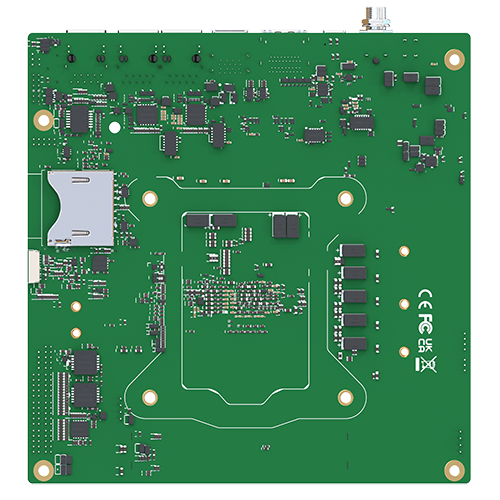

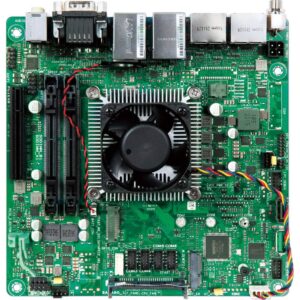

WADE-7220-R2314
AMD Ryzen™ Embedded R2314 APU based Mini-ITX Board with DP, Dual GbE, USB 3.2 Gen2, SATA III, M.2, CFAST
- New
WADE-807A
- Intel ® New Gen Core ultra processor ( Panther Lake-H ) 15W~65W
- AI Performance up to 180 TOPS
- Support DDR5 non-ECC SO-DIMM 7200MT/s up to 64GB
- Support 2x HDMI ® , 1x USB-C (DP Alt)
- Support OOB function Remote PWR on/off, Remote Reset, SOL, BIOS recovery
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | Intel ® Core™ Ultra Processors (Series 3), 65W TDP |
|---|---|
| BIOS | AMI uEFI BIOS |
| Memory | Support up to 64GB DDR5 7200 MT/s on 2 non-ECC SODIMM |
| Watchdog Timer | Programmable, time out period from 1 s to 255 s |
| Graphic Controller | Intel ® Xe LPG Graphics |
| Ethernet | 1 x Intel ® I210AT with GbE LAN 10/100/1000 Mbps (Support OOB W/ BIOS recovery, Power On/Off, Reset, SOL)2 x Intel ® I226V with 2.5 GbE LAN 10/100/1000/2500 Mbps |
| USB | 2 x USB 3.2 Gen2 Type A1 x USB4 Type C (Support DP 1.4a display output) |
| Display | 2 x HDMI ® 2.1 8192 × 4320@60Hz |
| PCIe | 1 x PCIe Gen5 x8 Open Slot |
| Audio | 1 x Pin Header support Line-in , Line-out , Mic-in w/ Realtek ALC897 |
| Serial Port | 4 x Pin Header support RS-2322 x Pin Header support RS-232/422/485 |
| USB | 2 x USB 2.0 Pin Header |
| M.2 | 1 x M.2 M Key 2242 2260 2280 support PCIe x41 x M.2 M Key 2280 support PCIe x41 x M.2 B Key 3042 3052 support USB 2.0, USB 3.2, PCIe x1 |
| SIM | 1 x Nano SIM slot |
| Security | TPM 2.0 ( On Board IC ) |
| GPIO | 1 x 8-bit Digital I/Os |
| Others | 1 x SMBus |
| Dimension | 170 x 170 mm (6.69" x 6.69") |
| Power Supply | DC Jack , 4-pin ATX connector 12 ~ 24V |
| Operating Temperature | 0 ~ 60 °C (32.0 ~ 140.0 °F) |
| Storage Temperature | -40 ~ 85 °C (-40.0 ~ 185.0 °F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Certification | CE/FCC |
| OS | Windows 11 IoT Enterprise 2024 LTSC |
| Portwell Special Feature | OOB API, PET, RPET |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| TBD | WADE-807A | Mini-ITX ESB.Intel ® Panther Lake H484 4Xe. w/o ECC BGA.w/DDR5 SO-DIMM /USB-C/HDMI ® /Triple GbE/COM/Audio/USB | add to list – WADE-807A |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| WADE-807A | Datasheet | 646.38 KB | download – WADE-807A | Datasheet |
Explore Our products
More in this category
Mini-ITX Motherboards

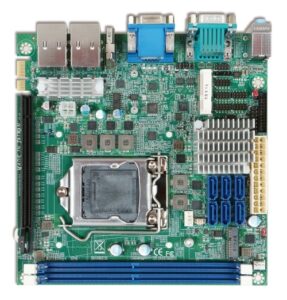

WADE-8017
Leading Desktop Intel® 7th and 6th Gen Core™ Processors (former Kaby Lake/Skylake) Mini-ITX with DDR4 SDRAM, Triple Displays, 2x GbE LAN ports, 6x COM Ports
Mini-ITX Motherboards

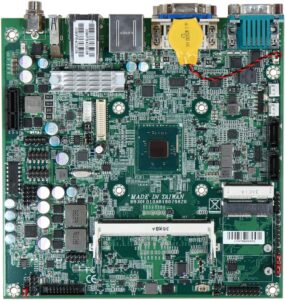

WADE-8079
