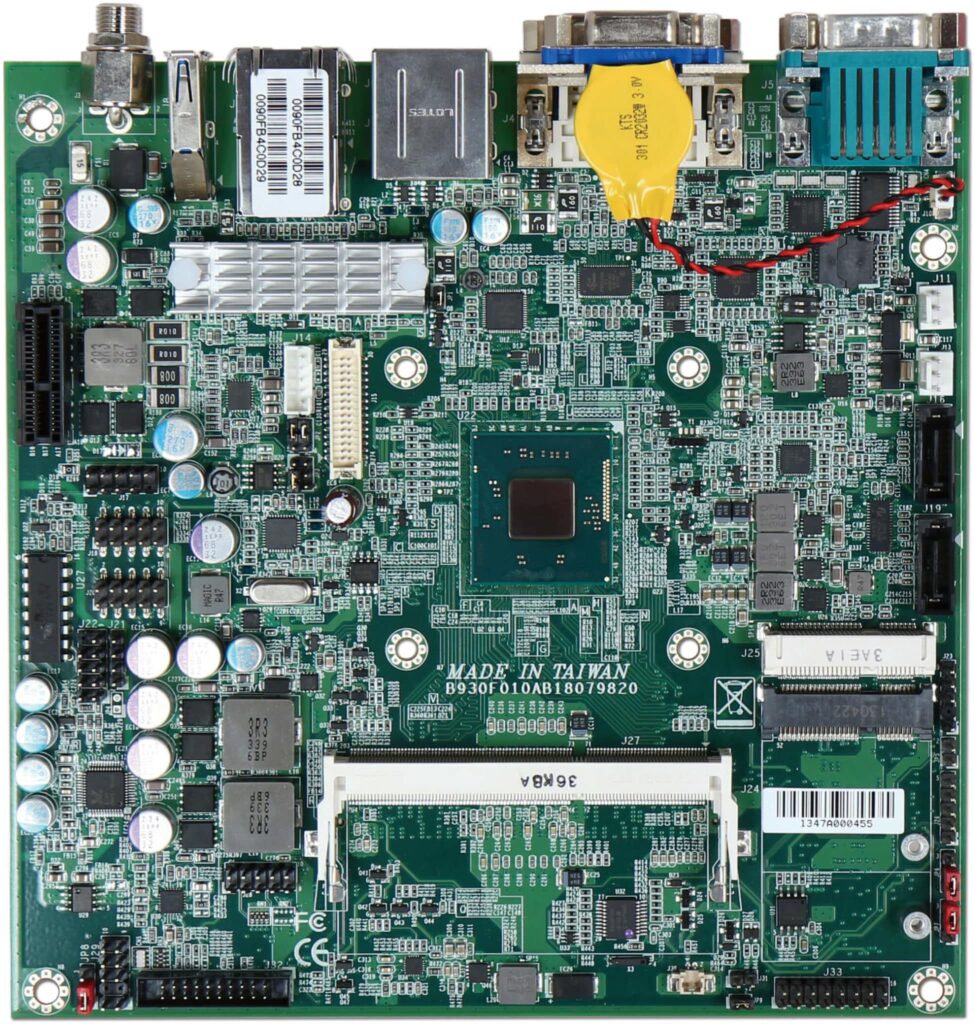

WADE-8079
Intel® Atom® E3800 SoC based Mini-ITX Board with VGA, DP, DVI, LVDS, Gigabit Ethernet, Audio, USB 3.0, SATA and 2x mini-PCIe slot with mSATA interface
- Latest Intel Atom ® embedded processor Expansion Interface provides cost effective solutions with low power and quad core processor technology
- Support two DDR3L 1066/1333MT/s SDRAM, up to 8GB (E3845/ E3826)
- Support one DDR3L 1066/1333MT/s SDRAM, up to 4GB (E3815)
- Supports VGA/DVI/DP&LVDS (Via switch)
- 2x SATA II Ports (1x Switch Mini-PCIe)
- Total 5 USB ports (1x USB 3.0 Ports & 4x USB 2.0 Ports)
Platform Overview
About this series
WADE-8079 is based on Intel® Atom™ processor E3800 product family with memory and PCI Express controller integrated to support two-channel DDR3L memory and PCI Express 2.0 lanes. Portwell has taken advantage of such technology to furnish a series of products that meets multiple industrial requirements for cost effectiveness, reliable performance and a high level of data integrity and uptime.
| AB1-3B39 | (R).WADE-8079-E3845 Mini-ITX ESB.Intel® Bay Trail(Vallyview-I E3845 QC 1.9GHz processor) on Board .w/DDR3L SO-DIMM/VGA/DVI/DP/Dual GbE Lan/COM/ USB |
- One Driver CD
- One WADE-8079 motherboard
- One SATA cable
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| CPU | Intel Atom ® Processor E3815 (1 x 1.46 GHz, 512 KB L2, 5 W) Intel Atom ® Processor E3825 (2 x 1.33 GHz, 1 MB L2, 6 W) Intel Atom ® Processor E3826 (2 x 1.46 GHz, 1 MB L2, 7 W) Intel Atom ® Processor E3827 (2 x 1.75 GHz, 1 MB L2, 8 W) Intel Atom ® Processor E3845 (4 x 1.91 GHz, 2 MB L2, 10 W) |
|---|---|
| Form Factor | Mini-ITX |
| Chipset | SoC (System-On-Chip) |
| DRAM | Up to 8 GB DDR3L SO-DIMM |
| Graphic Controller | Intel ® HD Graphics 4600 (CPU) |
| Display Interface | DVI (1920×1200), DP (2560×1600), VGA (1920×1200), LVDS (1600×1200) |
| Storage | 2x SATA II (3.0Gb/s) |
| Network | 2x GbE Intel ® I210IT |
| Expansion | 1x Half-Size mini PCIe(USB, PCIe) |
| Bus Interface | one PCIe x1 slot TPM Module |
| Serial Interface | 3x RS2321x RS232/422/485 |
| USB | 1x USB 3.04x USB 2.0 |
| Audio | Intel ® HD Audio, Realtek ALC892 |
| Security | TPM Module |
| Miscellaneous | 2x PS/2 via pin header, GPIO 8bit,Watchdog Timer,HW monitoring temperature & voltage |
| Firmware | Phoenix ® SPI |
| Power Requirement | ACPI 3.0 / APM 1.2 |
| Power from W | 12V - 24V DC-In |
| Extended Temperature | -40 °C to -85 °C |
| Dimensions | 170×170 mm |
| Operating Temperature | 0 °C - 60 °C |
- One WADE-8079 motherboard
- One Driver CD
- One SATA cable
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3B39 | WADE-8079-E3845 | Mini-ITX ESB.Intel ® Bay Trail(Vallyview-I E3845 QC 1.9GHz processor) on Board .w/DDR3L SO-DIMM/VGA/DVI/DP/Dual GbE Lan/COM/USB | add to list – WADE-8079-E3845 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Remote Portwell Engineering Toolkits [RPET] | Software | 21.68 MB | download – Remote Portwell Engineering Toolkits [RPET] | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 864.26 KB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 11.97 MB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| WADE-8079 | Datasheet | 1.83 MB | download – WADE-8079 | Datasheet |
