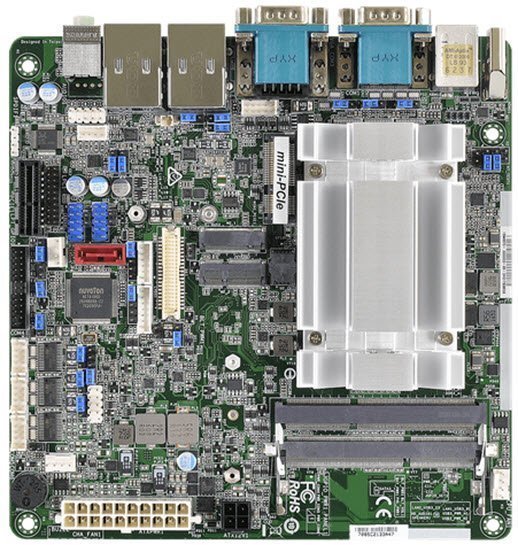

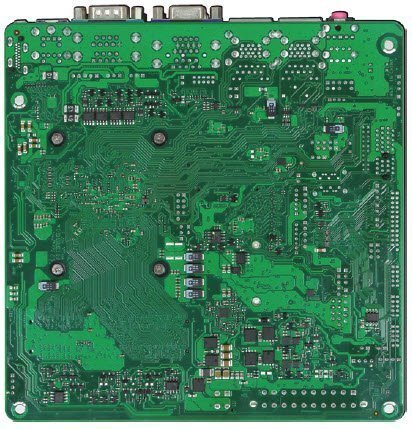

WADE-8171
Intel® Celeron® Processor N3150/N3160 Based Mini-ITX Board with VGA, HDMI®, LVDS, Dual GbE, USB 3.0, SATA III, mini-PCIe, and mSATA
- Intel ® Pentium ® /Celeron ® Braswell SoC Processor
- Supports Dual Channel DDR3L 1333/1600 MT/s, 2 x SO-DIMM, up to 8GB system memory
- 1x HDMI ® , 1x D-Sub, 1x Dual Channel 24- bit LVDS
- 4x USB 3.0, 4x USB 2.0, 2x SATA III ports
- Supports 1 x mini-PCIe, 1 x mSATA(shared)
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | Mini-ITX |
|---|---|
| CPU | Intel Atom ® N3000 Family |
| Chipset | N/A |
| BIOS | AMI UEFI |
| Memory | 2x DDR3L SO-DIMM up to 8GB |
| Expansion | 1x PCIe x1 slot2x mini-PCIe socket |
| Display | VGA/HDMI ® /LVDS |
| Audio | Realtek ALC887 HDA codec |
| LAN | 2x GbE |
| Serial Port | 2x RS-232/422/4854x RS-232 |
| USB | 4x USB 3.04x USB 2.0 |
| Storage Device | 2x SATA |
| GPIO | 8 bit |
| Others | N/A |
| Dimension | 170 x 170mm |
- 1x WADE-8171 motherboard
- 1x I/O shield
- 1x SATA cable
- 1x Driver CD
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3D63 | WADE-8171-N3150 | Mini-ITX ESB.Intel ® Braswell Quad Core Celeron ® 2.08GHz (6W). w/DDR3L/VGA/LVDS/ HDMI ® /dual GbE LAN/SATA | add to list – WADE-8171-N3150 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| WADE-8171 | Datasheet | 1.54 MB | download – WADE-8171 | Datasheet |
| WADE-8171 | BIOS R1.00.E3 | 3.20 MB | download – WADE-8171 | BIOS R1.00.E3 |
| WADE-8171 | User Manual | 2.25 MB | download – WADE-8171 | User Manual |
