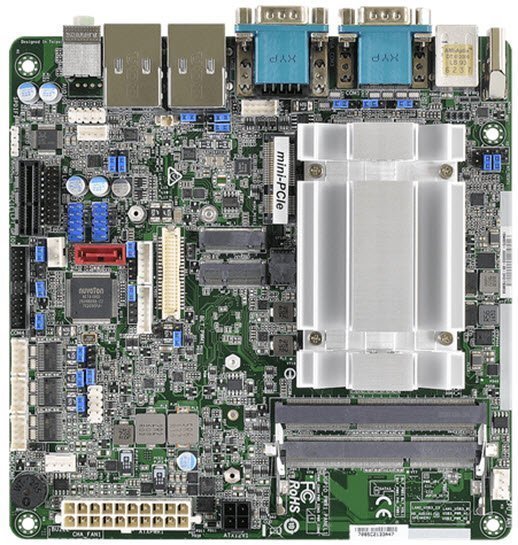

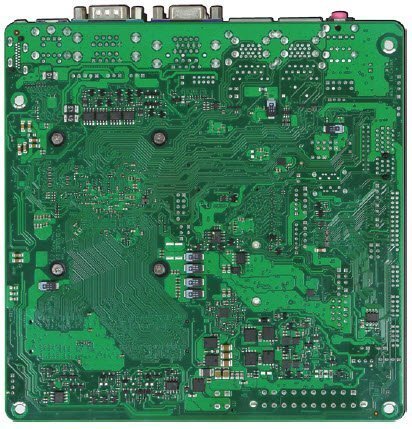

WADE-8172
Intel® Celeron® Processor N3350 Based Mini-ITX Board with VGA, HDMI®, LVDS, Dual GbE, USB 3.0, SATA III, Mini PCIe, M.2
- Intel ® Apollo Lake SoC Processor
- Supports Dual Channel DDR3L 1333/1600MHz, 2 x SO-DIMM, up to 8GB system memory
- 1 x HDMI ® , 1 x D-Sub, 1 x Dual Channel 24-bit LVDS
- 4 xUSB 3.0, 4 x USB 2.0, 1 x SATA3 port
- Support one PCIe x1(Gen2), one M.2 Key E 2230 with PCIe x1 and USB(Shared) for Wireless, one M.2 Key M 2260/2280 with SATA signal for SSD and one full/half size Mini PCIe socket with PCIe x1 and USB(Shared)
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | Mini-ITX |
|---|---|
| CPU | Intel ® Celeron ® processor N3350 in FCBGA1296 package |
| Chipset | N/A |
| BIOS | AMI UEFI |
| Memory | up to 8 GB DDR3L 1600/1333 MHz memory (non-ECC) on2x 204-pin SO-DIMM socket |
| Expansion | -1x PCIe x1 Gen 2 ~1x M.2 Key E 2230 with PCIe x1 and USB(Shared) for Wireless -1x M.2 Key M 2260/2280 with SATA signal for SSD -1x full/half size Mini PCIe socket with PCIe x1 and USB(Shared) |
| Display | LVDS/HDMI ® /VGA |
| Audio | Realtek ALC887 HDA codec |
| LAN | 2x GbE |
| Serial Port | 2x RS-232/422/4854x RS-232 |
| USB | 4x USB3.04x USB2.0 |
| Storage Device | 1x SATA III |
| GPIO | 8 bit |
| Others | N/A |
| Dimension | 170 x 170mm |
- One Driver CD
- One SATA cable
- One I/O shield
- One WADE-8172 motherboard
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3F78 | WADE-8172-N3350 | Mini-ITX ESB.Intel ® Apollo lake SoC Processor N3350 w/DDR3L/ VGA/LVDS/HDMI ® /dual GbE LAN/SATA | add to list – WADE-8172-N3350 |
