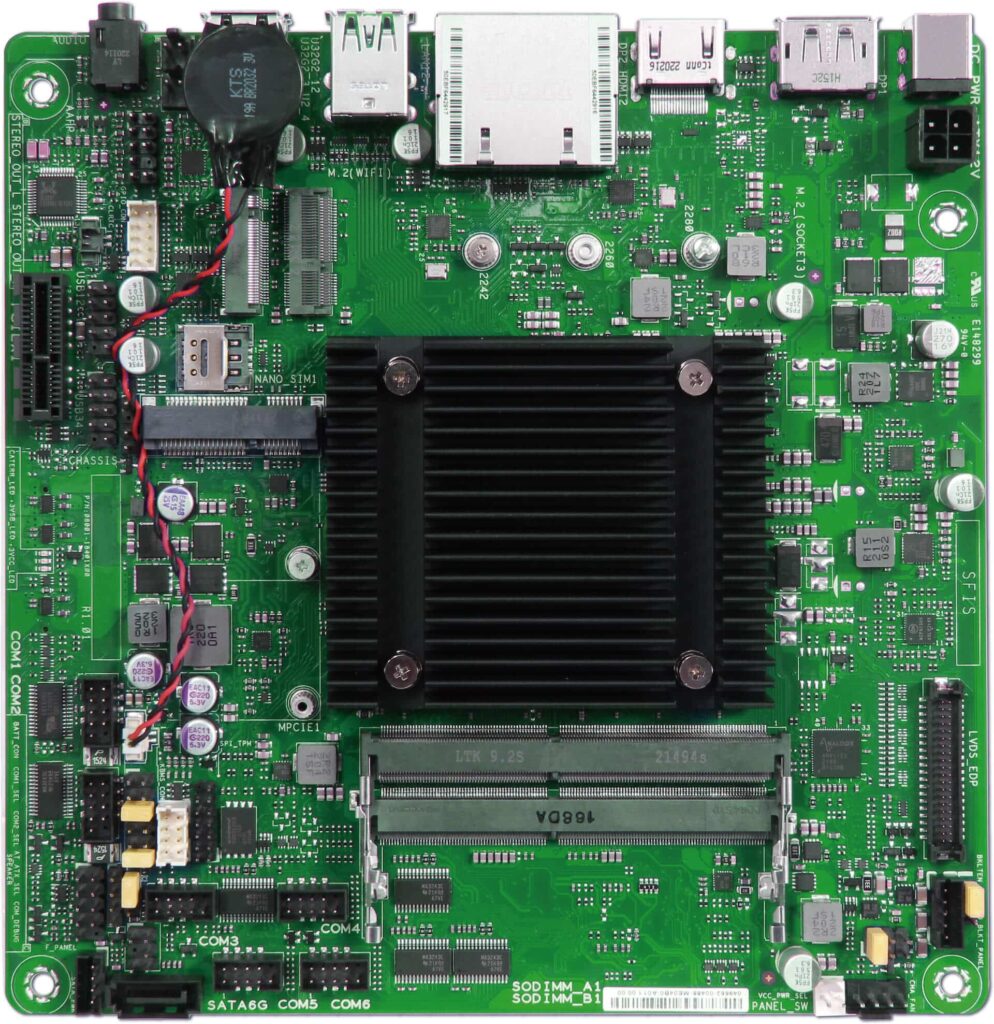

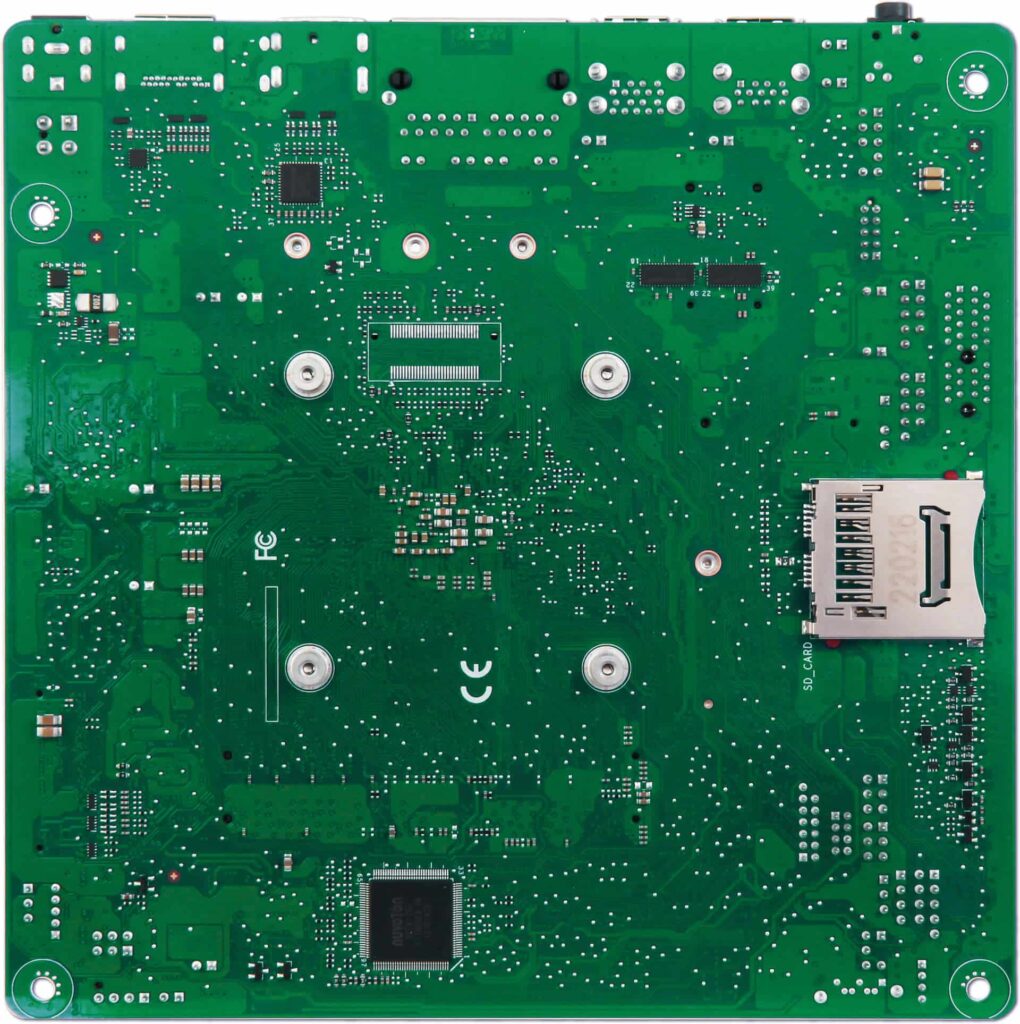

WADE-8173-J6412
Intel® Celeron® Processor J6412 based Mini-ITX Board with HDMI®, DP, LVDS/eDP, Dual GbE, USB 3.2 Gen2, SATA III, Mini PCIe, M.2
- Intel ® Celeron ® Processor J6412(formerly Elkhart Lake)
- Two SO-DIMM support DDR4 DRAM up to 32GB
- Support dual Ethernet, 6x COM Ports
- Support 3x USB 3.2 Gen2, 5x USB 2.0, 1x SATAIII port
- Support one PCIe x1(Gen3), one M.2 Key E 2230 with PCIe x1 and USB2.0 for Wireless, one M.2 Key M 2242/2260/2280 with PCIe x2 and SATA signal for SSD and one full/half size Mini PCIe socket with PCIe x1(with SIM holder) and one Full size SD card slot
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | Intel ® Celeron ® processor J6412 in FCBGA1493 package, 2.0 GHz (2.6 GHz turbo), 1.5 MB L2 Cache, 10W TDP |
|---|---|
| Chipset | N/A |
| BIOS | AMI uEFI BIOS |
| Memory | Support2x SO-DIMM sockets up to 32GB DDR4 3200 MHz non-ECC memory |
| Storage Devices | 1x SATAIII ports |
| Watchdog Timer | Programmable watchdog timer |
| Hardware Monitoring | Temperature (CPU & System) |
| Expansion Interface | 1x PCIe x1 Gen 31x M.2 Key E 2230 with PCIe x1 and USB 2.0 for Wireless1x M.2 Key M 2242/2260/2280 with PCIex2 and SATA signal for SSD1x full/half size Mini PCIe socket with PCIe x1(with SIM holder)1x Full size SD card slot |
| Audio | Intel ® High Definition Audio interface Realtek ® ALC897 High Definition Audio1x audio jack support Line-out |

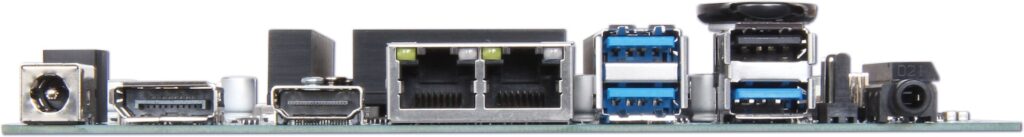

| Ethernet | 2x RJ45 connectors on rear I/O (Realtek ® RTL8111H) |
| Serial port | 1x RS232/422/485 port on pin header5x RS232 ports on pin header |
| USB | 3x USB 3.2 Gen2 on rear I/O1x USB 2.0 on rear I/O4x USB 2.0 on pin header |
| GPIO | 8-bit GPI/GPO |
| Graphic Controller | Integrated Intel ® UHD Graphics Supports DirectX 12, OpenGL 4.5, OpenCL 1.2 |
| Display Interface | Triple Displays DP1: resolution up to 4096×2160 DP2: resolution up to 4096/2160 (colay with HDMI ® ) HDMI ® : resolution up to 3840×2160 (Default) LVDS: resolution up to 1920×1200 (Default) eDP: resolution up to 4096×2160 (colay with LVDS) |
| Dimension | 170mm(L) x 170mm(W) |
| Power Supply | 12V DC in (1x external DC jack;1x internal 4 pin power connector) |
| Environment | Operation Temperature: 0 °C to 60 °C Storage Temperature: -20 °C to 80 °C Relative Humidity: 5% to 95%, non-condensing |
| MTBF | Over 100,000 hours at 40 °C |
- One WADE-8173-J6412 motherboard
- Two I/O shield
- Two SATA cable
- One SATA power cable
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3P59 | WADE-8173-J6412 | Mini-ITX ESB.Intel ® Elkhart lake SoC Processor J6412 w/DDR4/DP/LVDS/HDMI ® /dual GbE LAN/ SATA | add to list – WADE-8173-J6412 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Remote Portwell Engineering Toolkits [RPET] | Software | 21.68 MB | download – Remote Portwell Engineering Toolkits [RPET] | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 864.26 KB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 11.97 MB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| WADE-8173-J6412 | BIOS PORTWELL_10900 | 5.71 MB | download – WADE-8173-J6412 | BIOS PORTWELL_10900 |
