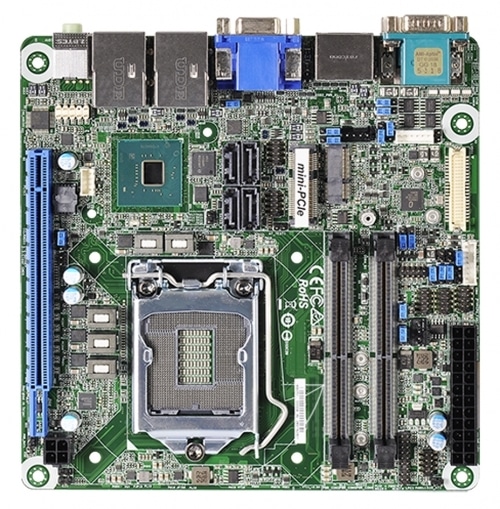

WADE-8211-Q370
Leading Desktop Intel® 8th Gen Core™ Processors Mini-ITX with DDR4 SO-DIMM up to 64G, VGA ,Dual DP ports ,Two GbE LAN ports, Five COM Ports
- Intel ® 8 th /9 th Gen Core™ Processors support
- Supports two SO-DIMMs suppor t DDR4 Non-ECC SDRAM up to 64GB
- Supports dual Ethernet, five COM Ports, eight USB Ports, four SATA III Ports and Audio
- Supports one PCIe x16(Gen3), one M.2 Key E 2230 with PCIe x1, CNVI and USB2.0 for Wireless, one M.2 Key M 2242/2260/2280 with PCIe x4 and SATA3 for SSD and one mini-PCIe slot
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | Mini-ITX |
|---|---|
| CPU | Intel ® Core™ i3/i5/i7/ Pentium ® Celeron ® |
| Chipset | Intel ® Q370 |
| BIOS | AMI UEFI |
| Memory | 2x DDR4 SO-DIMM up to 64G |
| Expansion | 1x PCIe x16 Gen 31x M.2 Key E 2230 with PCIe x1, CNVI and USB2.0 for Wireless1x M.2 Key M 2242/2260/2280 with PCIe x4 and SATA3 for SSD1x mini-PCIe slot |
| Display | VGA/Dual DP/LVDS |
| Audio | Realtek ALC887 HDA codec |
| LAN | 2x GbE |
| Serial Port | 3x RS-2322x RS-232/422/485 |
| USB | 4x USB3.2 Gen14x USB2.0 |
| Storage Device | Supports4x SATA III ports Supports RAID 0, 1, 5, 10 |
| GPIO | 8 bit |
| Others | N/A |
| Dimension | 170 x 170mm |
- One WADE-8211-Q370 Main board
- One I/O shield
- One Installation CD
- One SATA cable
- One CPU coolor bracket
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3D63 | WADE-8211-Q370 | Mini-ITX ESB.Q370 w/o ECC LGA1151.w/DDR4SO-DIMM /VGA/Dual DP/Dual GbE/COM/Audio/USB | add to list – WADE-8211-Q370 |
