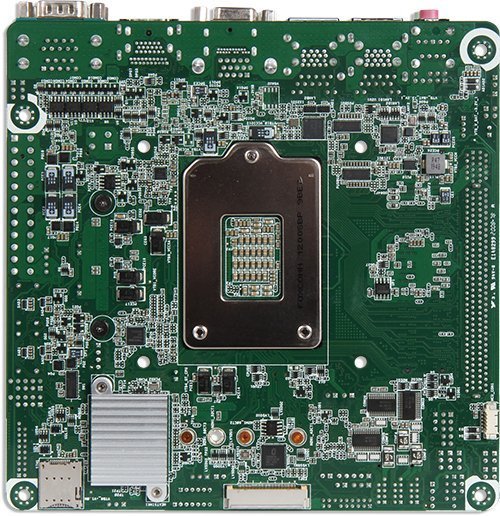

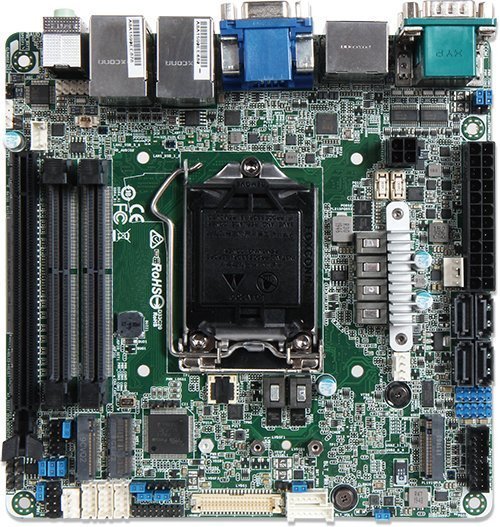

WADE-8212-Q470E
Leading Desktop Intel® 10th Gen Core™ Processors Mini-ITX with DDR4 SO-DIMM up to 64G, VGA , DP port, HDMI®, LVDS,Two GbE LAN ports, Five COM Ports
- Intel ® 10 th Gen Core™ Processors support
- Supports two SO-DIMMs support DDR4 Non-ECC SDRAM up to 64GB
- Supports dual Ethernet(one port support 1G/one port support 2.5G), five COM Ports, ten USB Ports, four SATA III Ports and Audio
- Support one PCIe x16(Gen3), one M.2 Key E 2230 with PCIe x1, CNVI and USB2.0 for Wireless, one M.2 Key M 2242/2260/2280 with PCIe x4 and SATA3 for SSD, one M.2 Key B 3042/3052 with USB 3.0 Signal and one SIM Card socket
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | Intel ® 10th Gen Core™ Processors CPU in LGA1200 package |
|---|---|
| Chipset | Intel ® Q470E |
| BIOS | AMI UEFI BIOS |
| Memory | Supports up to 64GB DDR4 2400/2666/2933MHz Non-ECC SDRAM on two SO-DIMM sockets |
| Storage Devices | Supports four SATA III ports1x M.2 Type M socket (2242/2260/2280) for SSD |
| Watchdog Timer | Programmable watchdog timer, time out period from 1 sec to 255 secs |
| Hardware Monitoring | System monitor (Voltage, Fan Speed, and Temperature) |
| Expansion Interface | 1x PCIe x161x M.2 Type E socket (2230) for Wireless1x M.2 Type B socket (3042) for 4G/5G |
| Super I/O | F81966D-1 |
| Audio | Realtek AL887 High Definition Audio integrated in Intel ® SoC Audio Jack on rear I/O with Line-out/Mic-in |
| Ethernet | Intel ® I219LM & I225LM Ethernet controller2x RJ45 connectors on rear I/O |
| Serial Port | 2x RS-232/422/485 ports on REAR I/O3x RS-232 ports on board pin header |
| USB | 4x USB 3.2 on rear I/O2x USB 3.2 on board pin header4x USB 2.0 on board pin header |
| GPIO | 8-bit configurable controlled by embedded controller |
| Graphic Controller | Intel ® UHD Graphics 630 supports DirectX 12, OpenGL 4.5 Video decode HW acceleration support for H.264, H.265, MPEG2, VC-1/WMV9, JPEG, VP8, and VP9 |
| Display Interface | LVDS: Dual channel 2-bit LVDS on board, resolution up to1920 x 1200 DP: DP port on rear I/O, resolution up to 4096×2160 HDMI ® : HDMI ® port on rear I/O, resolution up to 4096×2160 VGA: One VGA port on rear I/O, resolution up to 1920×1200 |
| Dimension | 170mm(L) x 170mm(W) x 1.6mm(H) |
| Power Supply | ATX power input |
| Environment | Operation Temperature: 0 °C to 60 °C Storage Temperature: -20 °C to 80 °C Relative Humidity: 5% to 95%, non-condensing |
| MTBF | Over 100,000 hours at 40 °C |
- One WADE-8212-Q470E Main board
- One I/O shield
- One Installation CD
- One SATA cable
- One CPU coolor bracket
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3K30 | WADE-8212-Q470E | Mini-ITX ESB.Q470E w/o ECC LGA1200.w/DDR4 SO-DIMM /VGA/DP/HDMI ® /Dual GbE/COM/Audio/USB | add to list – WADE-8212-Q470E |
