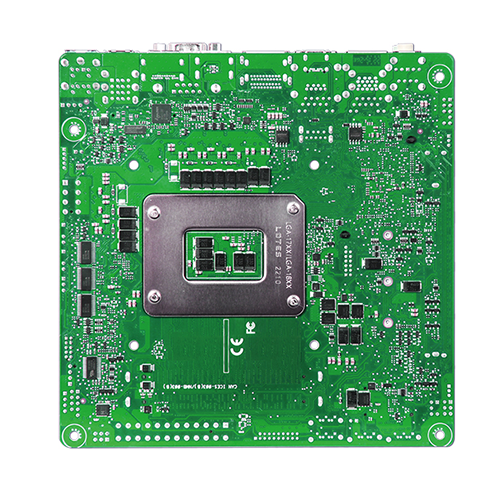

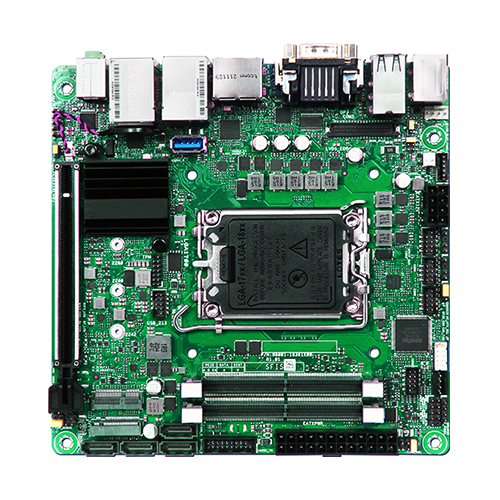

WADE-8213-Q670E
Intel® 12th/13th/14th Gen Core™ Processors based Mini-ITX Board with DDR5 SO-DIMM up to 96GB, eDP/LVDS, 3x DP Ports, HDMI®, Dual GbE LAN, 5x COM Ports
- Support Intel ® 12 th /13 th /14 th Gen Core™ Processors
- Two SO-DIMM support DDR5 DRAM up to 96GB
- Support dual Ethernet, 5x COM ports, 3x USB 3.2 Gen2 ports, 4x SATA III ports and Audio
- Support one PCIe x16(Gen5), one M.2 Key E 2230 with PCIe x1 and CNVI for Wireless and one M.2 Key M 2242/2260/2280 with PCIe x4 and SATA3 for SSD
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | Intel ® 12 th /13 th /14 th Gen Core™ Processors CPU in LGA1700 package |
|---|---|
| Chipset | Intel ® Q670E |
| BIOS | AMI uEFI BIOS |
| Memory | Supports two DDR5 dual channel up to 96GB SO-DIMM sockets Supports DDR5-5600 MT/s 1DPC 1R and DDR5-5200 MT/s 1DPC 2R SO-DIMM memory on all i9,i7 and select i5 SKUs |
| Storage Devices | Supports4x SATA III ports Supports RAID 0, 1, 5, 10 |
| Watchdog Timer | Programmable watchdog timer |
| Hardware Monitoring | System monitor(Voltage, Fan Speed and Temperature) |
| Expansion Interface | 1x PCIe x16 Gen 51x M.2 Key E 2230 with PCIe x1 and CNVI for Wireless1x M.2 Key M 2242/2260/2280 with PCIe x4 and SATA3 for SSD I/O Interface |
| Audio | Audio Jack on rear I/O with Line-out / Line-in with Realtek ALC897 audio controller |
| Ethernet | Intel ® I210AT (1GbE) and Intel ® I225LM (2.5GbE) Ethernet controller2x RJ45 connectors on rear I/O |
| Serial port | 2x RS232/422/485 ports (one port on rear I/O and one port on board header)3x RS232 port on pin header |

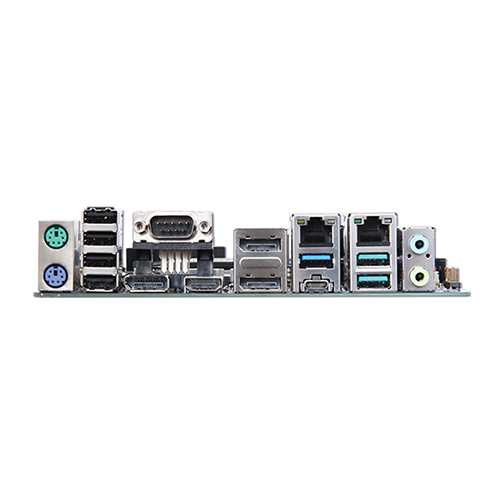

| USB | 3x USB3.2 (Gen2) on rear I/O(2x Type A +1x Type C)1x USB3.2 (Gen1) on rear I/O1x USB3.2 (Gen1) on board(Vertical Type-A)2x USB3.2 (Gen1) on pin header4x USB2.0 on rear I/O2x USB2.0 on pin header |
| GPIO | 8-bit configurable controlled by embedded controller Display |
| Graphic Controller | Intel ® UHD Graphics 770 supports DirectX 12, OpenGL 4.6 |
| Display Interface | DP: Three DP ports on rear I/O, resolution up to 8K eDP/LVDS: One eDP/LVDS port on board header, switch by BIOS HDMI ® : One HDMI ® connector on rear I/O Mechanical & Environment |
| Environment | Operation Temperature: 0 °C to 60 °C Storage Temperature: -20 °C to 80 °C Relative Humidity: 5% to 95%, non-condensing |
| MTBF | Over 100,000 hours at 40 °C |
| Dimension | 170mm(L) x 170mm(W) |
| Power Supply | ATX power input |
- One WADE-8213-Q670E Main board
- One I/O shield
- One SATA cable
- One CPU cooler backplate
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3P58 | WADE-8213-Q670E | Mini-ITX ESB. Q670E. w/o ECC LGA1700.w/DDR5 SO-DIMM /DP/HDMI ® /Dual GbE/COM/Audio/USB | add to list – WADE-8213-Q670E |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Remote Portwell Engineering Toolkits [RPET] | Software | 21.68 MB | download – Remote Portwell Engineering Toolkits [RPET] | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 864.26 KB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 11.97 MB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| WADE-8213-Q670E | BIOS 2.52.00 | 11.50 MB | download – WADE-8213-Q670E | BIOS 2.52.00 |
| WADE-8213-Q670E | User Manual | 3.10 MB | download – WADE-8213-Q670E | User Manual |
| WADE-8213-Q670E Series | BIOS 4.01.00 | 12.28 MB | download – WADE-8213-Q670E Series | BIOS 4.01.00 |
| WADE-8213-Q670E | BIOS 3.00.00 | 12.05 MB | download – WADE-8213-Q670E | BIOS 3.00.00 |
| WADE-8213-Q670E | Datasheet | 2.05 MB | download – WADE-8213-Q670E | Datasheet |
| WADE-8213-Q670E | BIOS 25600 | 11.50 MB | download – WADE-8213-Q670E | BIOS 25600 |
