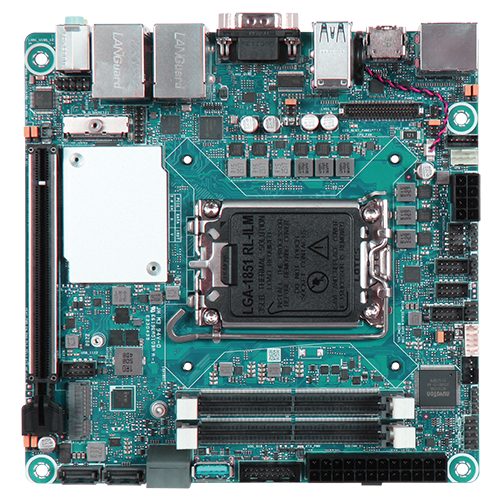

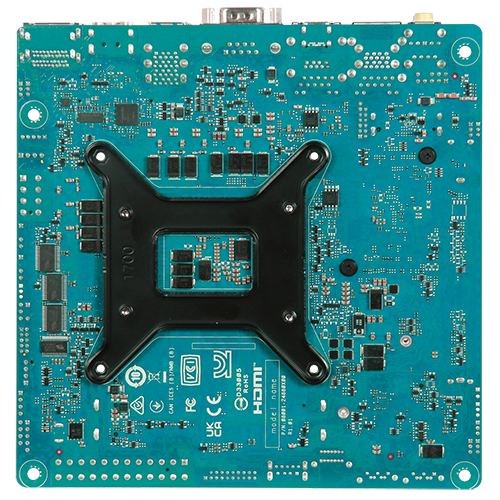

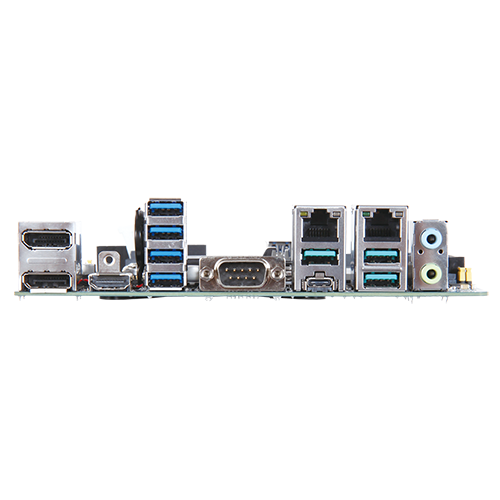

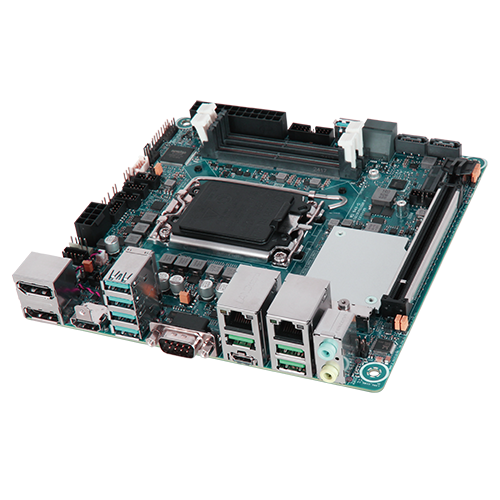

WADE-8214-Q870
Intel® Core Ultra 9/7/5, 65W; Dual SO-DIMM DDR5 up to 96GB; PCIe Gen5x16, M.2 Key E/CNVI, M.2 Key M NVMe; Dual Ethernet, 5x COM, 11x USB 3.2, 4x SATA III
- Support up to 65W Intel ® Core Ultra 9/7/5 processors (Series2)
- Supports Intel ® 800 Series Chipset
- Dual SO-DIMM support DDR5 DRAM up to 96GB
- Supports Dual Ethernet, 5x COM ports, 11x USB 3.2 ports, 4x SATA III ports and Audio
- Supports one PCIe x16(Gen5), one M.2 Key E 2230 with PCIe and CNVI for Wireless and one M.2 Key M 2280 with PCIe5.0 for NVMe
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | Mini-ITX |
|---|---|
| Processor | Intel ® Core™ Ultra Processors (Series 2), LGA 1851 socket, 65W TDP |
| Chipset | Intel ® Q870 |
| BIOS | AMI uEFI BIOS |
| Memory | Support up to 96GB DDR5 6400 MT/s on 2 non-ECC SODIMM |
| Storage | 4 x SATA Ports RAID 0, 1, 5, 10 |
| Watchdog Timer | Programmable, time out period from 1 s to 255 s |
| Graphic Controller | Intel ® Graphics OpenGL 4.5 |
| Audio | 1 x Audio Jack Line-in w/ Realtek ALC8971 x Audio Jack Line-out w/ Realtek ALC897 |
| Ethernet | 1 x Intel ® I210AT with GbE LAN 10/100/1000 Mbps1 x Intel ® I226LM with 2.5 GbE LAN 10/100/1000/2500 Mbps |
| Serial Port | 1 x COM Ports Support RS-232/422/485 |
| USB | 3 x USB 3.2 Gen2 Type A on Bracket4 x USB 3.2 Gen1 Type A on Bracket1 x USB 3.2 Gen2 x2 Type C on Bracket (Support DP 1.4a display output) |
| Display | 2 x DP 1.44096 x 2160@60Hz1 x HDMI ® 2.14096 x 2160@60Hz |
| PCIe | 1 x PCIe Gen5 x16 ( 1 x16 mode, 2 x8, 1×8; 2×4 mode ) |
| Serial Port | 1 x Pin Header support RS-232/422/4853 x Pin Header support RS-232 |
| USB | 1 x USB 3.2 Gen1 Vertical Type A2 x USB 3.2 Gen1 Pin Header |
| M.2 | 1 x M.2 E Key 2230 support CNVi, PCIe x11 x M.2 M Key 2280 support PCIe x4 |
| Security | TPM SPI header |
| Display | 1 x eDP / LVDS (On Board Header) |
| GPIO | 1 x 8-bit Digital I/Os |
| Dimension | 170 x 170 mm (6.69" x 6.69") |
| Power Supply | AT mode/ ATX mode |
| Operating Temperature | 0 ~ 60 °C (32.0 ~ 140.0 °F) |
| Storage Temperature | -40 ~ 85 °C (-40.0 ~ 185.0 °F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Certification | CE/FCC UKCA |
| OS | Windows 11 IoT Enterprise 2024 LTSC, Windows 10 IoT Enterprise 2022 LTSC |
| Portwell Special Feature | PET, RPET |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3U52 | WADE-8214-Q870 | Mini-ITX.ESB.Q870E. w/o ECC LGA1851.w/DDR5 SO-DIMM/DP/HDMI ® /Dual GbE/COM/Audio/USB | add to list – WADE-8214-Q870 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| WADE-8214-Q870 | Datasheet | 651.79 KB | download – WADE-8214-Q870 | Datasheet |
| WADE-8214-Q870 | User Manual | 4.00 MB | download – WADE-8214-Q870 | User Manual |
| WADE-8214-Q870 | BIOS PORTWELL_10200 | 11.76 MB | download – WADE-8214-Q870 | BIOS PORTWELL_10200 |
