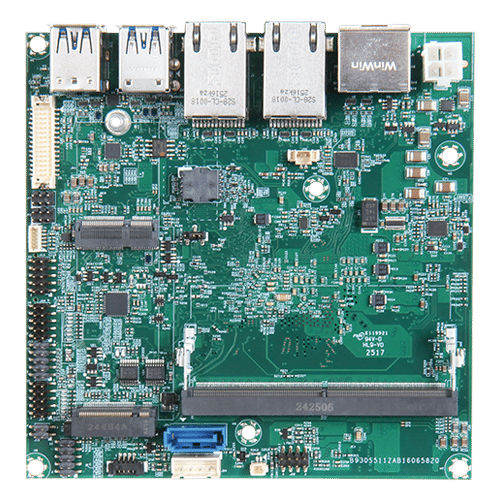

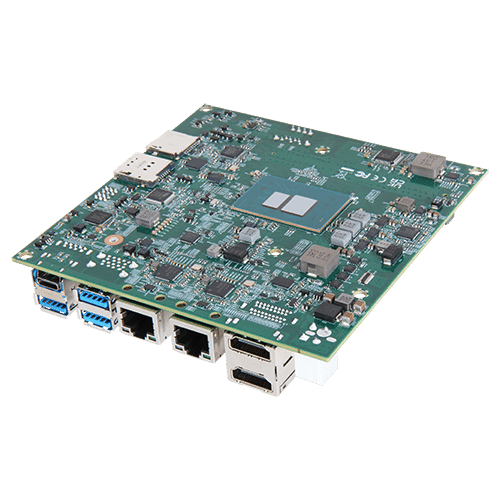

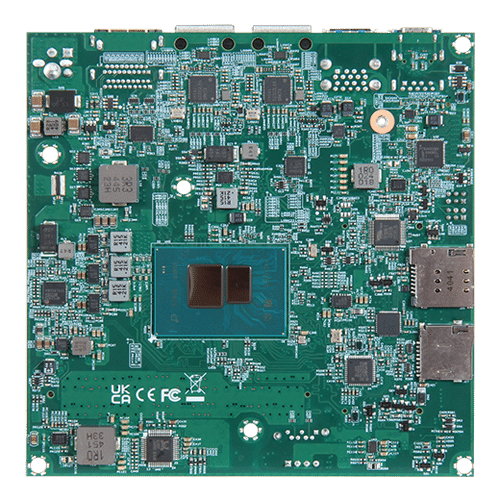

NANO-6065
Supports Twin/Amston Lake platform, up to 16GB DDR5, triple display via HDMI®/DP/LVDS, dual 2.5GbE, 4x USB 3.2 Gen2, M.2 E/B Key expansion, and onboard TPM 2.0 for enhanced security.
- Support Twin Lake / Amston Lake platform
- Up to 16GB DDR5 4800MT/s SO-DIMM
- Support multiple display via HDMI ® , DP from Type-C, *LVDS
- High speed I/O with dual 2.5GbE and four USB 3.2 Gen 2
- Multiple expansions with M.2 E Key and B Key
- Support on board TPM 2.0
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Processor | Intel ® Core i3 processor N355 Intel ® processor N150 Intel Atom ® x7835RE |
|---|---|
| BIOS | AMI UEFI BIOS |
| Memory | 1x DDR5 4800MT/s SO-DIMM up to 16GB Support In-Band ECC |
| Storage Devices | 1x SATA III1x Micro SD socket |
| Watchdog Timer | Programmable Watchdog Timer, time out period from 0.5 sec to 254.5 sec |
| Hardware Monitoring | System Monitor (Voltage, Fan speed, Temperature) |
| Expansion Interface | 1x M.2 E Key 2230 (USB/PCIe)1x M.2 B Key 3052/2280 (USB/PCIe/SATA) |
| Audio | HDA controller integrated in Intel ® SoC Realtek ALC897 HDA codec On board pin header (line-in, line-out, mic-in) |
| Ethernet | 1x Intel ® 2.5GbE Controller2x RJ45 connectors on rear I/O |
| Serial Port | 2x RS-232/422/485 on board pin header (selectable via BIOS) |

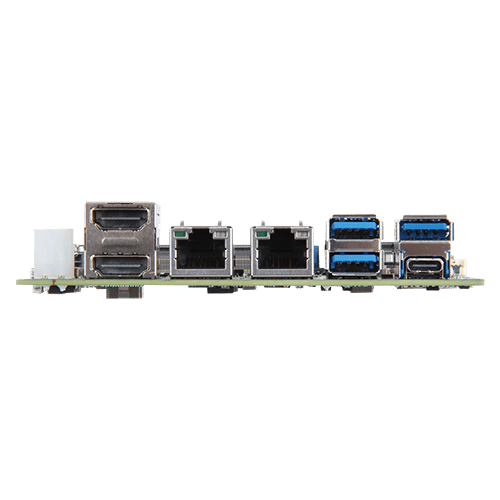

| USB | 3x USB 3.2 Gen2 Type A on rear I/O1x USB 3.2 Gen2 Type C on rear I/O (Supports DP 1.4a output / USB device mode) |
| Other | TPM 2.0 on board8x GPIO |
| Graphic Controller | Intel ® Graphics with up to 32 EUs |
| Display Interface | HDMI ® :2x HDMI ® port on rear I/O (HDMI ® 2.0b, 4096×2160 @ 60Hz) DP: Type C port on rear I/O (DP 1.4, 4096×2304 @ 60Hz) LVDS:1x LVDS on board connector (*Optional, available upon request with MOQ requirement) |
| Dimension | 120mm(L) x 120mm(W), 4.72"(L) x 4.72"(W) |
| Power Supply | DC 12 ~ 24V input |
| Environment | Operating temperature: 0 °C ~ 60 °C (SKU:N355 & N150) Operating temperature: -40 °C ~ 85 °C (SKU:X7835RE) Storage Temperature: -40 °C ~ 85 °C Operating Humidity: 5 ~ 95%, non-condensing |
| MTBF | TBD |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3T71 | NANO-6065-N355 | Nano-ITX ESB. Intel ® Twin Lake SoC. w/ DDR5 SO-DIMM/ dual HDMI ® / dual 2.5 GbE LAN/ micro SD/ SIM card/ 12-24V/ TYPE C | add to list – NANO-6065-N355 |
| AB1-3T83 | NANO-6065-N150 | Nano-ITX ESB. Intel ® Twin Lake SoC. w/ DDR5 SO-DIMM/ dual HDMI ® / dual 2.5 GbE LAN/ micro SD/ SIM card/ 12-24V/ TYPE C | add to list – NANO-6065-N150 |
| AB1-3T84 | NANO-6065-X7835RE | Nano-ITX ESB. Intel ® Amston Lake SoC. w/ DDR5 SO-DIMM/ dual HDMI ® / dual 2.5 GbE LAN/ micro SD/ SIM card/ 12-24V/ TYPE C | add to list – NANO-6065-X7835RE |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| NANO-6065 | BIOS 0.0.8 | 13.14 MB | download – NANO-6065 | BIOS 0.0.8 |
| NANO-6065 | Datasheet | 659.60 KB | download – NANO-6065 | Datasheet |
| NANO-6065 | User Manual | 3.48 MB | download – NANO-6065 | User Manual |
| NANO-6065 | BIOS 0.0.7 | 13.14 MB | download – NANO-6065 | BIOS 0.0.7 |
