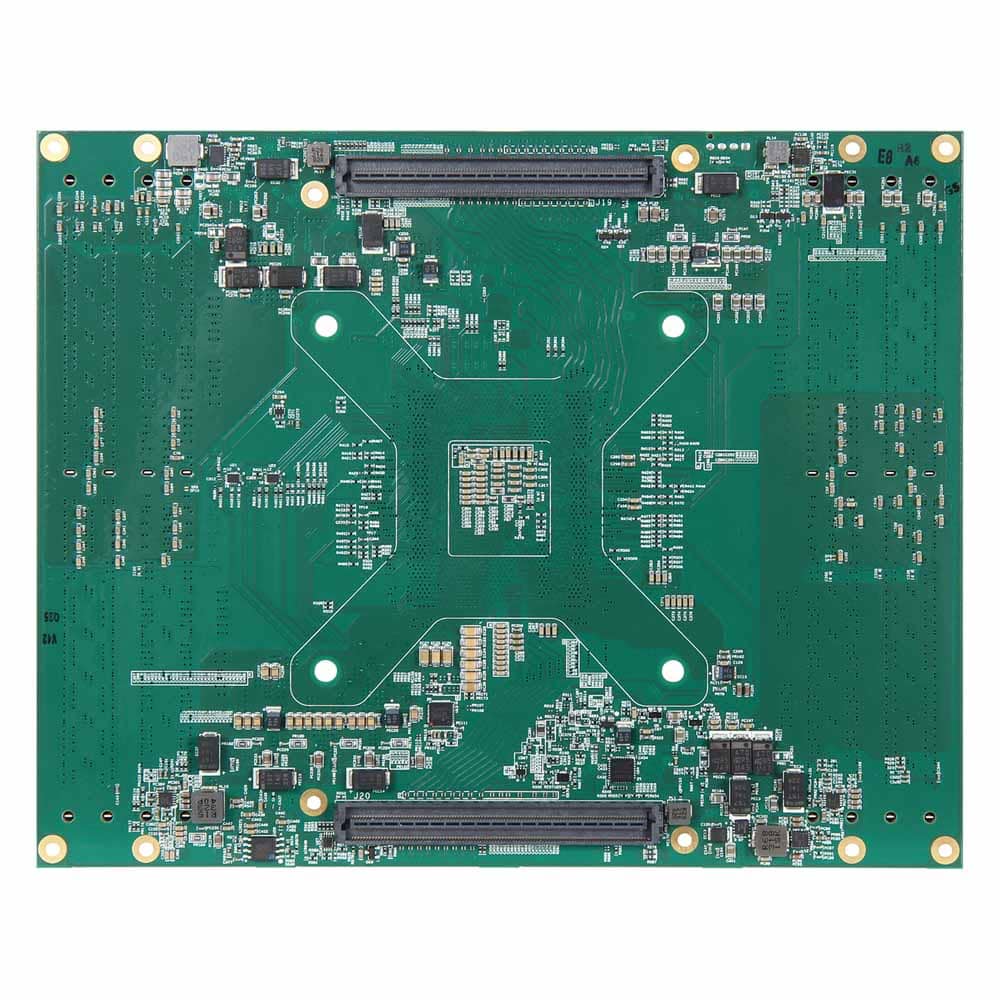

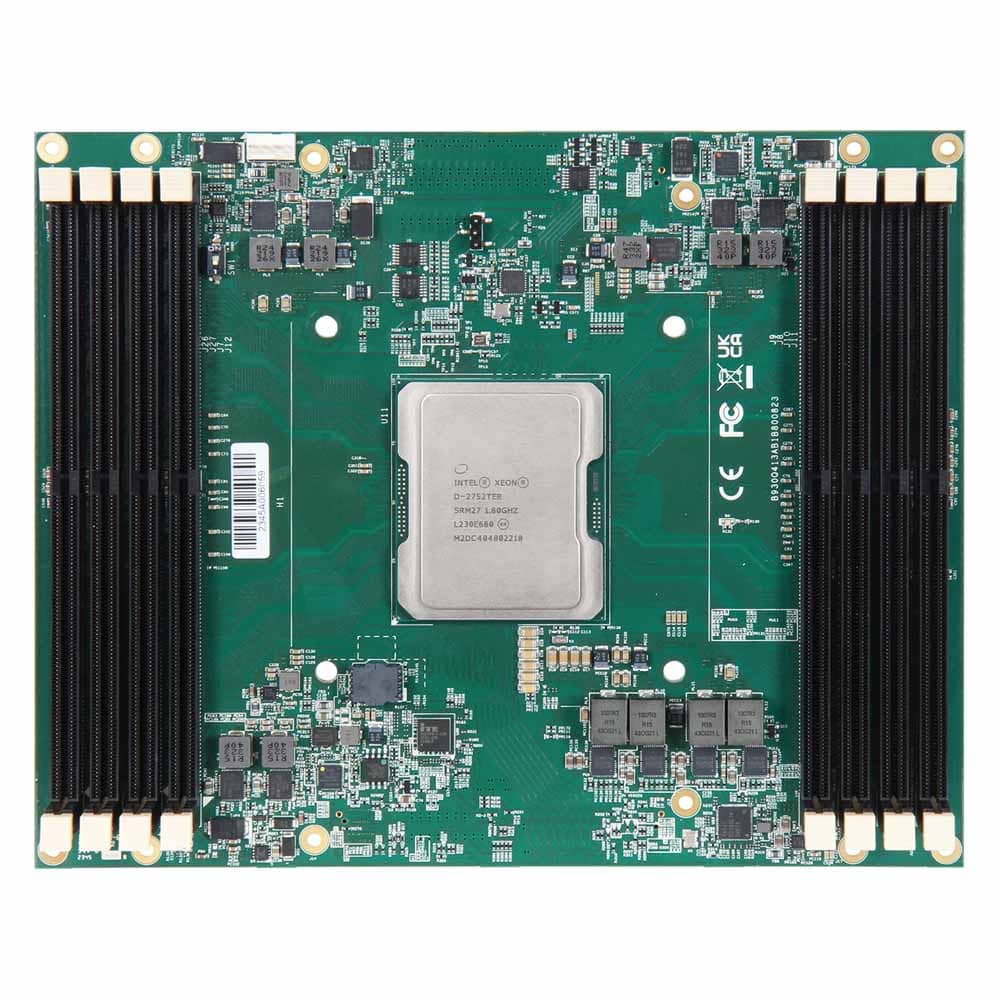

PCOM-B800GT
COM-HPC Server, Size E Module with Intel® Xeon® D-2700 and D-2800 Server-Class processors support 8 DIMM slots and 2.5GbE Base-T
- Intel ® Xeon ® D-2700 and D-2800 Processors for Edge IoT Computing and Networking Communication
- AI/Deep Learning Accelerate Data Analytics with Intel ® AVX-512 and VNNI
- 8x 10G KR, 4x USB2.0/3.2 Gen 2×1, 2x SATAIII, 2x UART
- Eight DIMM Slots Design and Maximum 1024GB Memory Support
- Selected SKUs Supported -40 ~ 85 °C for Extended Temperature Application
- New Gen of Intel ® QAT up to 100G (D-2800series)
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Product | PCOM-B800-GT |
|---|---|
| Form Factor | COM-HPC Server Type E (200mm x 160mm) |
| Processor | Intel ® Xeon ® D-2700 series |
| D-2712T | D-2733NT D-2752TER D-2775TE D-2796TE |
| Core / Thread Count | 4 8 12 16 20 |
| Base Frequency | 1.9 GHz 2.1 GHz 1.8 GHz 2.0 GHz 2.0 GHz |
| Boost Frequency | 2.4 GHz 2.6 GHz 2.1 GHz 2.4 GHz 2.4 GHz |
| Cache | 15MB 15MB 20MB 25MB 30MB |
| Integrated Ethernet / QAT | 50G/NA 50G/50G 50G/NA 100G/NA 100G/NA |
| NBASE-T | Intel ® I226LM Intel ® I226IT |
| Processor TDP | 65W 80W 77W 100W 118W |
| BIOS | AMI BIOS |
| ECC Memory Supported | Yes |
| Memory | 8x DDR4 Long-DIMM up to 1024GB 2933MT/s |
| Temperature Range | 0 ~ 60 °C 0 ~ 60 °C -40 ~ 85 °C -40 ~ 85 °C -40 ~ 85 °C |
| SATA | 2 x SATA III |
| USB | 4 x USB 3.2 Gen1/USB 2.0 |
| Ethernet | 4x 25/10G KR /8x 10G KR (Depend on SKU) 2.5GbE LAN |
| Serial I/O | GPIO 12 bit GPIO |
| I²C | Frequency: 100kHz - 1MHz |
| SMBus | Frequency: 100kHz - 1MHz |
| UART | 2 Serial Port (TX/RX/CTS/RTS) |
| PCI Express | 32x PCIe 4.0 from IIO (#16 ~ #31, #32 ~ #47)16x PCIe 3.0 from HSIO (#0 ~ #7, #8 ~ #15) |
| Display | N/A |
| Security | TPM 2.0, Intel ® AES |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Details |
|---|---|---|
| AB1-3L51 | PCOM-B800GT-D2796TE | add to list – PCOM-B800GT-D2796TE |
| AB1-3P11 | PCOM-B800GT-D2775TE | add to list – PCOM-B800GT-D2775TE |
| AB1-3P12 | PCOM-B800GT-D2752TER | add to list – PCOM-B800GT-D2752TER |
| AB1-3P13 | PCOM-B800GT-D2733NT | add to list – PCOM-B800GT-D2733NT |
| AB1-3P14 | PCOM-B800GT-D2712T | add to list – PCOM-B800GT-D2712T |
| AB1-3S58 | PCOM-B800GT-D2832NT | add to list – PCOM-B800GT-D2832NT |
| AB1-3S60 | PCOM-B800GT-D2843NT | add to list – PCOM-B800GT-D2843NT |
| AB1-3S59 | PCOM-B800GT-D2876NT | add to list – PCOM-B800GT-D2876NT |
| AB1-3S61 | PCOM-B800GT-D2896NT | add to list – PCOM-B800GT-D2896NT |
| AB1-3S57 | PCOM-B800GT-D2896TER | add to list – PCOM-B800GT-D2896TER |
| AB1-3S56 | PCOM-B800GT-D2899NT | add to list – PCOM-B800GT-D2899NT |
| B9972140 | Cooler for 2U | add to list – Cooler for 2U |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| PCOM-B800GT | User’s Manual R0.3 | 2.59 MB | download – PCOM-B800GT | User’s Manual R0.3 |
| PCOM-B800GT | Datasheet | 711.34 KB | download – PCOM-B800GT | Datasheet |
