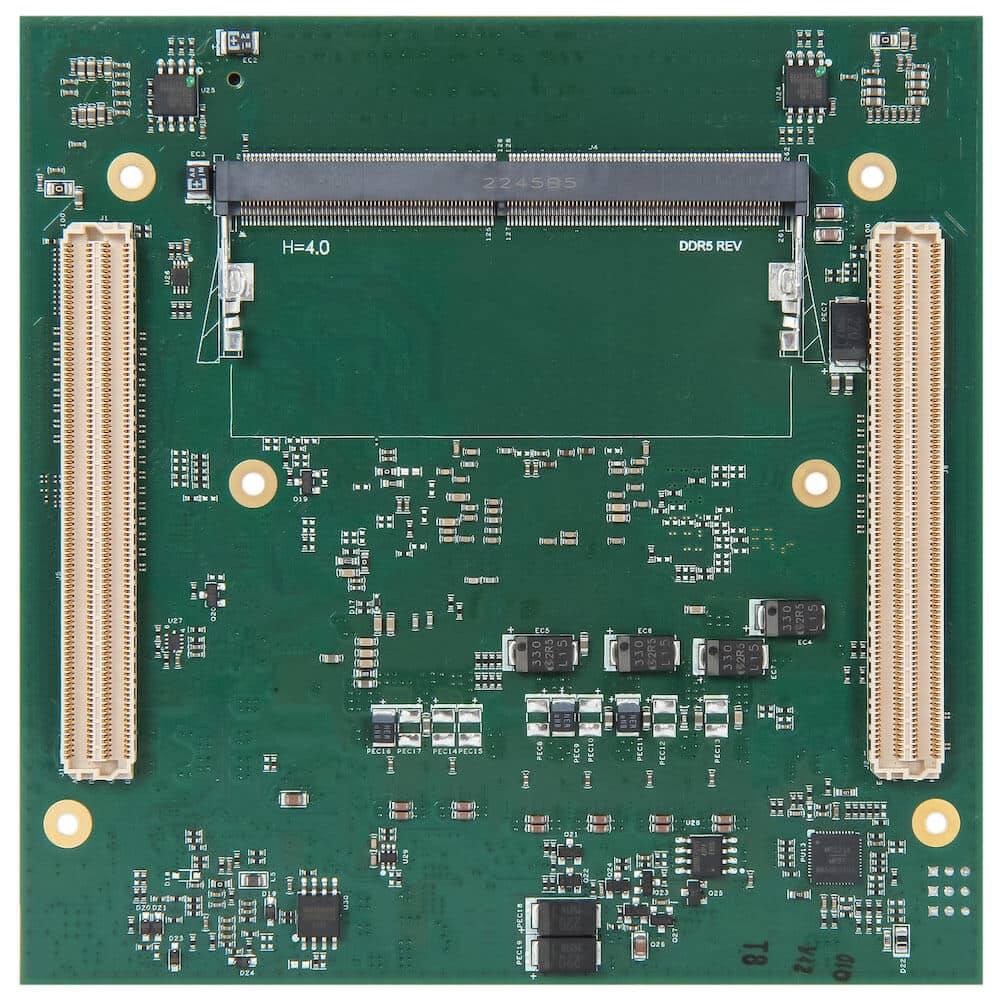

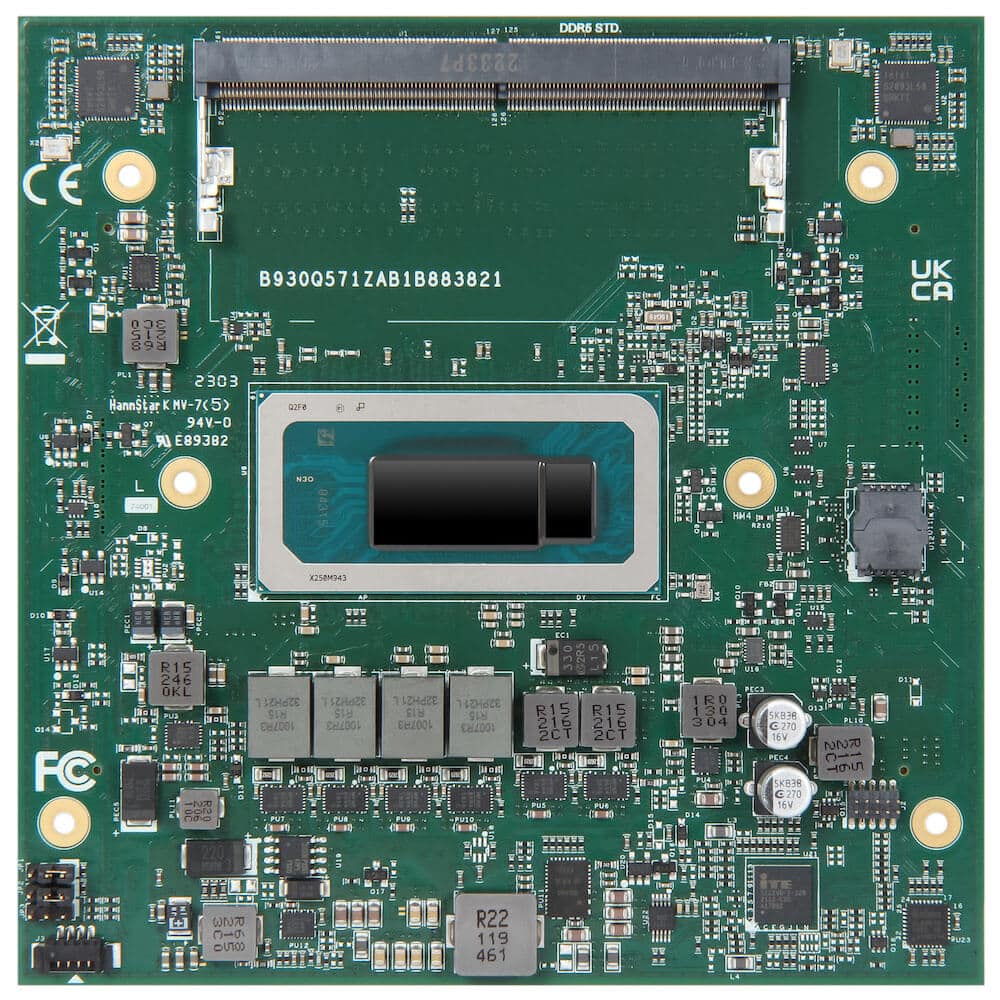

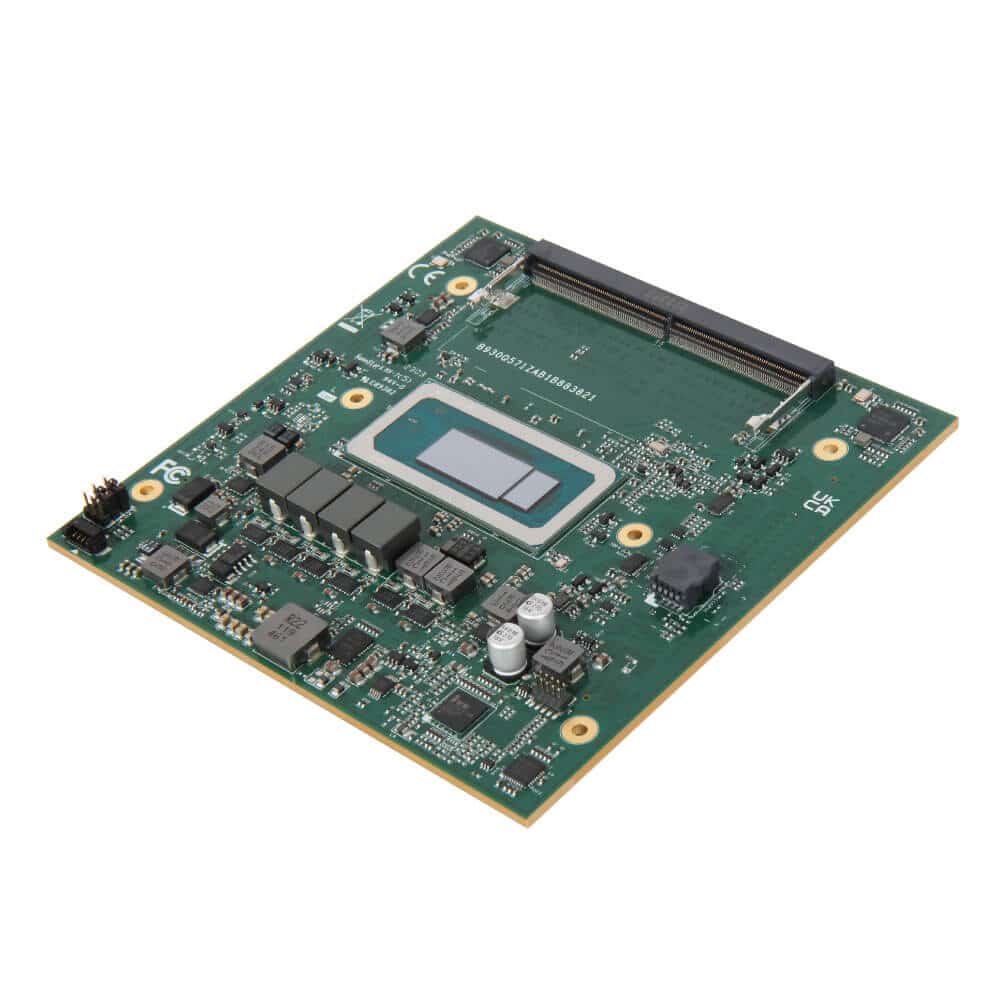

PCOM-B883VG2
COM-HPC® Client module Size B module with Intel® 12th / 13th Gen H/P/U Series Processor DDR5 SO-DIMM, DDI, PCIe Gen 5, USB4, USB 3.2 Gen2, 2.5 Gigabit TSN Ethernet, discrete TPM 2.0, eDP, SATA III
- 12 th / 13 th Gen Intel ® Core™, Series processors in Intel ® 7 lithography
- Up to 6x performance core + 8x efficient core, and up to 96x graphic execution units
- 2x DDR5-4800 non-ECC SO-DIMMs up to 2x 32GB, 1x PCIe Gen5 x8(H series), 2x Gen4 x4, and 8x PCIe Gen3 x1
- 2x USB4, 2x USB3.2 Gen2, 8x USB2.0, 2x SATAIII, 3x DDI, eDP
- I226 Series ethernet
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Chipset | SoC |
|---|---|
| Memory | 2x DDR5 SO-DIMM up to 64GB 4800MT/s Non-ECC Dual Channel |
| Graphics | Intel ® Gfx up to 96 EU |
| Display | 3x DDI, eDP |
| Sound | Intel ® High Definition Audio |
| Carrier Board | PCOM-C880 (COM-HPC Client Carrier) I/O Interface |
| SATA | 2x SATA (share with PCIe) |
| USB | 2x USB44x USB 3.2 Gen28x USB 2.0 |
| Ethernet | Intel ® I226 series |
| Serial I/O | GPIO 12 bit GPIO (default 6 input/6 output) |
| I²C | Baud Rate : 400KHz |
| SMBus | Baud Rate : 100KHz |
| UART | TX/RX signal only |
| PCI Express Gen4 | 1x Gen5 x8 (selected SKU),2x Gen4 x4 |
| PCI Express Gen3 | 8x Gen3 x1 (2 lanes share with SATA) |
| Display #2 | Default Options Resolution |
| eDP 1.4 | eDP up to HBR37680 x 4320@60Hz |
| DDI | DP up to HBR37680 x 4320@60Hz |
| DP up to HBR3 | 7680 x 4320@60Hz |
| DP up to HBR3 #2 | 7680 x 4320@60Hz |
| Security | TPM 2.0 MECHANICAL & ENVIRONMENT |
| Power DC IN | Normal: +12V DC AT/ATX mode |
| MTBF | TBD |
| Vibration | TBD |
| Dimension | 120mm x 120mm |
| Storage Temperature | -40 °C to 85 °C |
| Operating Temperature | 0 °C to 60 °C -40 °C to 85 °C (industrial SKU) |
| Certification | Contact us |
| OS | Windows 10/11 Ubuntu |
- Form Factor
- Core i7-13800HE, 6P + 8E/20T, 24 MB (45w)
- Core i5-13600HE, 4P + 8E/16T, 18 MB (45w)
- Core i3-13300HE, 4P + 4E/12T, 12 MB (45w)
- Core i7-1370PE, 6P + 8E/20T, 18 MB (28w)
- Core i5-1350PE, 4P + 8E/16T, 12 MB (28w)
- Core i3-1320PE, 4P + 4E/12T, 12 MB (28w)
- Core i7-1365UE, 2P + 8E/12T, 12 MB (15w)
- Core i5-1345UE, 2P + 8E/12T, 12 MB (15w)
- Core i3-1315UE, 2P + 4E/8T, 10 MB (15w)
- Processor U300E, 1P + 4E/5T, 8 MB (15w)
- Core i7-12800HE, 6P + 8E/20T, 24 MB (45w)
- Core i5-12600HE, 4P + 8E/16T, 18 MB (45w)
- Core i3-12300HE, 4P + 4E/12T, 12 MB (45w)
- Core i7-1270PE, 4P + 8E/16T, 18 MB (28w)
- Core i5-1250PE, 4P + 8E/16T, 12 MB (28w)
- Core i3-1220PE, 4P + 4E/12T, 12 MB (28w)
- Core i7-1265UE, 2P + 8E/12T, 12 MB (15w)
- Core i5-1245UE, 2P + 8E/12T, 12 MB (15w)
- Core i3-1215UE, 2P + 4E/8T, 10 MB (15w)
- Celeron 7305E, 1P + 4E/5T, 8 MB (15w)
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Details |
|---|---|---|
| TBD | PCOM-B883VG2-12800HE | add to list – PCOM-B883VG2-12800HE |
| TBD | PCOM-B883VG2-12600HE | add to list – PCOM-B883VG2-12600HE |
| TBD | PCOM-B883VG2-12300HE | add to list – PCOM-B883VG2-12300HE |
| TBD | PCOM-B883VG2-1270PE | add to list – PCOM-B883VG2-1270PE |
| TBD | PCOM-B883VG2-1250PE | add to list – PCOM-B883VG2-1250PE |
| TBD | PCOM-B883VG2-1220PE | add to list – PCOM-B883VG2-1220PE |
| TBD | PCOM-B883VG2-1265UE | add to list – PCOM-B883VG2-1265UE |
| TBD | PCOM-B883VG2-1245UE | add to list – PCOM-B883VG2-1245UE |
| TBD | PCOM-B883VG2-1215UE | add to list – PCOM-B883VG2-1215UE |
| TBD | PCOM-B883VG2-7305E | add to list – PCOM-B883VG2-7305E |
| TBD | Cooler | add to list – Cooler |
| TBD | Heatsink | add to list – Heatsink |
| TBD | Heatspreader | add to list – Heatspreader |
| AB1-3L34Z | PCOM-C880 (ATX carrier board) | add to list – PCOM-C880 (ATX carrier board) |
