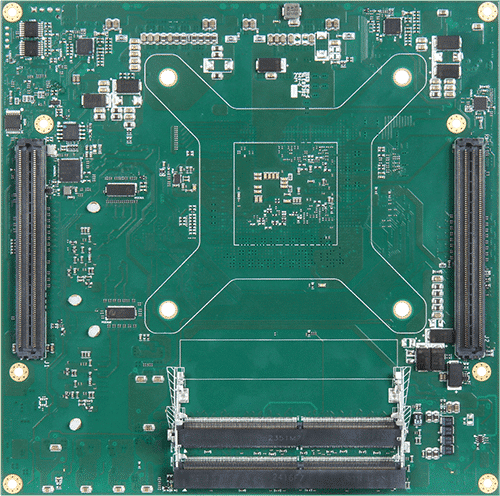

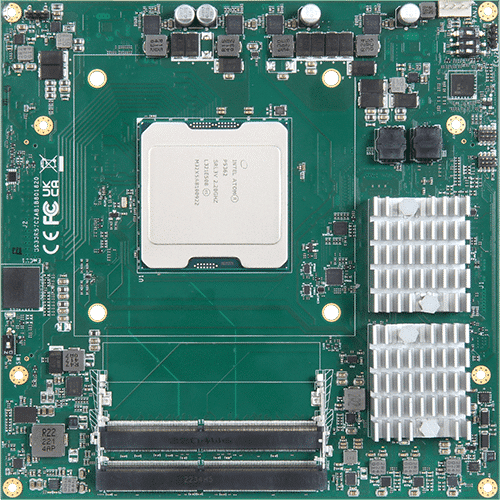

PCOM-B801GT
COM-HPC Server, Size D Module with Intel® Atom® P5300 series processors, up to 4 DDR4 SO-DIMM (select by SKU) and support 8 port 10Gbe KR/4 port 25Gbe KR
- Intel Atom ® P5300 series Processors up to 83W TDP
- COM-HPC Server, Size D
- Support up to 4 x DDR4 SO-DIMMs (select by SKU) and 2667MT/s
- All SKUs i.Temp and QAT support
- x16 PCIe Gen 3 Lanes, x8 10Gbe KR (Optional 4x 25Gbe KR)
- Optional Dual NVMe SSD Chip (one x4 or two x2) maximum size up to 1TB x2
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Product | PCOM-B801-GT |
|---|---|
| Form Factor | CCOM-HPC Server Size D (160mm x 160mm) |
| Processor | Intel Atom ® P5300 series |
| P5322 | P5332 P5342 P5352 P5362 |
| Core / Thread Count | 8C/8T 12C/12T 16C/16T 20C/20T 24C/24T |
| Base Frequency | 2.2 GHz 2.2 GHz 2.2 GHz 2.2 GHz 2.2 GHz |
| Boost Frequency | 2.2 GHz 2.2 GHz 2.2 GHz 2.2 GHz 2.2 GHz |
| Cache | 9MB 13.5MB 18MB 22.5MB 27MB |
| Integrated Ethernet / QAT | 100G / 50G 100G / 50G 100G / 100G 100G / 100G 100G / 100G |
| NBASE-T | Intel ® I226IT |
| Processor TDP | 55W 61W 71W 78W 83W |
| ECC Memory Supported | Yes |
| Memory | 3 x SO-DIMM3 x SO-DIMM3 x SO-DIMM4 x SO-DIMM (backside 8mm high)4 x SO-DIMM (backside 8mm high) |
| Temperature Range | -40 ~ 85 °C -40 ~ 85 °C -40 ~ 85 °C -40 ~ 85 °C -40 ~ 85 °C |
| SATA | 2 x SATA III |
| USB | 4 x USB 3.2 Gen1/USB 2.0 |
| Ethernet | 8 x 10Gbe KR (option4 x 25Gbe KR) 2.5GbE LA |
| Serial I/O | GPIO 12 bit GPIO |
| I 2 C | Baud Rate : 100KHz |
| SMBus | Baud Rate : 100KHz |
| UART | 2 Serial Port (TX/RX/CTS/RTS) |
| PCI Express | 16 Lanes PCIe Gen3 Support 1×16, 2×8, 4×4 bifurcation 4 Lanes PCIe Gen2 Support 1×4, 2×2 bifurcation 4 Lanes PCIe Gen2 Support 2×2 bifurcation (optional on board SSD : one x4 NVMe chip or two x2 NVMe chip) |
| Display | N/A |
| Security | TPM 2.0 |
| Dimension | 160mm x 160mm |
| Power DC IN | Normal: +12V DC AT/ATX mode |
| MTBF | Contact us |
| Vibration | Contact us |
| Storage Temperature | -40 °C to 85 °C |
| Operating Temperature | -40 °C to 85 °C |
| Certification | Contact us |
| OS | Linux |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Details |
|---|---|---|
| AB1-3S67Z | PCOM-B801GT-P5322 | add to list – PCOM-B801GT-P5322 |
| AB1-3S68Z | PCOM-B801GT-P5332 | add to list – PCOM-B801GT-P5332 |
| AB1-3S69Z | PCOM-B801GT-P5342 | add to list – PCOM-B801GT-P5342 |
| AB1-3S71Z | PCOM-B801GT-P5352 | add to list – PCOM-B801GT-P5352 |
| AB1-3S70Z | PCOM-B801GT-P5362 | add to list – PCOM-B801GT-P5362 |
| TBD | Heat spreader | add to list – Heat spreader |
| TBD | Heat sink | add to list – Heat sink |
| TBD | 2U cooler | add to list – 2U cooler |
