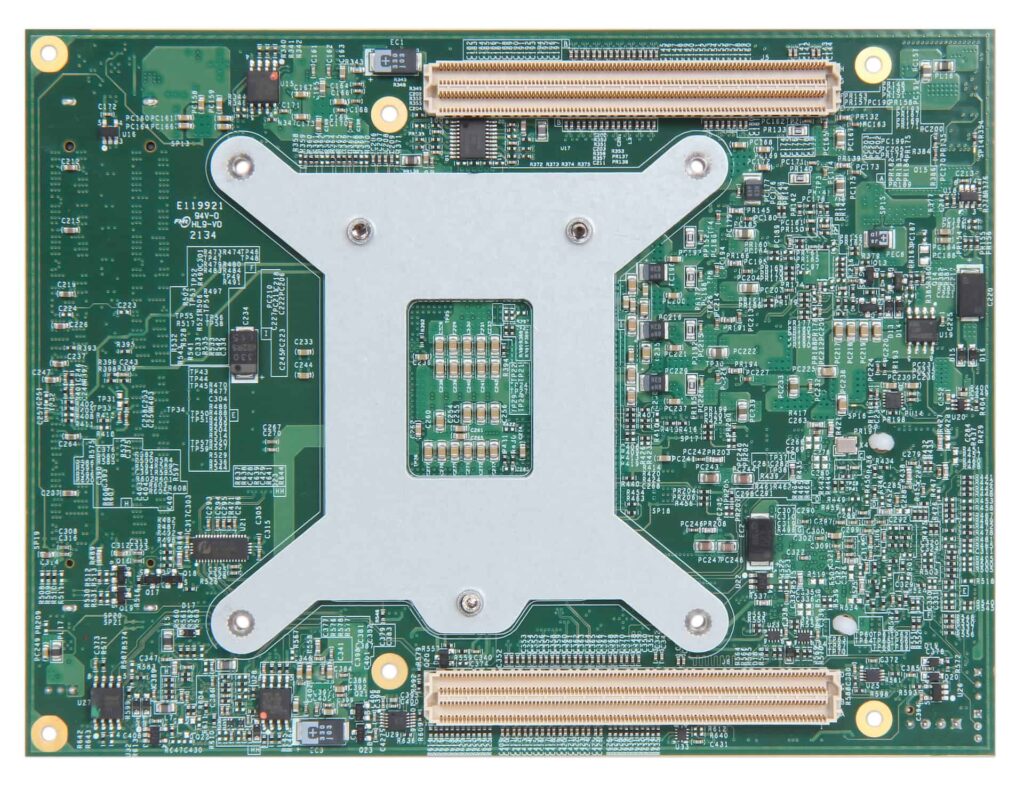

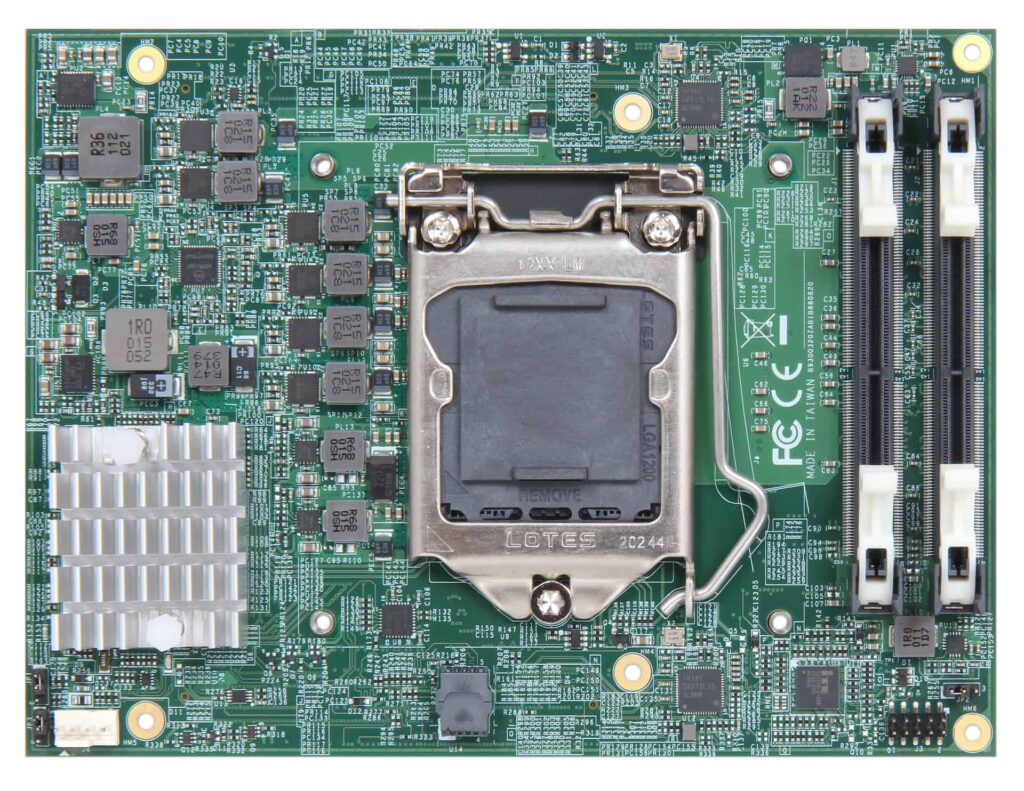

PCOM-B880VG2
Intel® Comet Lake-S Core™ Processor based on COM-HPC® Client module Size C with dual DDR4 SO-DIMM, DDI, eDP, Dual 2.5 Gigabit Ethernet, SATA III, and USB 3.2
- Intel ® Xeon, Core™i9/i7/i5/i3, Pentium and Celeron 14nm process(Comet Lake-S)
- Support 2x Non-ECC/ECC SO-DIMMs, up to 2933, and 2x 32GB
- Support Dual 2.5G Ethernet with TSN Capability
- Support USB2.0/3.2 Gen1, 2x SATA III 1x PCIe 3.0 x16, and 20x PCIe 3.0 x1
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | COM HPC Client, Size C |
|---|---|
| Xeon series | Xeon W-1250E, 6C/12T, 3.5 GHz, 12 MB, 80W Xeon W-1290TE, 10C/20T, 1.8 GHz, 20 MB, 35W Xeon W-1270TE, 8C/16T, 2.0 GHz, 16 MB, 35W Xeon W-1250TE, 6C/12T, 2.4 GHz, 12 MB, 35W |
| Core i series | i9-10900TE, 10C/20T, 1.8 GHz, 20 MB, 35W i7-10700TE, 8C/16T, 2.0 GHz, 16 MB, 35W i5-10500E, 6C/12T, 3.1 GHz, 12 MB, 65W i5-10500TE, 6C/12T, 2.3 GHz, 12 MB, 35W i3-10100E, 4C/8T, 3.2 GHz, 6 MB, 65W i3-10100TE, 4C/8T, 2.3 GHz, 6 MB, 35W |
| Pentium/Celeron series | Pentium G6400E, 2C/4T, 3.8 GHz, 4 MB, 65W Pentium G6400TE, 2C/4T, 3.2 GHz, 4 MB, 35W Celeron G5900E, 2C/2T, 3.2 GHz, 2 MB, 65W Celeron G5900TE, 2C/2T, 3.0 GHz, 2 MB, 35W I/O Interface |
| SATA | 2 x SATA III |
| NVME | 2x PCIe NVME Gen3 x4, with Intel ® RST |
| USB | 4x USB 3.2 Gen28x USB 2.0 |
| Ethernet | Intel ® I225LM |
| AUDIO | HDA |
| Serial I/O | GPIO 12 bit GPIO (default 6 input / 6 output) |
| I²C | Baud Rate : 400KHz |
| SMBus | Baud Rate : 100KHz eSPI |
| UART | TX/RX signal only |
| PEG | 1x Gen3 x16 (Group 1) (Bifucation Support: 2 x8, or 1×8 + 2×4) |
| PCI Express Gen3 | 8x Gen3 x1 (Group 0 Low)2x Gen3 x4 (Group 0 High)1x Gen3 x4 (Group 2, #32 ~ #35) |
| Display | Default Options Resolution |
| eDP 1.4 | 4096 x 2304@60Hz |
| DDI 1, 2, & 3 | DP 1.44096 x 2304@60Hz |
| HDMI ® 2.0a | 4096 x 2160@60Hz |
| HDMI ® 1.4 | 4096 x 2160@60Hz |
| Security | TPM 2.0 MECHANICAL & ENVIRONMENT |
| Power DC IN | Normal: +12V DC AT/ATX mode |
| MTBF | TBD |
| Vibration | TBD |
| Dimension | 160mm x 120mm |
| Storage Temperature | 0 °C to 60 °C |
| Operating Temperature | 0 °C to 60 °C |
| Certification | Contact us |
| OS | Windows 10 Ubuntu, CentOS |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Details |
|---|---|---|
| AB1-3L36 | PCOM-B880VG2-W480E | add to list – PCOM-B880VG2-W480E |
| AB1-3L35 | PCOM-B880VG2-Q470E | add to list – PCOM-B880VG2-Q470E |
| B9971030 | Cooler 125W | add to list – Cooler 125W |
| B9971060 | Cooler 80W | add to list – Cooler 80W |
| B8304610 | Cooler 35W | add to list – Cooler 35W |
| AB1-3L34Z | PCOM-C880 (ATX carrier board) | add to list – PCOM-C880 (ATX carrier board) |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| Remote Portwell Engineering Toolkits [RPET] | Software | 21.68 MB | download – Remote Portwell Engineering Toolkits [RPET] | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 864.26 KB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 11.97 MB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| PCOM-B880VG2 | Datasheet | 671.23 KB | download – PCOM-B880VG2 | Datasheet |
