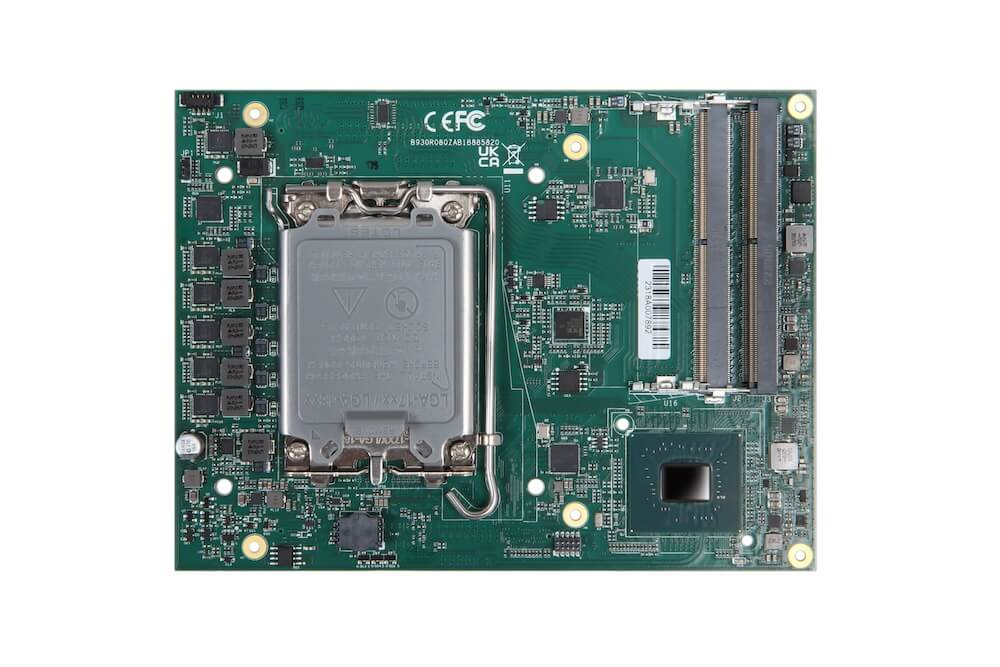

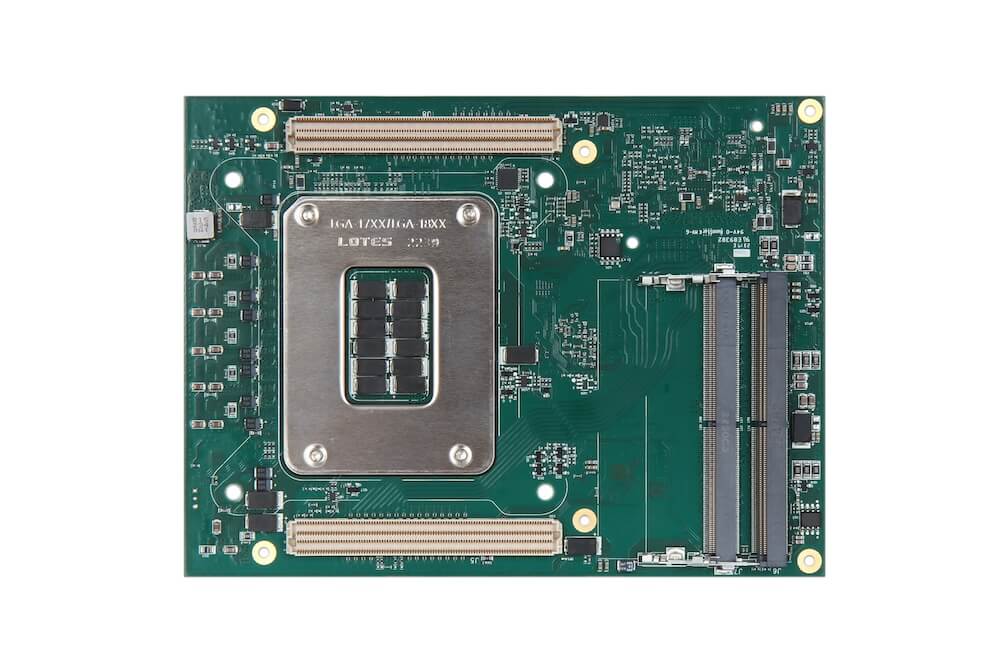

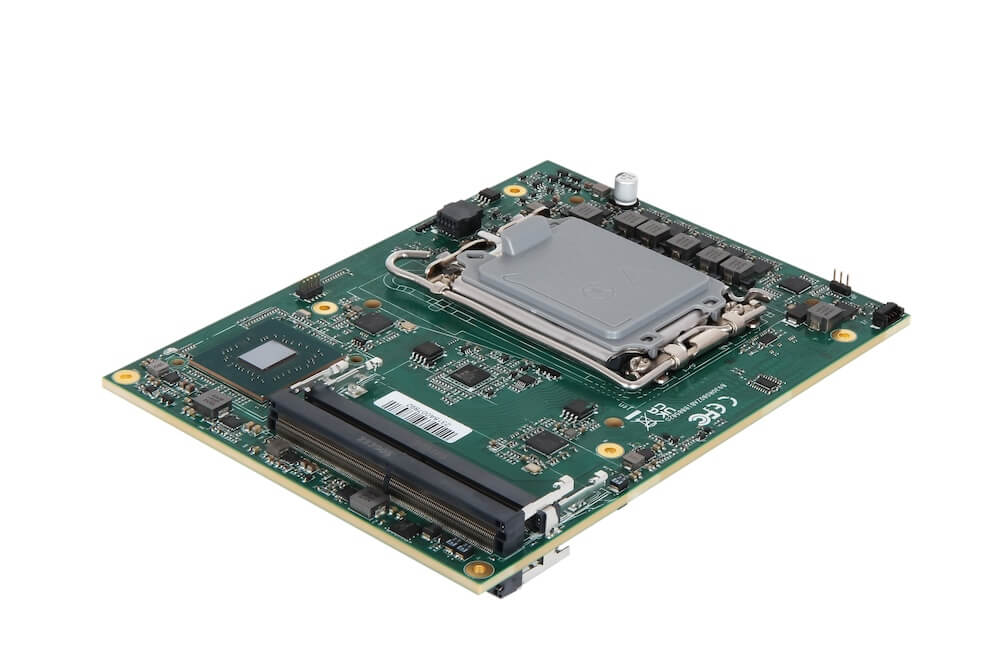

PCOM-B885
COM-HPC® Client module Size C module with Intel® 13th/14th Gen socket type processor (Code Name: Raptor Lake-S Refresh) DDR5 SO-DIMM, DDI, PCIe Gen 4, USB 3.2 Gen2, 2.5G Ethernet, discrete TPM 2.0, eDP, SATA
- 13th/14th Gen Intel ® Core™ Processors and Intel ® Processor 300 Series, featuring Intel ® 7 lithography
- Up to 8x performance core + 16x efficient core, and up to 32x graphic execution units
- 4x DDR5 ECC/non-ECC SO-DIMM up to 192GB capacities
- 1x PCIe Gen4 x16, 4x PCIe Gen4 x4, 2x PCIe Gen3 x4,1x PCIe Gen3 x2, 4x USB3.2 Gen2 x1, 2x SATA, 3x DDI, eDP
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Product | PCOM-B885 |
|---|---|
| Form Factor | COM HPC Client, Size C (160 x 120mm) |
| CPU SKU | TDP Core (P+E) Threads Cache Base Freq Max Turbo Freq Max Memory MT/s ECC vPro PEG Bifurcation |
| i9-14900 | 65 W 8 + 16 32 36 MB 2.0 Ghz 5.8 Ghz 4000 MT/s (2DPC) R680E Q670E R680E Q670E R680E |
| i9-14900T | 35 W 8 + 16 32 36 MB 1.1 Ghz 5.5 Ghz |
| i7-14700 | 65 W 8 + 12 28 33 MB 2.1 Ghz 5.4 Ghz |
| i7-14700T | 35 W 8 + 12 28 33 MB 1.3 Ghz 5.2 Ghz |
| i5-14500 | 65 W 6 + 8 20 24 MB 2.6 Ghz 5.0 Ghz |
| i5-14500T | 35 W 6 + 8 20 24 MB 1.7 Ghz 4.8 Ghz |
| i5-14400 | 65 W 6 + 4 16 20 MB 2.5 Ghz 4.7 Ghz N/A N/A |
| i5-14400T | 35 W 6 + 4 16 20 MB 1.5 Ghz 4.5 Ghz |
| i3-14100 | 60 W 4 + 0 8 12 MB 3.5 Ghz 4.7 Ghz |
| i3-14100T | 35 W 4 + 0 8 12 MB 2.7 Ghz 4.4 Ghz |
| Processor 300 | 46 W 2 + 0 4 6 MB 3.9 Ghz 3.9 Ghz R680E |
| Processor 300T | 35 W 2 + 0 4 6 MB 3.4 Ghz 3.4 Ghz |
| SATA | SATA III |
| USB | 4x USB 3.2 Gen2 x28x USB 2.0 |
| Ethernet | 2x Intel ® I226 series |
| Serial I/O | GPIO 12 bit GPIO (default 6 input/6 output) |
| I 2 C | Baud Rate : 400KHz |
| SMBus | Baud Rate : 100KHz |
| UART | TX/RX signal only |
| PCIe lane | 1x PCIe Gen4 x16 (bifurcation 2 x8)4x PCIe Gen4 x42x PCIe Gen3 x4 +1x PCIe Gen3 x2 |
| Display | Module display interface Carrier output options Resolution |
| eDP | eDP eDP up to HBR33840 x 2160@120Hz |
| DDI 0/1/2 | DP up to HBR33840 x 2160@120Hz |
| DP up to HBR3 | 3840 x 2160@120Hz |
| DP up to HBR3 #2 | 3840 x 2160@120Hz |
| Security | TPM 2.0 |
| Dimension | 160 x 120mm |
| Power DC IN | Normal: +12V DC AT/ATX mode |
| MTBF | TBD |
| Vibration | TBD |
| Storage Temperature | -40 °C to 85 °C |
| Operating Temperature | 0 °C to 60 °C |
| Certification | Contact us |
| OS | Windows 10/11 Ubuntu |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Details |
|---|---|---|
| AB1-3R22 | PCOM-B885-R680E | add to list – PCOM-B885-R680E |
| AB1-3R23 | PCOM-B885-Q670E | add to list – PCOM-B885-Q670E |
| B9972080 | Cooler (1U / 95w) | add to list – Cooler (1U / 95w) |
| B9972100 | Cooler (2U / 125w) | add to list – Cooler (2U / 125w) |
| B723M670 | Cooler (backplate) | add to list – Cooler (backplate) |
| TBD | Heat Spreder (Heatpipe) | add to list – Heat Spreder (Heatpipe) |
| AB1-3L34Z | PCOM-C880 (ATX carrier board) | add to list – PCOM-C880 (ATX carrier board) |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| PCOM-B885 | BIOS 0.0.11 | 24.82 MB | download – PCOM-B885 | BIOS 0.0.11 |
| PCOM-B885 | EC 0.10 | 96.21 KB | download – PCOM-B885 | EC 0.10 |
| PCOM-B885 | User Manual R0.3 | 6.76 MB | download – PCOM-B885 | User Manual R0.3 |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 864.26 KB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| Portwell Engineering Toolkit [PET] 5.0.1 | Software | 11.97 MB | download – Portwell Engineering Toolkit [PET] 5.0.1 | Software |
| PCOM-B885 | Datasheet | 536.79 KB | download – PCOM-B885 | Datasheet |
