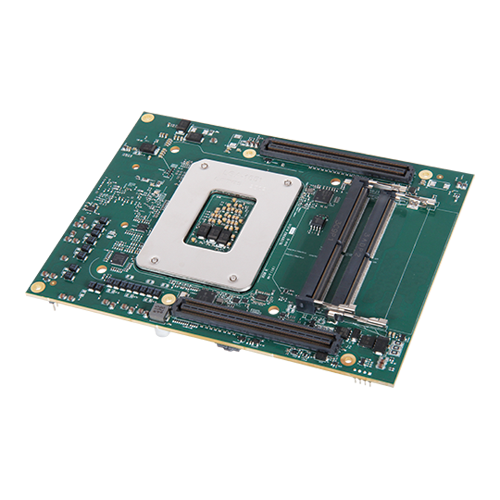

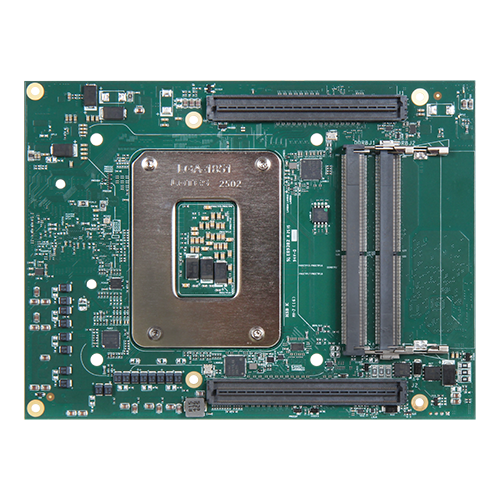

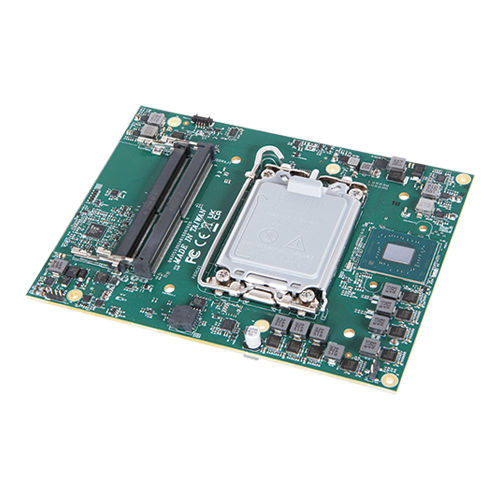

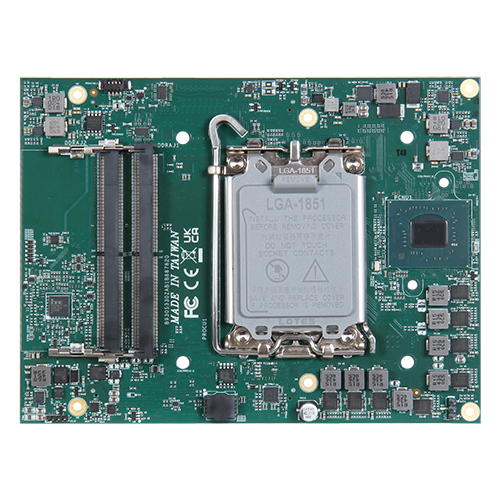

PCOM-B887
Intel® Core™ Ultra Series; 4x DDR5 C/SO-DIMM up to 192GB; PCIe Gen5x16, Gen5x4; USB4, 3x USB 3.2; 2x SATA, 3x DDI, eDP; AI NPU
- Intel ® CoreTM Ultra Series 200S socket CPU processor
- Support PCIe Gen5 x16, PCIe Gen5 x4, PCIe Gen4
- 4x DDR5 C/SO-DIMM up to 192GB 4800 MT/s
- 1x USB4, 3x USB 3.2, 2x SATA, 3x DDI, eDP
- Integrated NPU for dedicated AI acceleration
Platform Overview
About this series
Powered by Intel® Core™ Ultra Series 200S socket processors, this platform delivers high-performance computing with advanced AI acceleration through an integrated NPU. It supports PCIe Gen5 expansion, up to 192GB DDR5 memory, and versatile high-speed I/O including USB4, multiple display outputs, and rich connectivity options—making it ideal for next-generation edge computing and AI-driven applications.
specifications
Detailed Technical Specifications
Explore the complete technical specifications, available configurations and key features to determine whether this platform meets the requirements of your application.
| Form Factor | COM-HPC Client Size-C (160x120mm) |
|---|---|
| CPU | Ultra 9 285 Ultra 9 285T Ultra 7 265 Ultra 7 265T Ultra 5 245 Ultra 5 245T Ultra 5 225 Ultra 5 225T |
| Core/Thread | 8P + 16E/24T 8P + 16E/24T 8P + 12E/20T 8P + 12E/20T 6P + 8E/14T 6P + 8E/14T 6P + 4E/10T 6P + 4E/10T |
| Based Frequency | 2.5 1.4 2.4 1.5 3.5 2.2 3.3 2.5 |
| Turbo Frequency | 5.6 5.4 5.3 5.3 5.1 5.1 4.9 4.9 |
| Cache | 36 36 30 30 24 24 20 20 |
| TDP | 65 35 65 35 65 35 65 35 |
| Graphics EU | 64 64 64 64 48 48 32 32 |
| Graphics Max Freq. | TBD TBD TBD TBD TBD TBD TBD TBD |
| PCH | W880/Q870 W880/Q870 W880/Q870 W880/Q870 W880/Q870 W880/Q870 W880/Q870 W880/Q870 |
| Memory Type/Speed | 4x DDR5 SO-DIMM up to 192GB 4800MT/s4x DDR5 SO-DIMM up to 192GB 4800MT/s4x DDR5 SO-DIMM up to 192GB 4800MT/s4x DDR5 SO-DIMM up to 192GB 4800MT/s4x DDR5 SO-DIMM up to 192GB 4800MT/s4x DDR5 SO-DIMM up to 192GB 4800MT/s4x DDR5 SO-DIMM up to 192GB 4800MT/s4x DDR5 SO-DIMM up to 192GB 4800MT/s |
| ECC Memory Support | only with W880 only with W880 only with W880 only with W880 only with W880 only with W880 No Support No Support |
| Temperature Range | 0 ~ 60 °C (32.0 ~ 140.0 °F) 0 ~ 60 °C (32.0 ~ 140.0 °F) 0 ~ 60 °C (32.0 ~ 140.0 °F) 0 ~ 60 °C (32.0 ~ 140.0 °F) 0 ~ 60 °C (32.0 ~ 140.0 °F) 0 ~ 60 °C (32.0 ~ 140.0 °F) 0 ~ 60 °C (32.0 ~ 140.0 °F) 0 ~ 60 °C (32.0 ~ 140.0 °F) |
| BIOS | AMI BIOS |
| ECC | (ECC) |
| Memory | 4 x SO-DIMM DDR5 up to 192GB 5600 MT/s |
| SATA | 2 x SATA III |
| USB | 1 x USB43 x USB 3.2 Gen28 x USB 2.0 |
| Ethernet | 2 x 2.5 Gbe LAN |
| PCIe | 1 x Gen5 x161 x Gen5 x43 x Gen4 x41 x PCIe Gen4 x28 x PCIe Gen4 x1 |
| Legacy I/O | 12 x GPIO2 x I2C2 x UART1 x SMBus |
| Security | TPM 2.0 |
| Display | eDP eDP up to HBR33840 x 2160@120Hz DDI 1/2/3 DP up to HBR33840 x 2160@120Hz |
| Dimension | 160 mm x 120 mm (6.30” x 4.72”) |
| Operating Temperature | 0 ~ 60 °C (32.0 ~ 140.0 °F) |
| Storage Temperature | -40 ~ 85 °C (-40.0 ~ 185.0 °F) |
| Certification | FCC |
| OS | Windows 11, Ubuntu 20.04 |
| Portwell Special Feature | PET |
Choose Your Model
Find the Right Model for Your Project
Part numbers and model configurations of this series
| SKU | Model | Description | Details |
|---|---|---|---|
| AB1-3T65 | PCOM-B887-W880E | COM-HPC Client Module. Size C. | add to list – PCOM-B887-W880E |
| B9972080 | Cooler (1U) | B887 1U Cooler | add to list – Cooler (1U) |
| B9972100 | Cooler (2U) | B887 2U Cooler | add to list – Cooler (2U) |
| B723M670 | Cooler (backplate) | B887 Cooler backplate | add to list – Cooler (backplate) |
| AB1-3S83Z | PCOM-C881 | COM-HPC Carrier | add to list – PCOM-C881 |
downloads
Documents & Downloads
| Title | Size | Download |
|---|---|---|
| PCOM-B887 | BIOS 0.0.13 | 12.00 MB | download – PCOM-B887 | BIOS 0.0.13 |
| PCOM-B887 | BIOS 0.0.13 | 12.32 MB | download – PCOM-B887 | BIOS 0.0.13 |
| PCOM-B887 | EC 0.9 | 33.87 KB | download – PCOM-B887 | EC 0.9 |
| PCOM-B887 | EC 0.9 | 64.10 KB | download – PCOM-B887 | EC 0.9 |
| PCOM-B887 | Datasheet | 446.05 KB | download – PCOM-B887 | Datasheet |
| PCOM-B886 | Datasheet | 472.69 KB | download – PCOM-B886 | Datasheet |
